Test B: Memory Seat System Does Not Operate When Ignition Is In Position II & Handbrake Is Applied (Manual Transmission)

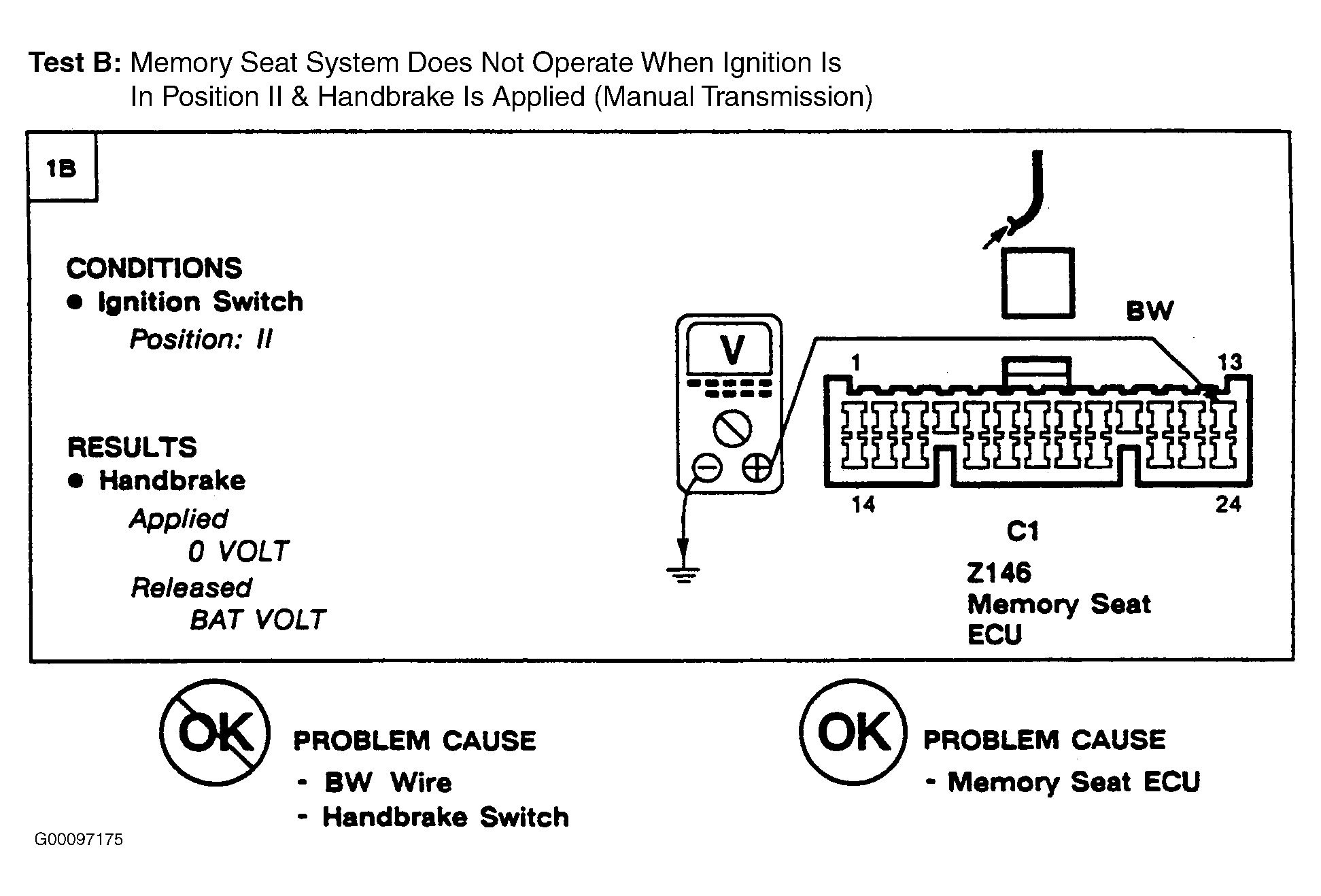

Fig 1: Test B: Memory Seat System Does Not Operate When Ignition Is In Position II Flow Chart (Manual Transmission)
G00097175Courtesy of LAND ROVER NORTH AMERICA, INC.
