Fault Finding
Fault Finding
NOTE:
For correct wiring installation, see
Figure
. If fault has not been located, repair by symptom. See
SYMPTOM INDEX
table under SYSTEM TESTS.

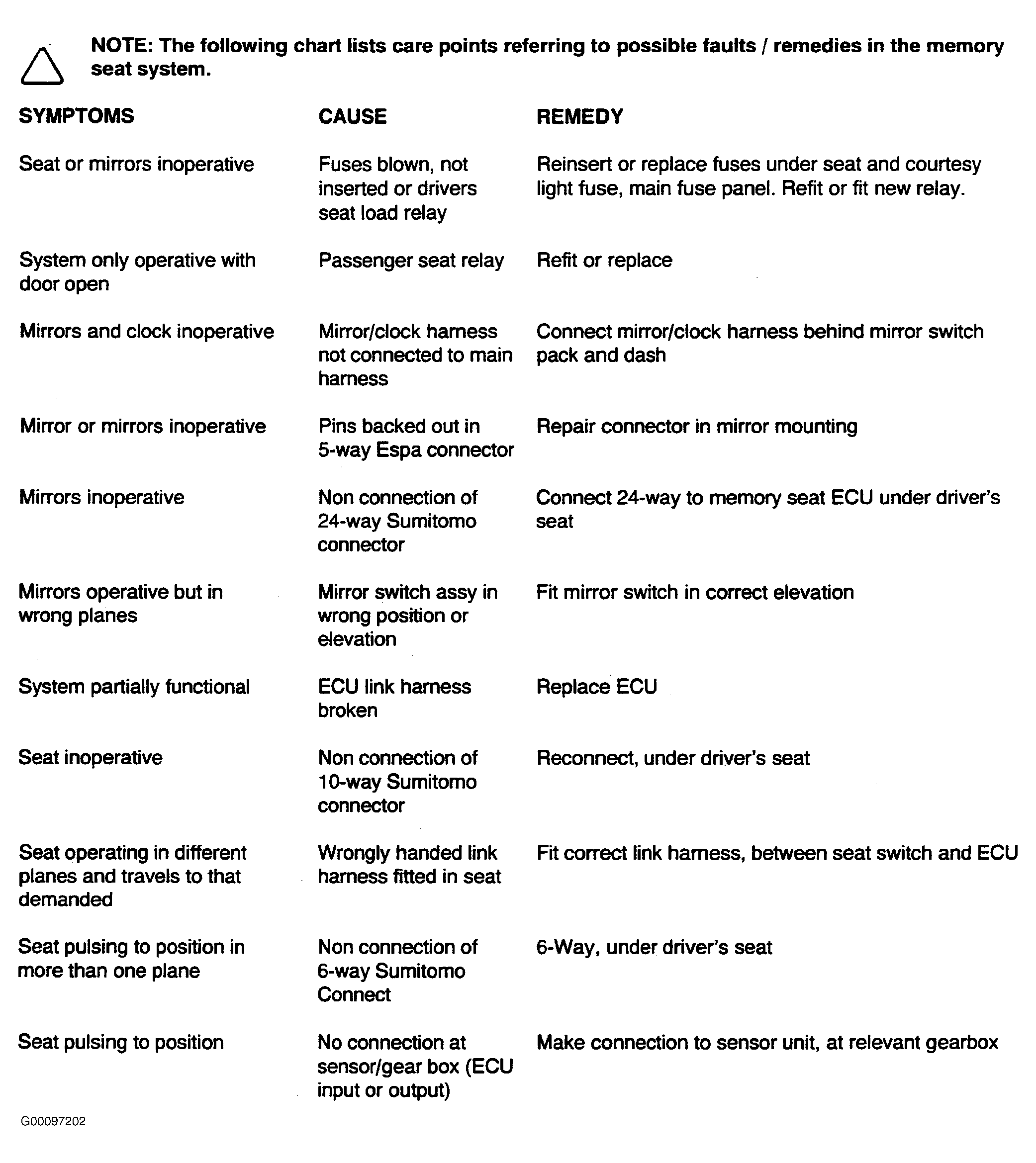

Fig 1: Memory Seat & Mirror System - Fault Finding Chart
Courtesy of LAND ROVER NORTH AMERICA, INC.
