Automatic Gear Selector Switch

For automatic gear selector switch testing, see Fig 1 and Fig 2 .

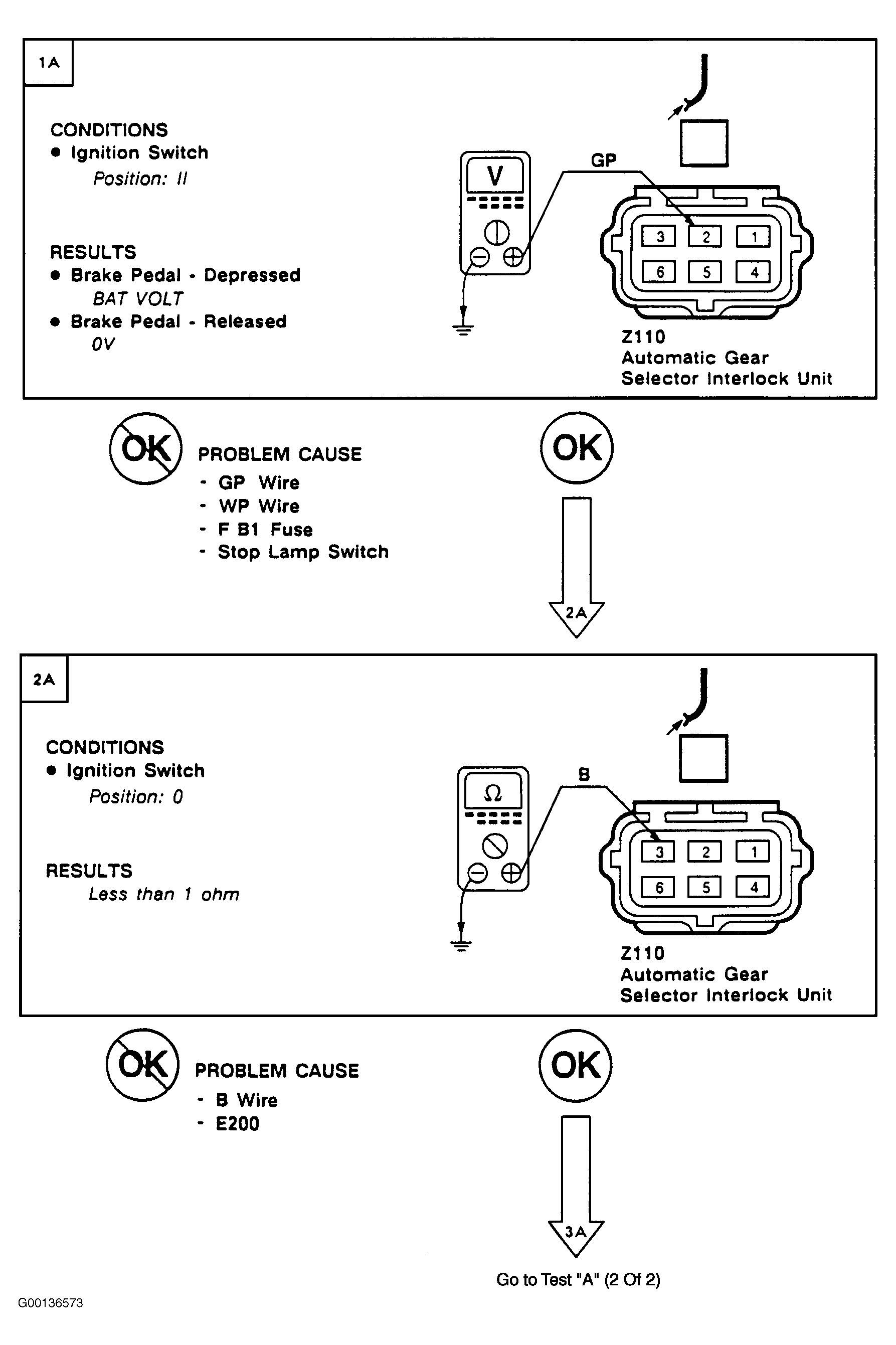

Fig 1: Automatic Gear Selector Switch Test "A" (1 Of 2)

Courtesy of LAND ROVER NORTH AMERICA, INC.

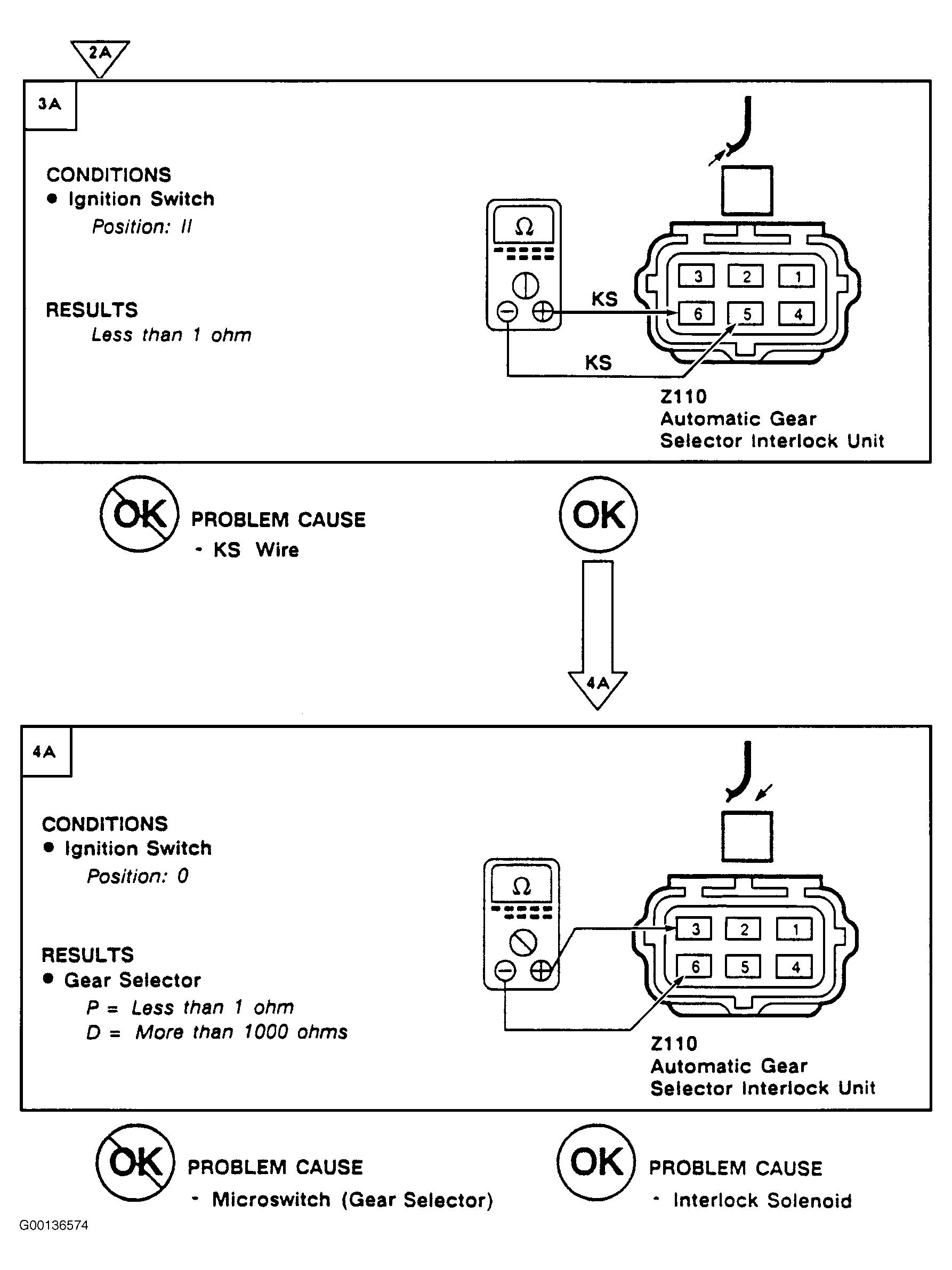

Fig 2: Automatic Gear Selector Switch Test "A" (2 Of 2)

Courtesy of LAND ROVER NORTH AMERICA, INC.
