Land Rover
>>
1994
>>
Defender 90
>>
Repair and Diagnosis
>>
Body & Frame
>>
Power Mirrors
>>
Wiring Diagrams
Wiring Diagrams

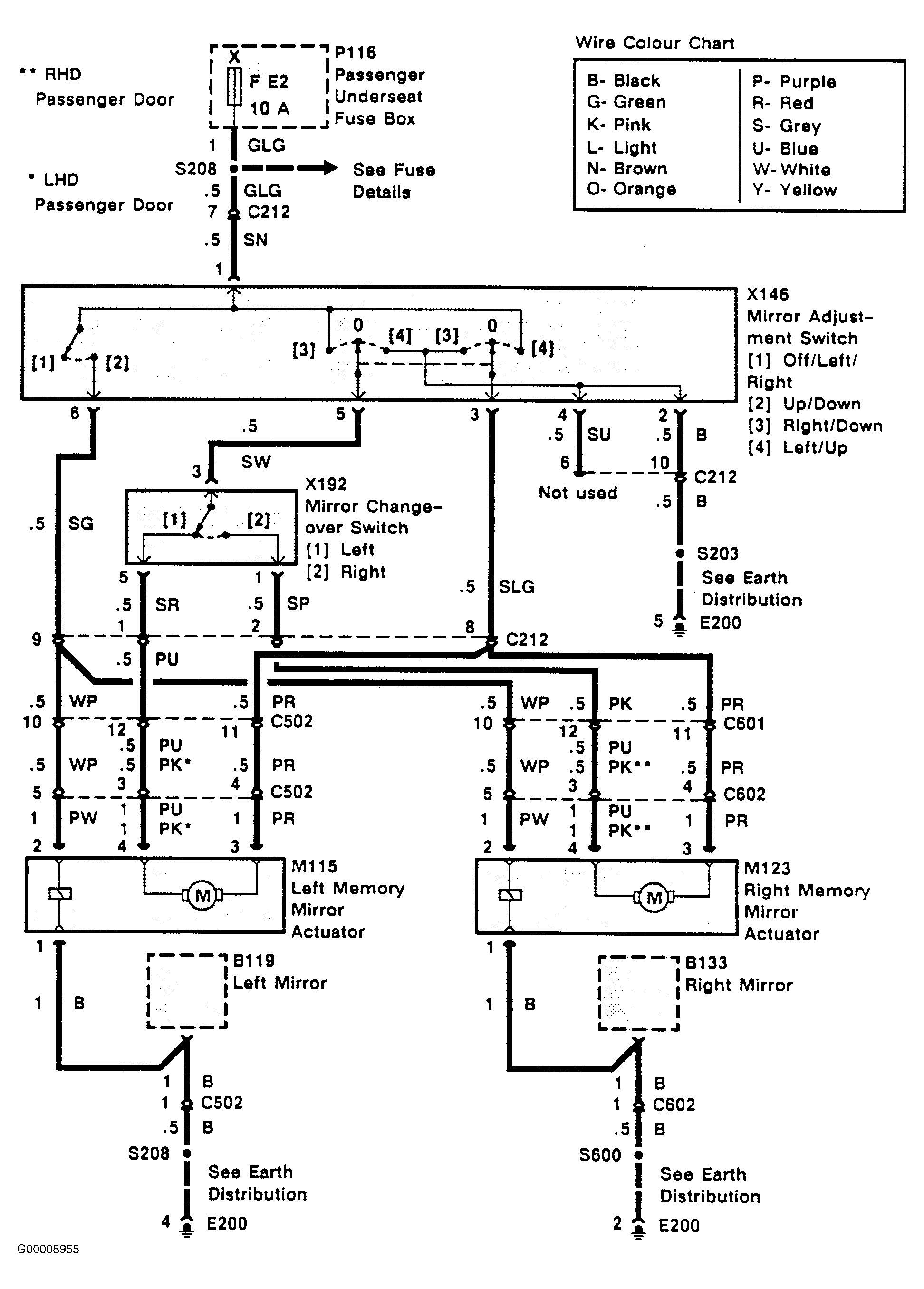

Fig 1: Power Mirrors Wiring Diagram
Courtesy of LAND ROVER NORTH AMERICA, INC.

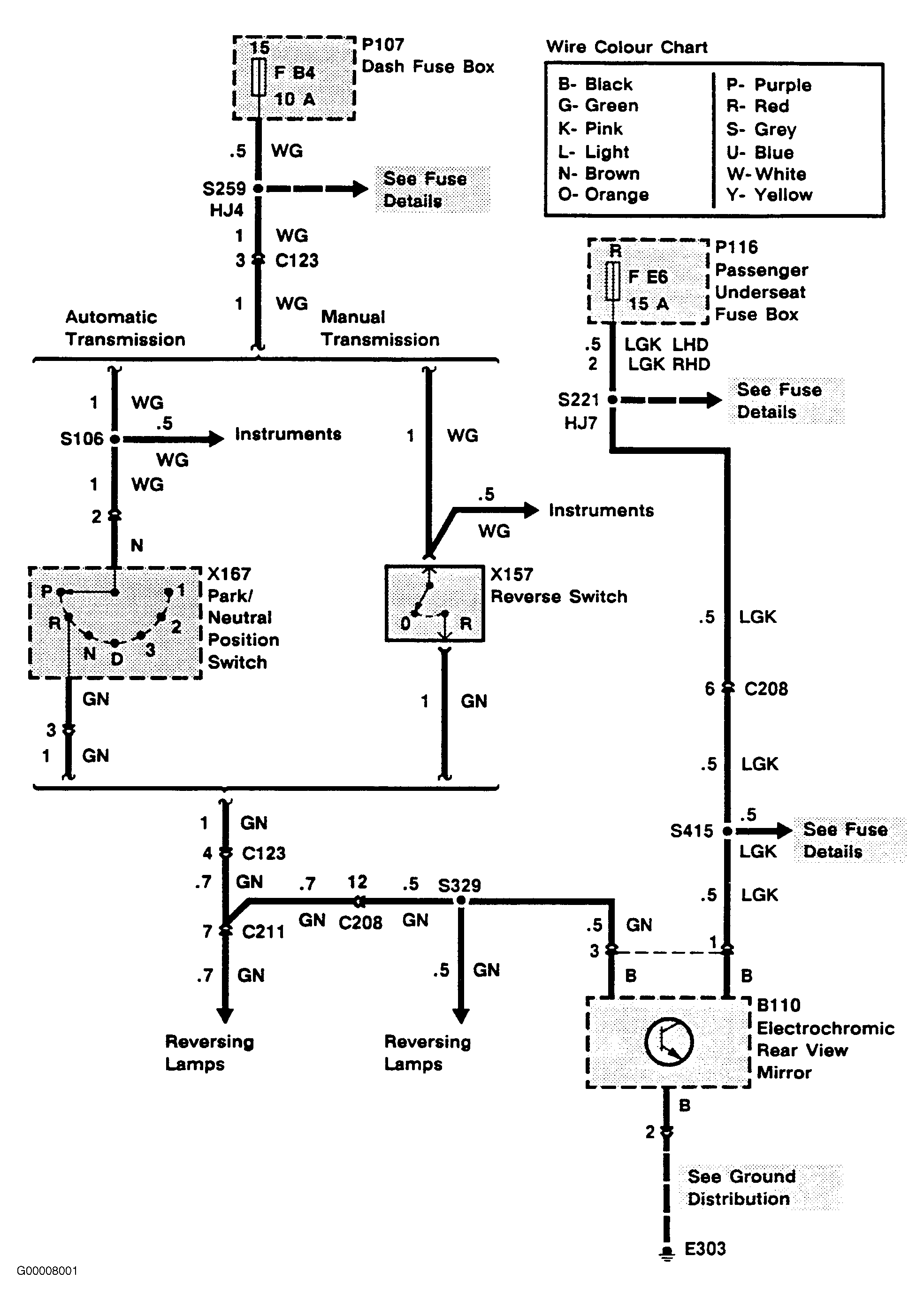

Fig 2: Electrochromic Mirror Wiring Diagram (1992)
Courtesy of LAND ROVER NORTH AMERICA, INC.

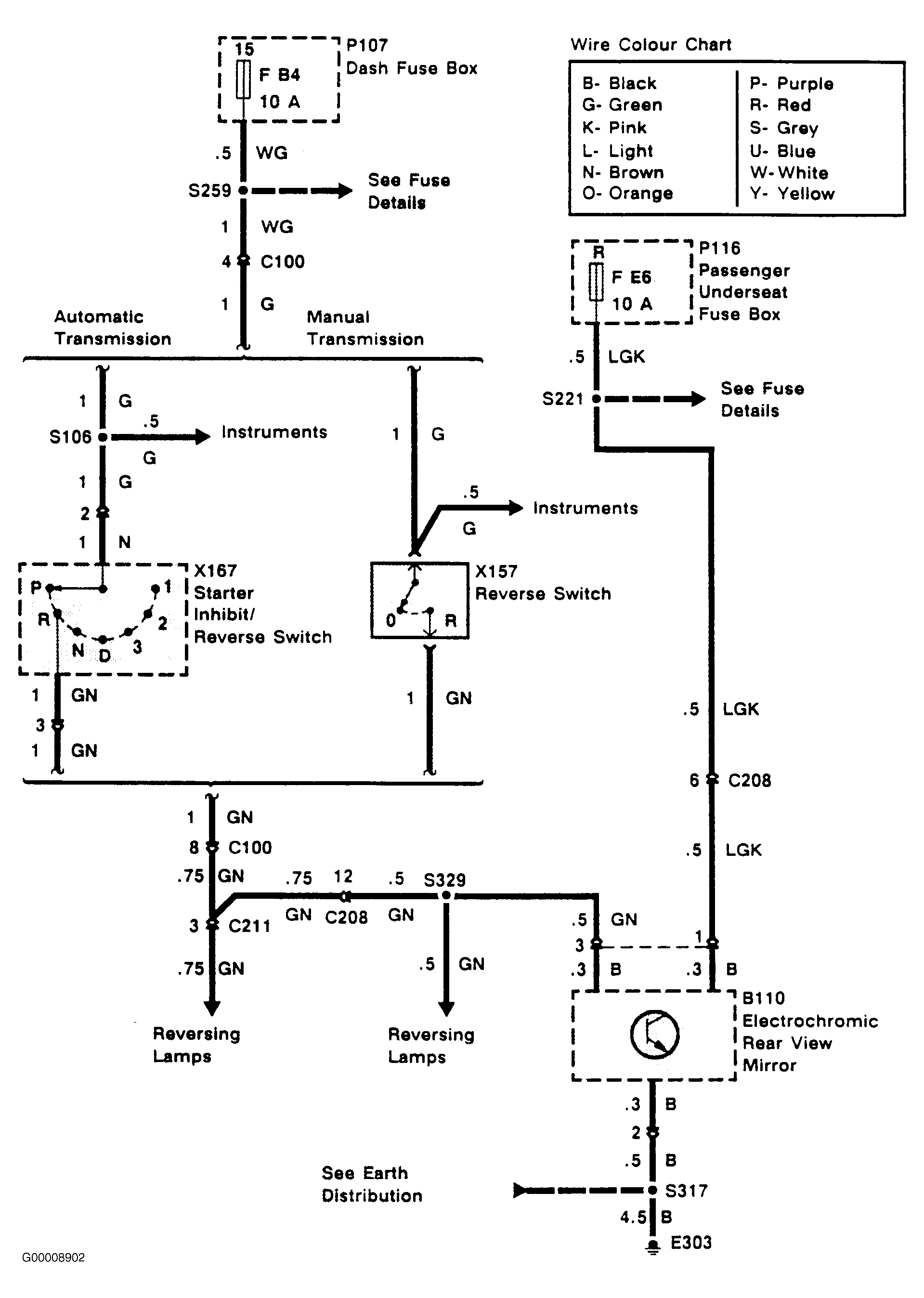

Fig 3: Electrochromic Mirror Wiring Diagram (1993-94)
Courtesy of LAND ROVER NORTH AMERICA, INC.
Courtesy of LAND ROVER NORTH AMERICA, INC.
Courtesy of LAND ROVER NORTH AMERICA, INC.
Courtesy of LAND ROVER NORTH AMERICA, INC.
