Wiring Diagrams

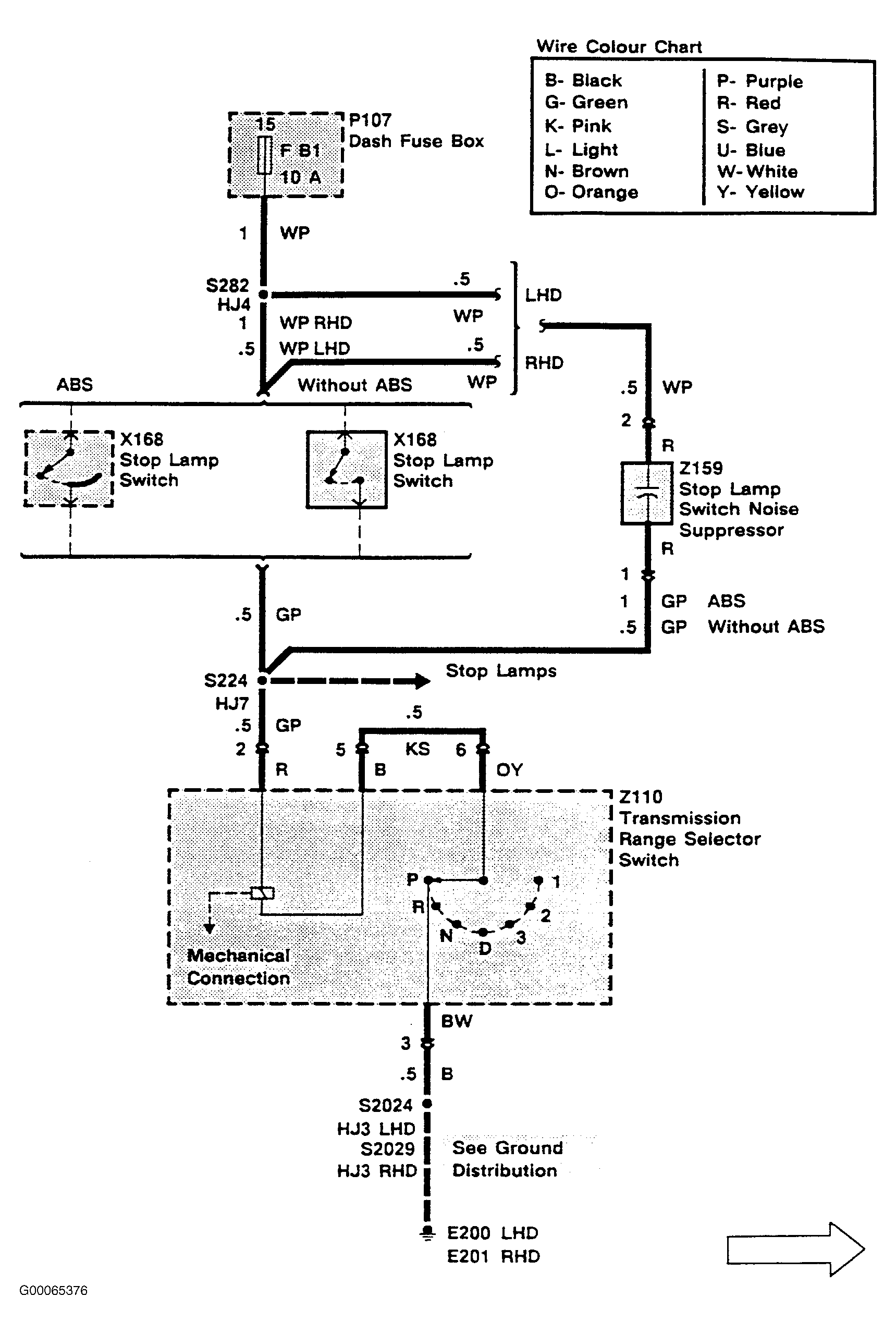

Fig 1: Wiring Diagrams (1 Of 3)

G00065376

Courtesy of LAND ROVER NORTH AMERICA, INC.

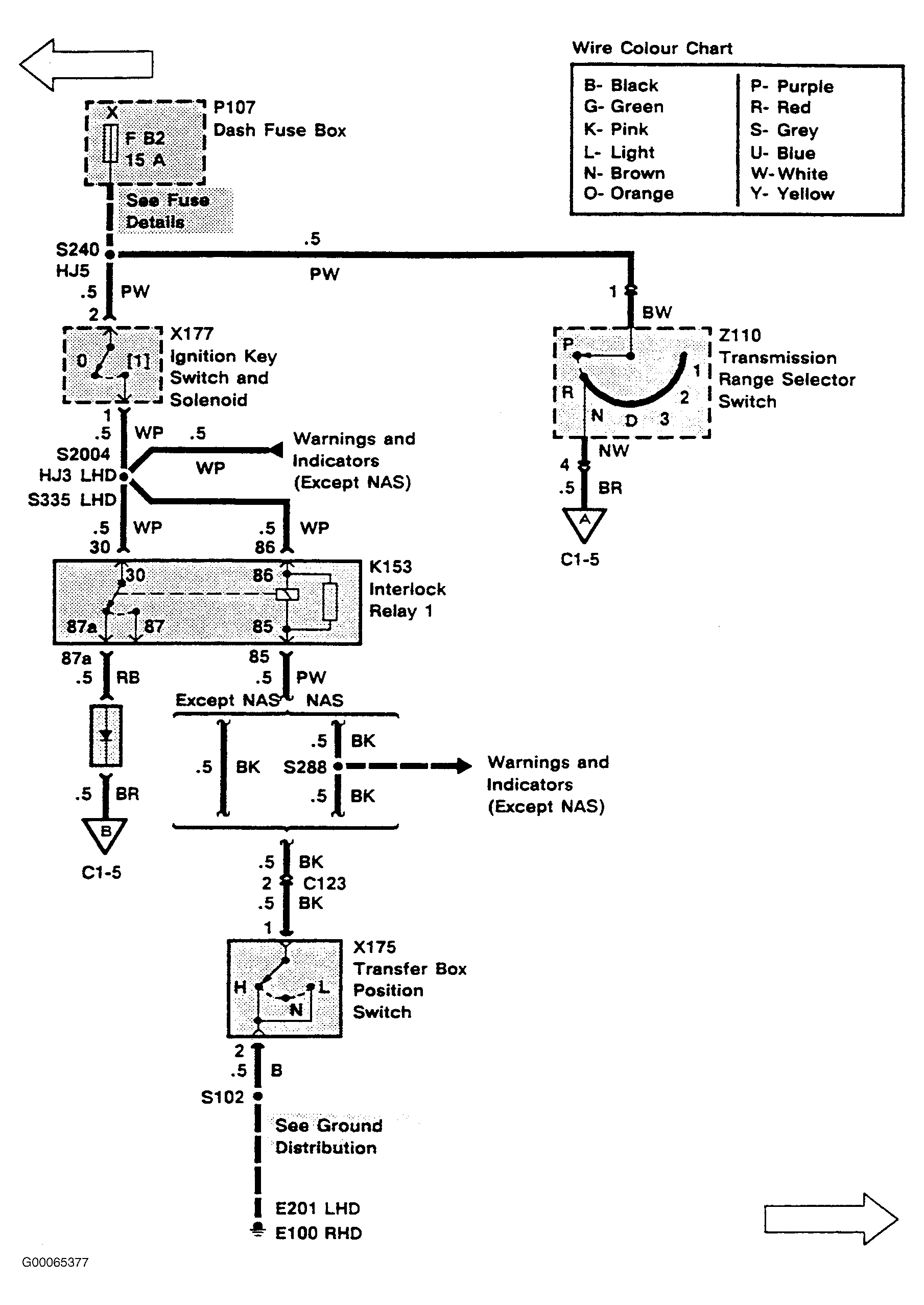

Fig 2: Wiring Diagrams (2 Of 3)

G00065377

Courtesy of LAND ROVER NORTH AMERICA, INC.

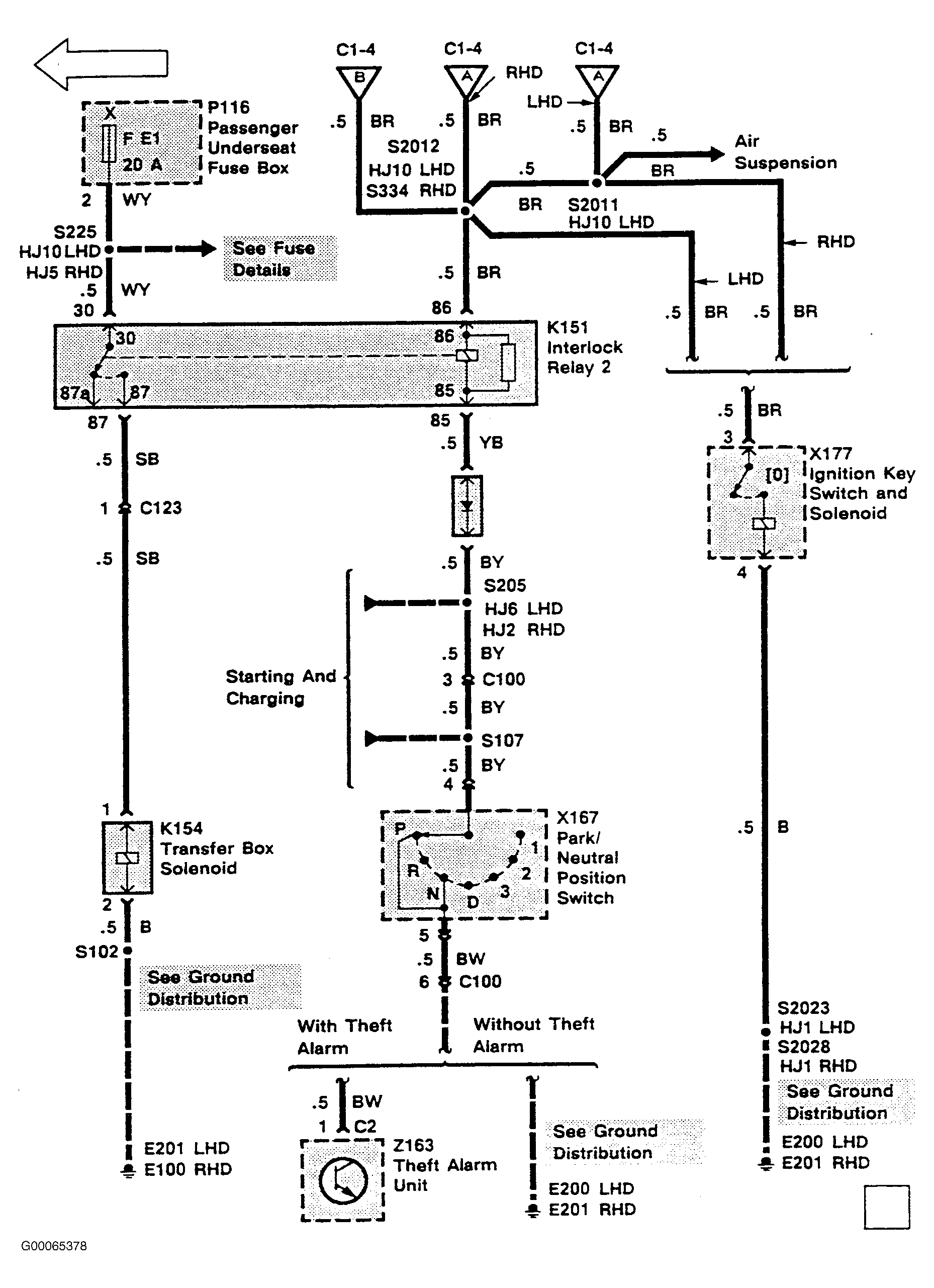

Fig 3: Wiring Diagrams (3 Of 3)

G00065378

Courtesy of LAND ROVER NORTH AMERICA, INC.
