Test J: Seat Motor Does Not Move At All During Self Test

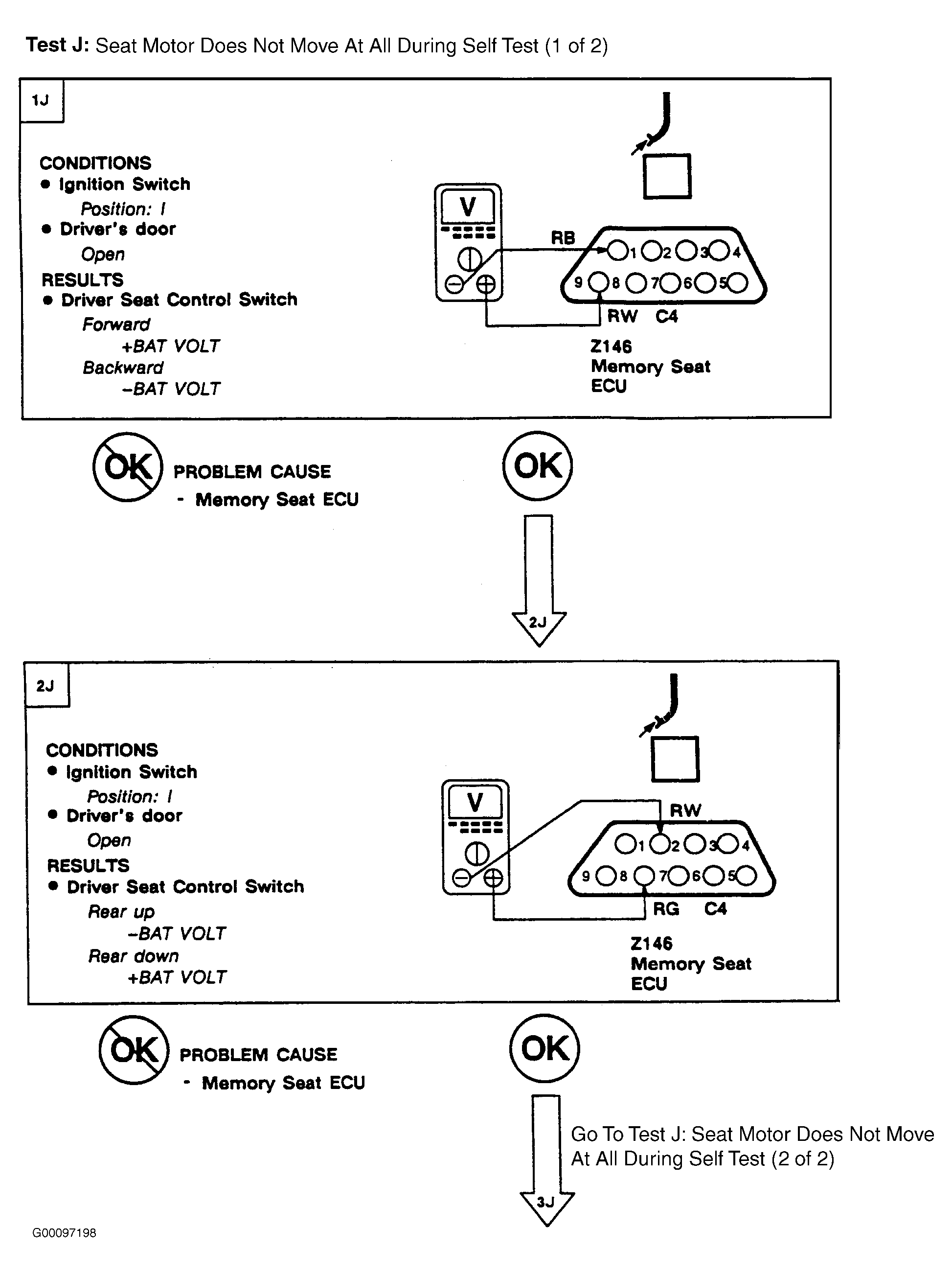

Fig 1: Test J: Seat Motor Does Not Move At All During Self Test Flow Chart (1 Of 2)

Courtesy of LAND ROVER NORTH AMERICA, INC.

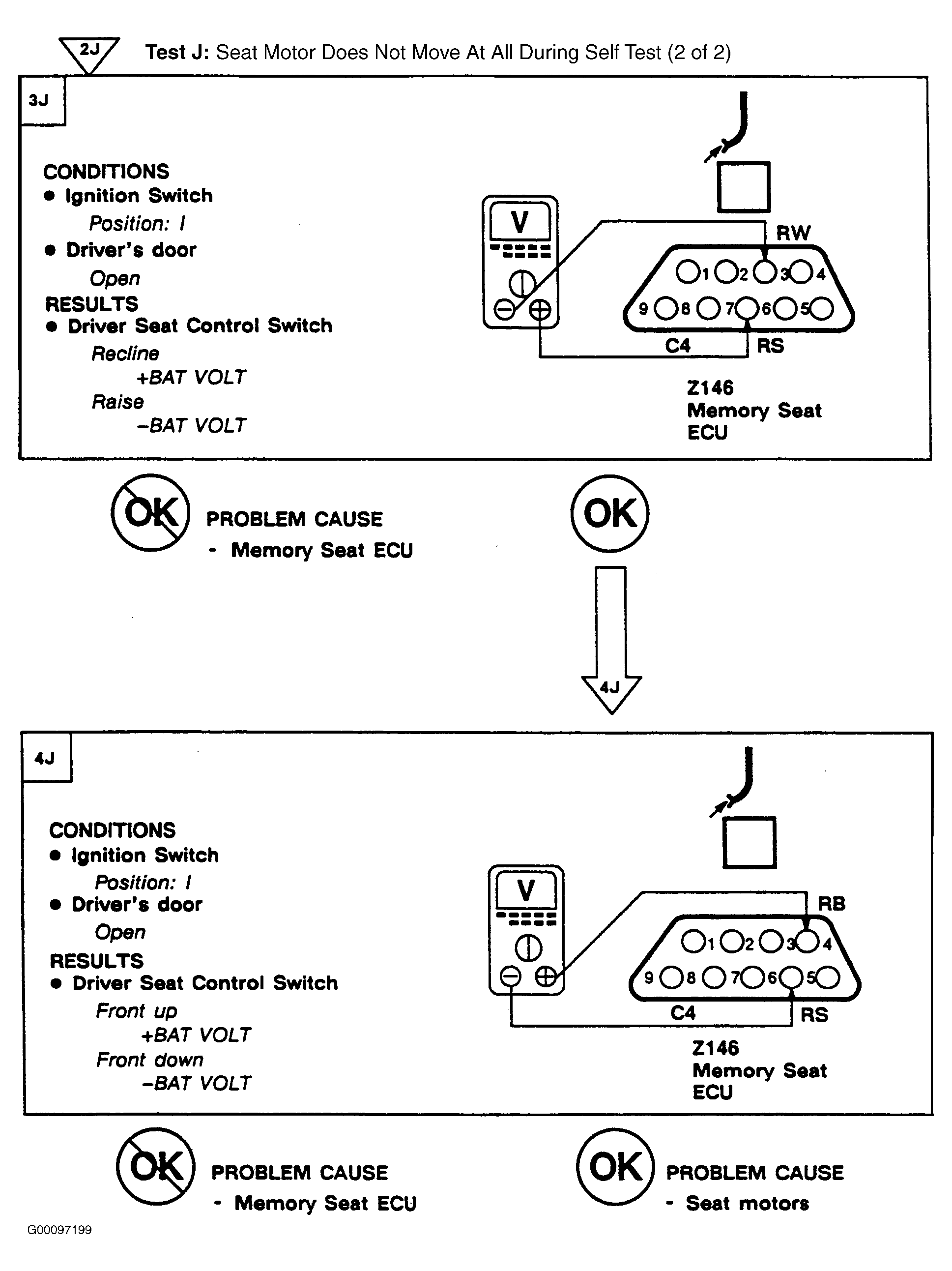

Fig 2: Test J: Seat Motor Does Not Move At All During Self Test Flow Chart (2 Of 2)

Courtesy of LAND ROVER NORTH AMERICA, INC.
