Test G: All Mirror Motors Operate During Self Test, But Not When Mirror Adjustment Switch Is Used

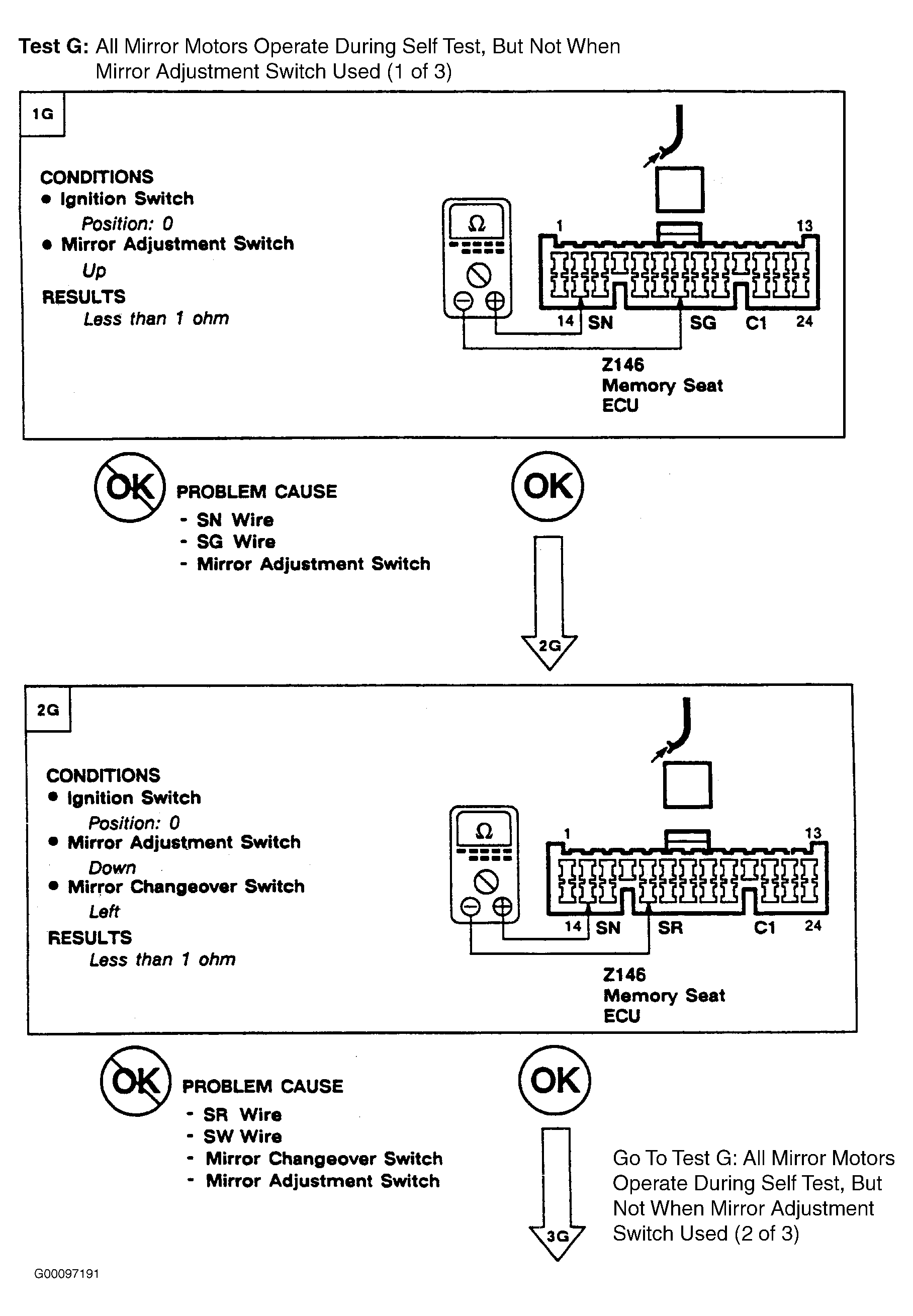

Fig 1: Test G: All Mirror Motors Operate During Self Test Flow Chart (1 Of 3)

Courtesy of LAND ROVER NORTH AMERICA, INC.

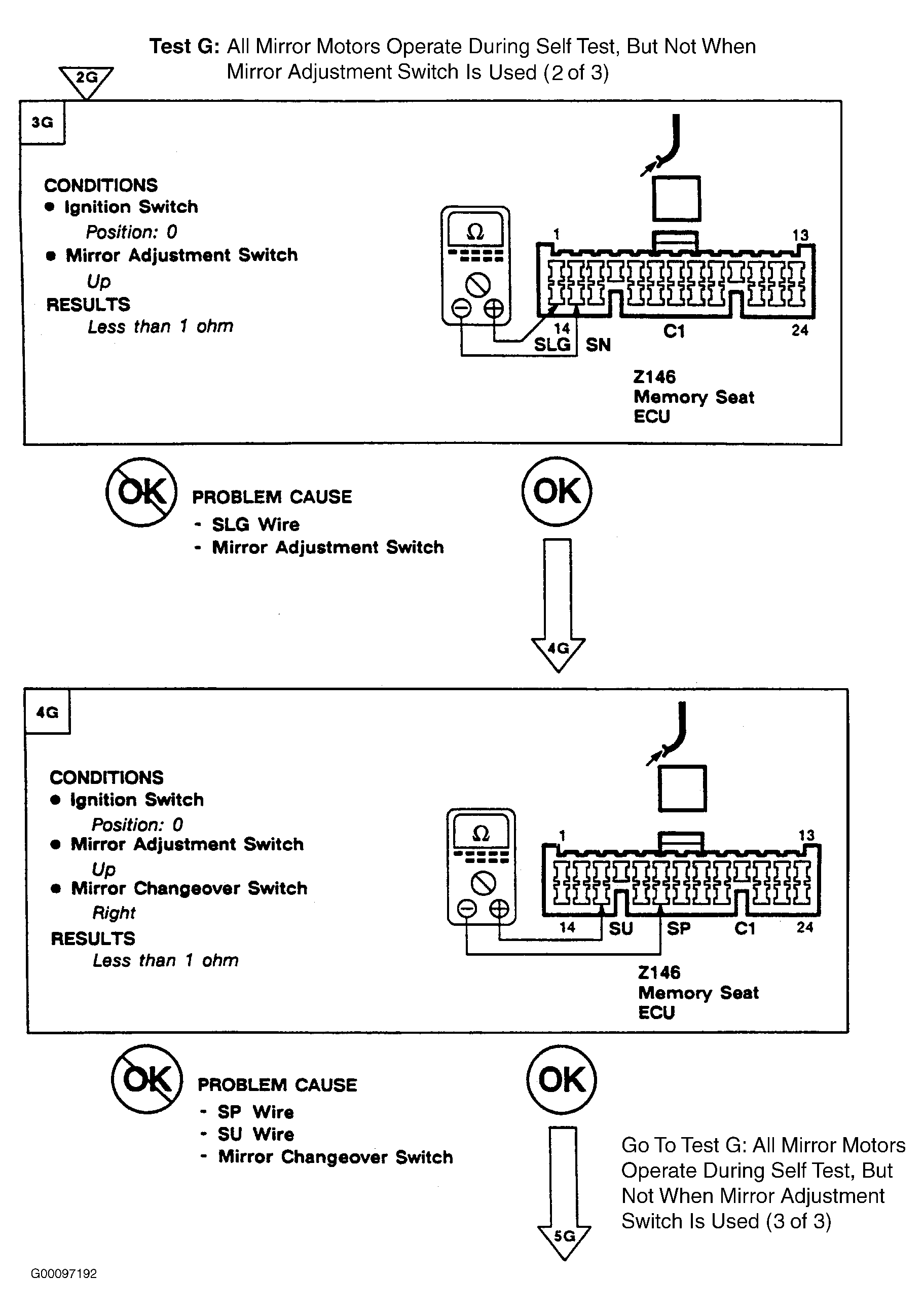

Fig 2: Test G: All Mirror Motors Operate During Self Test Flow Chart (2 Of 3)

Courtesy of LAND ROVER NORTH AMERICA, INC.

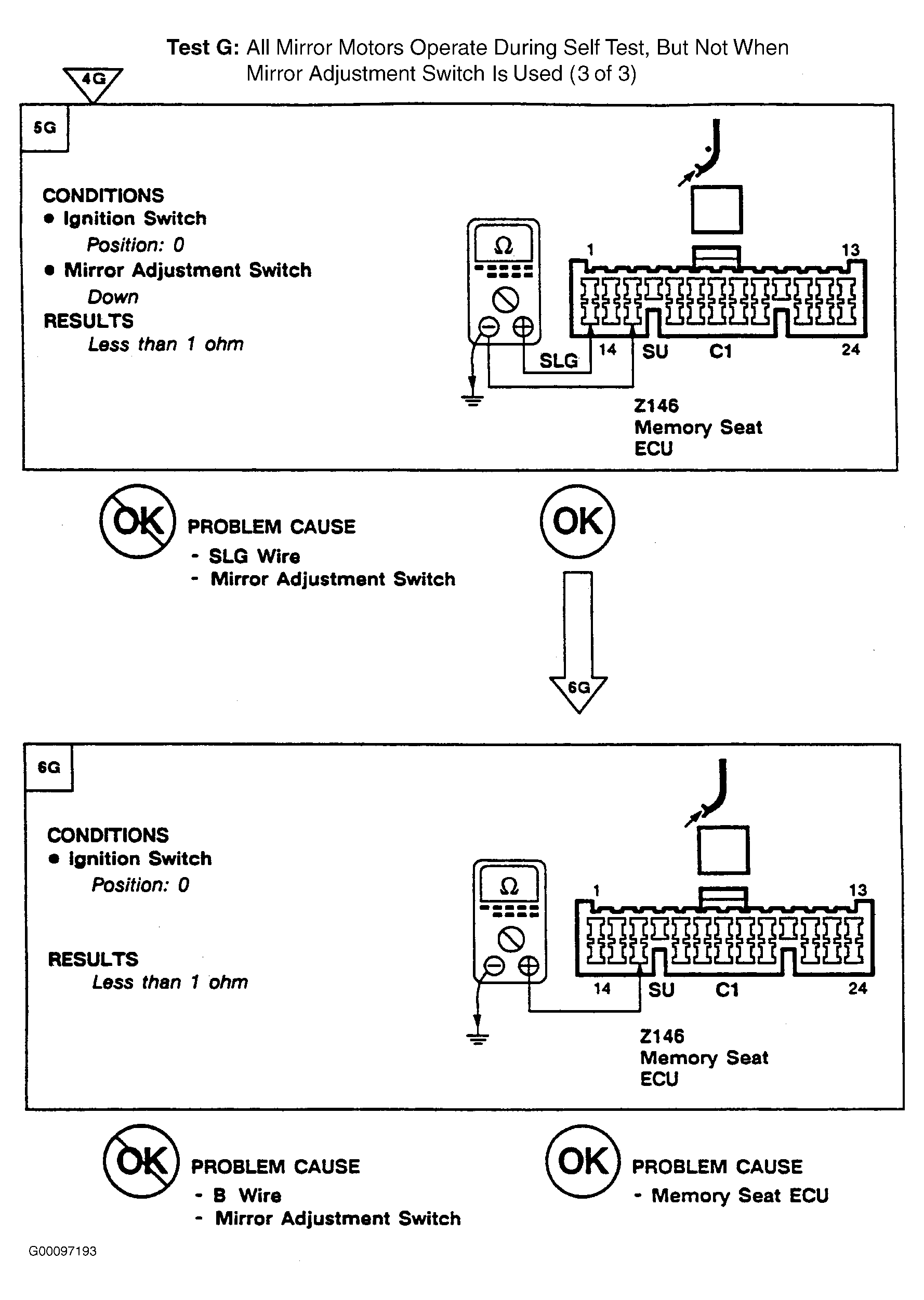

Fig 3: Test G: All Mirror Motors Operate During Self Test Flow Chart (3 Of 3)

Courtesy of LAND ROVER NORTH AMERICA, INC.
