Leveling Unit: Installation

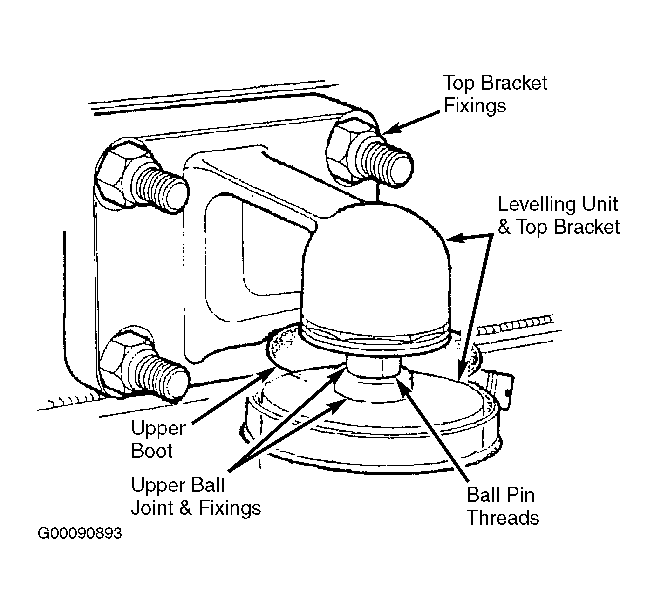

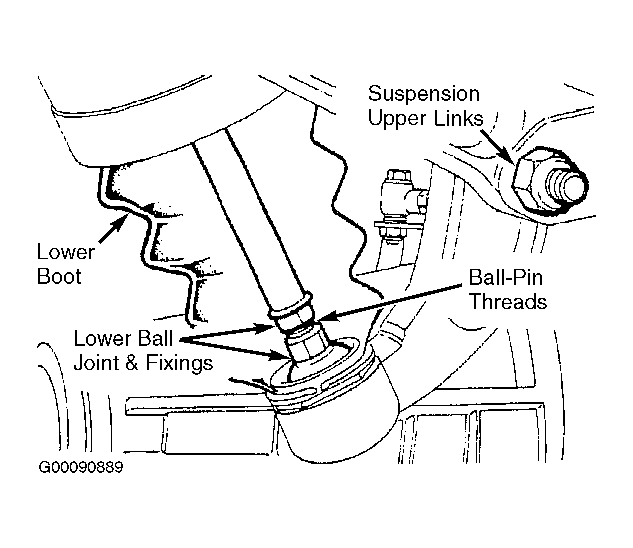

- Coat the ball pin threads with "Loctite" grade CVX or suitable equivalent sealant. See Figure and Figure .
- To complete installation, reverse removal procedure. Tighten all nuts and bolts to specification. See TORQUE SPECIFICATIONS .
NOTE:
Do not fully tighten the fixings until all items are in their fitted position. See Figure
and Figure
.
