Steering Wheel: Removal

  1. Disconnect the negative battery cable.
  2. Ensure the front wheels are in a straight ahead position to enable the steering wheel to be placed in its correct location on installation.
  3. Carefully ease the center trim pad off the steering wheel. See Fig 1 .
  4. Disconnect the cruise control electrical multi-plug located in the small opening below the center retaining nut.
  5. While holding the steering wheel, remove the retaining nut and serrated washer.
  6. Remove the steering wheel using steering wheel remover (18G1014). Ensure the extractor pins are inserted in the threads up to shoulder of the pins.

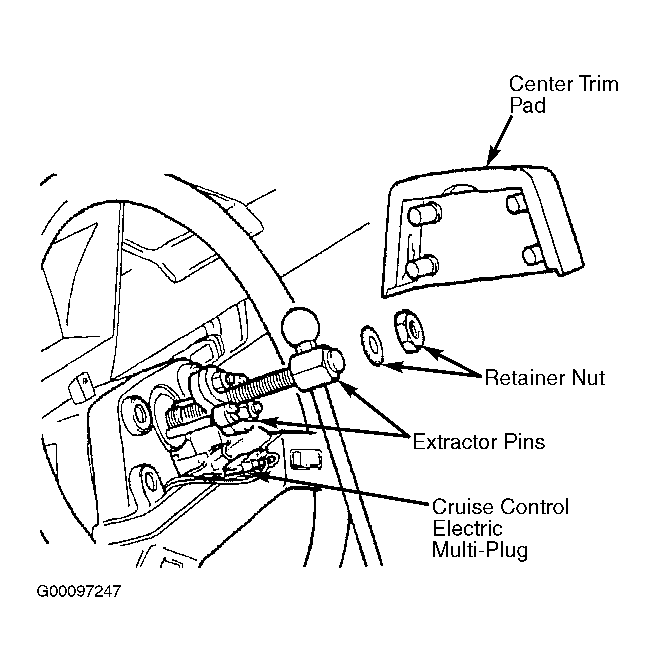

Fig 1: Removing Steering Wheel
G00097247Courtesy of LAND ROVER NORTH AMERICA, INC.
