Removal & Installation

Disconnect the battery negative lead.
Remove 3 screws, securing undertray to spoiler. See Fig 1 .
Remove 2 screws, one each side, securing rear of undertray to chassis mounting brackets. See Fig 1 .
Remove undertray by flexing to clear rear mountings. See Fig 1 .
Removal of one or both rear mounting brackets may be necessary. For example when removing steering box. Remove nut and washer from chassis bolt. See Fig 1 .
Withdraw under-tray mounting bracket. See Fig 1 .
To install, reverse removal procedure.

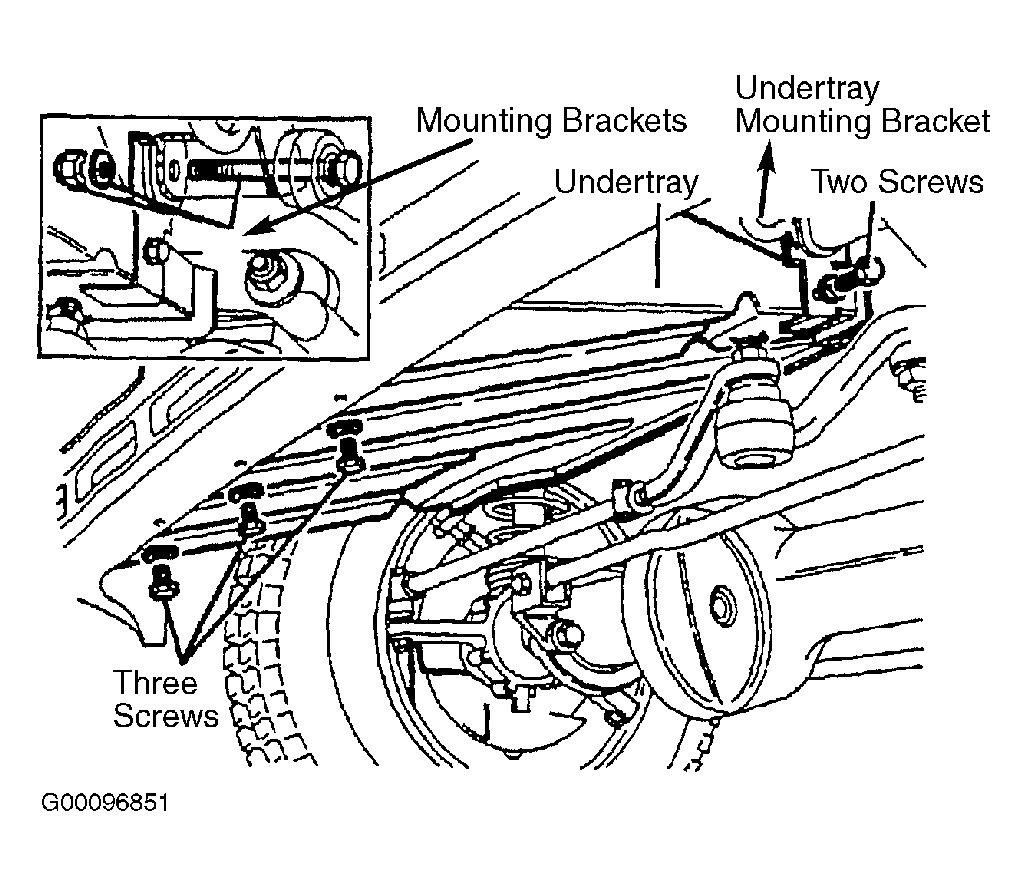

Fig 1: Removing Undertray

Courtesy of LAND ROVER NORTH AMERICA, INC.
