Inspection (Sector Shaft Assembly)

  1. Check there is no side play on roller.
  2. If side play on roller exists fit a new sector shaft.
  3. Check condition of adjuster screw threads. See Fig 1 .

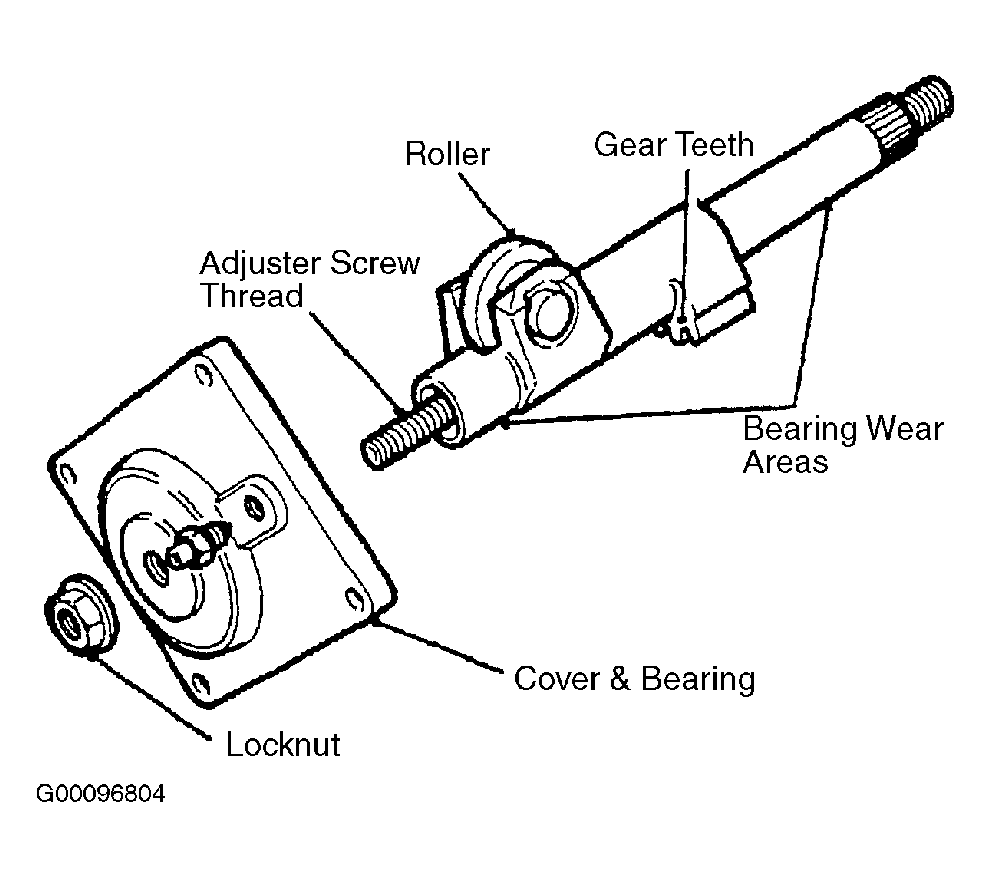

    Fig 1: Inspecting Sector Shaft Assembly
    G00096804Courtesy of LAND ROVER NORTH AMERICA, INC.
  4. Check adjuster end float. Install new adjuster if end float exceeds 0.15 mm (0.006"). See Fig 1 .
  5. Examine bearing areas on shaft for excessive wear. See Fig 1 .
  6. Examine gear teeth for uneven or excessive wear. See Fig 1 .
