Pump & Regulator Valve: Notes

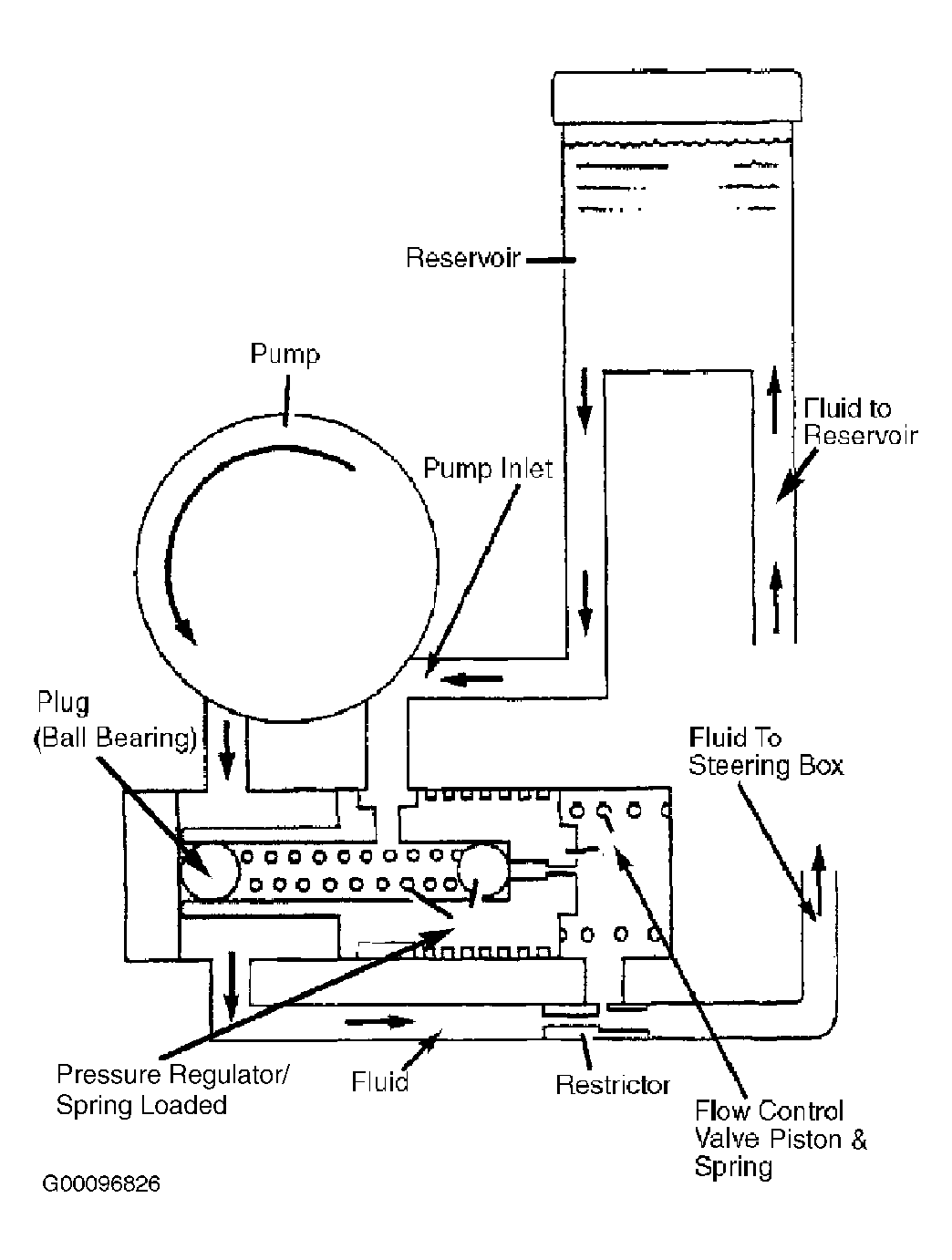

The pump, which is belt driven from the engine, is an eccentric roller type and also houses the pressure regulator and flow control valve. The pressure is controlled by a spring loaded ball valve which is housed inside the flow control valve piston. See Figure .
