Intake Manifold: Installation

  1. Apply a globule of Hylomar (SQ32M) sealing compound, or equivalent, to notches formed between cylinder head and block. See Figure.

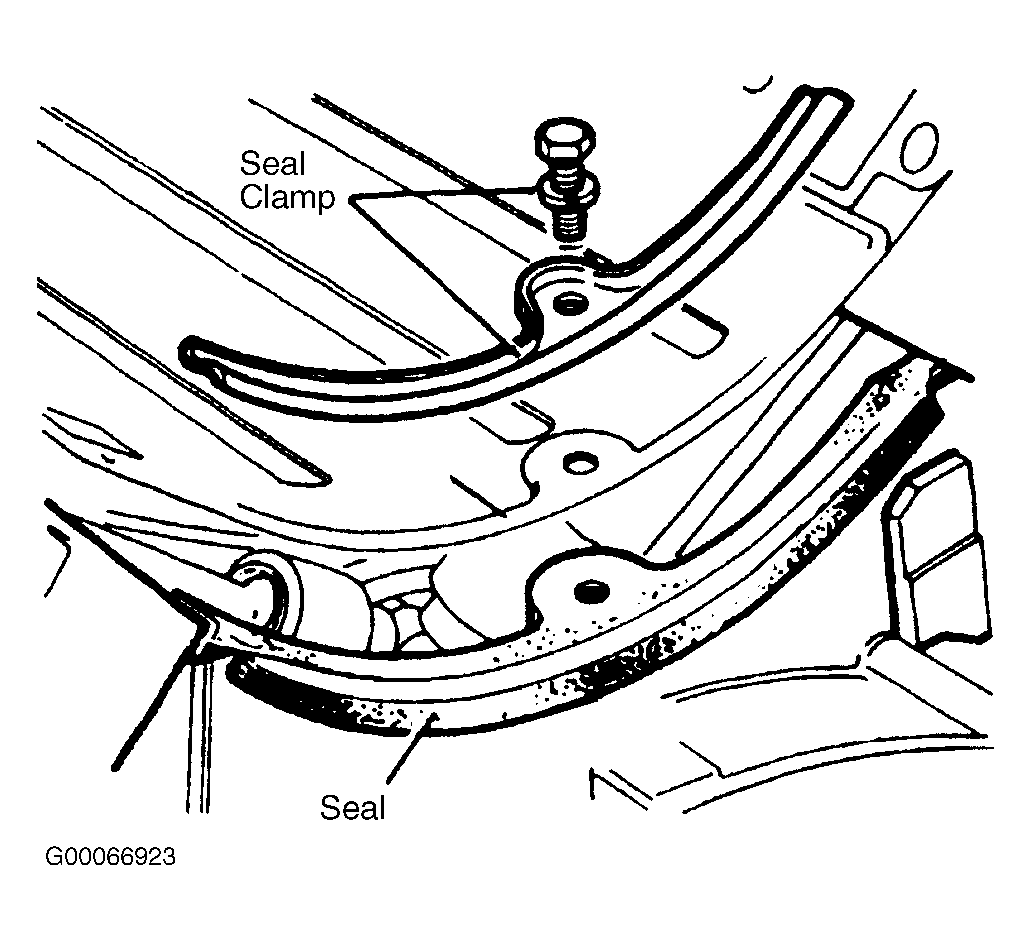

  2. Locate NEW seals in position with their ends engaged in notches formed between cylinder heads and block. See Figure.

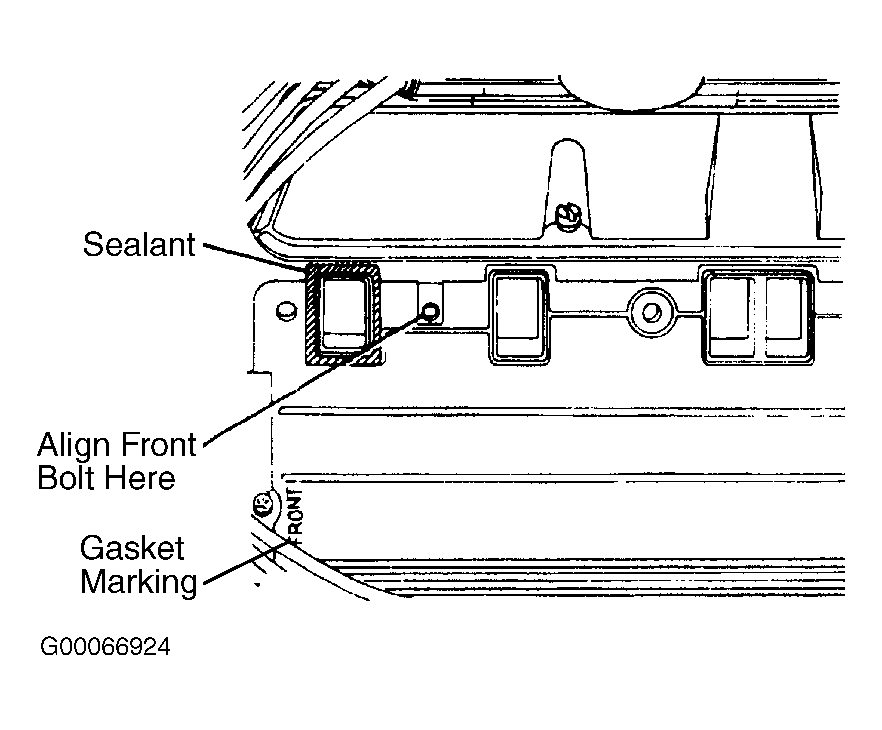

  3. Apply Hylomar (SQ32M) sealing compound, or equivalent, on corners of cylinder head, manifold gasket and manifold, around water passage joints. See Figure.
  4. Fit manifold gasket with "FRONT" to front and open bolt hole at right front side. See Figure.
  5. Fit gasket clamps but do not fully tighten bolts at this stage.
  6. Locate manifold on to cylinder head.
  7. Clean threads of manifold securing bolts.

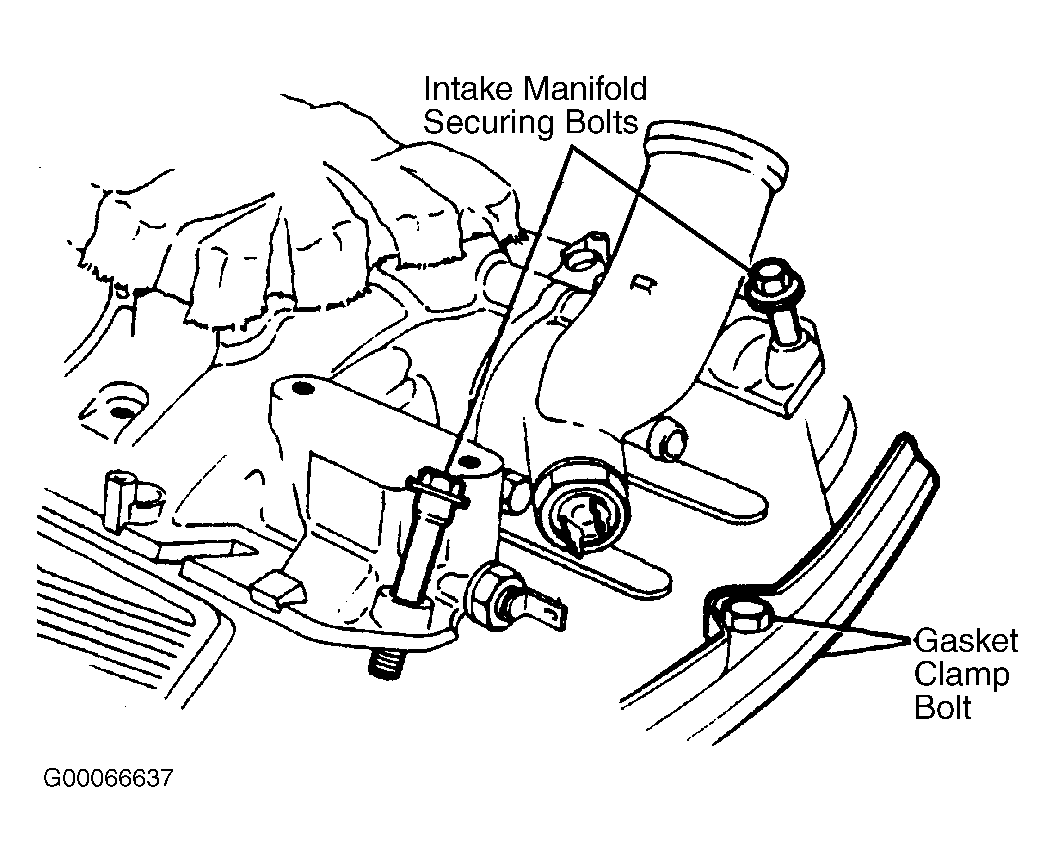

  8. Fit all manifold bolts and tighten them a little at a time, evenly, alternate sides working from center to each end and finally tighten to 40 N.m (30 ft. lbs.). See Figure.
  9. Tighten gasket clamp bolts to 18 N.m (13 ft. lbs.). See Figure.
