Wiring Diagrams

NOTE: To identify manufacturer wire colors, see WIRE COLOR IDENTIFICATION table.

WIRE COLOR IDENTIFICATION

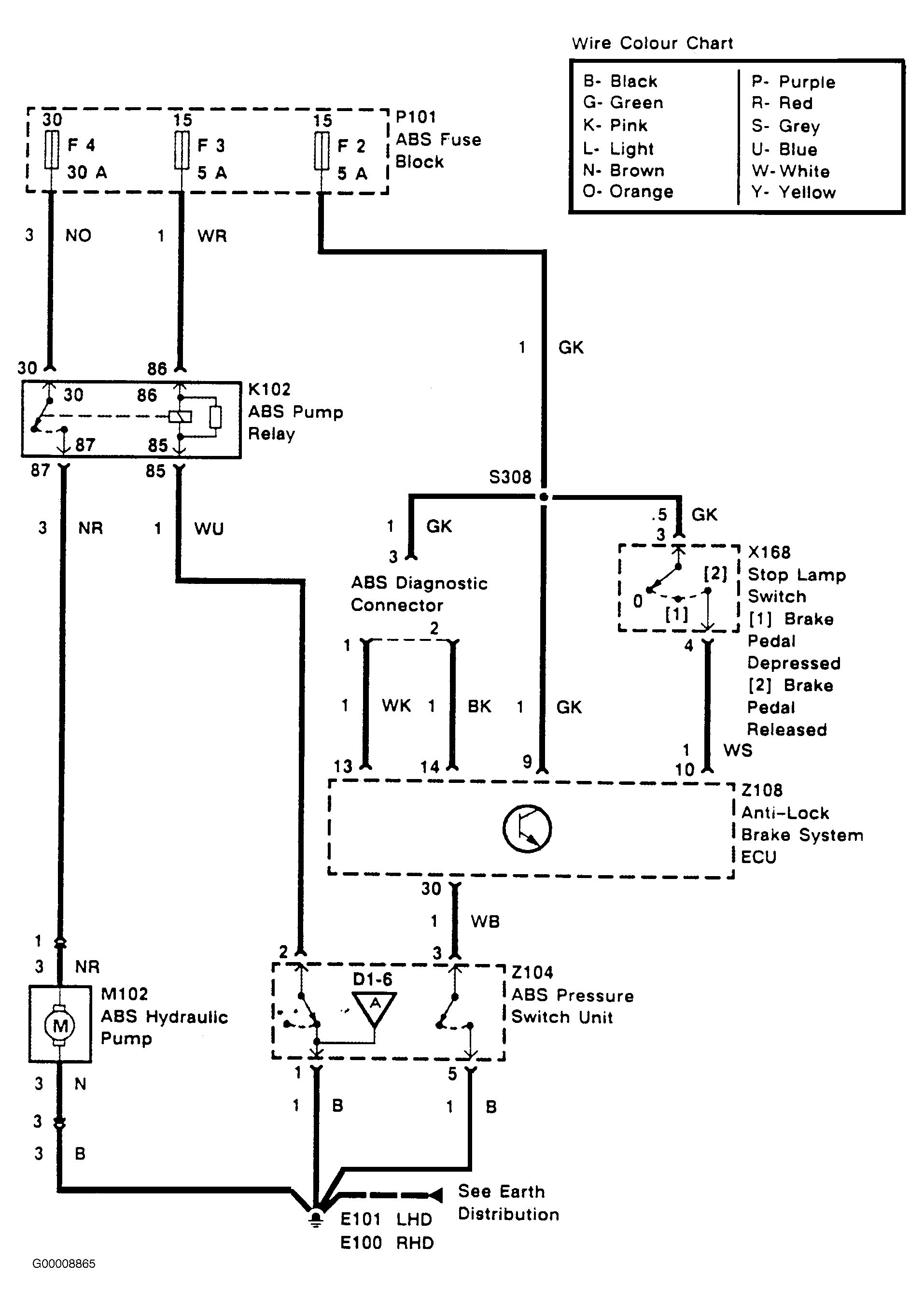

Fig 1: Anti-Lock Brake System Wiring Diagram (1 Of 4)

Courtesy of LAND ROVER NORTH AMERICA, INC.

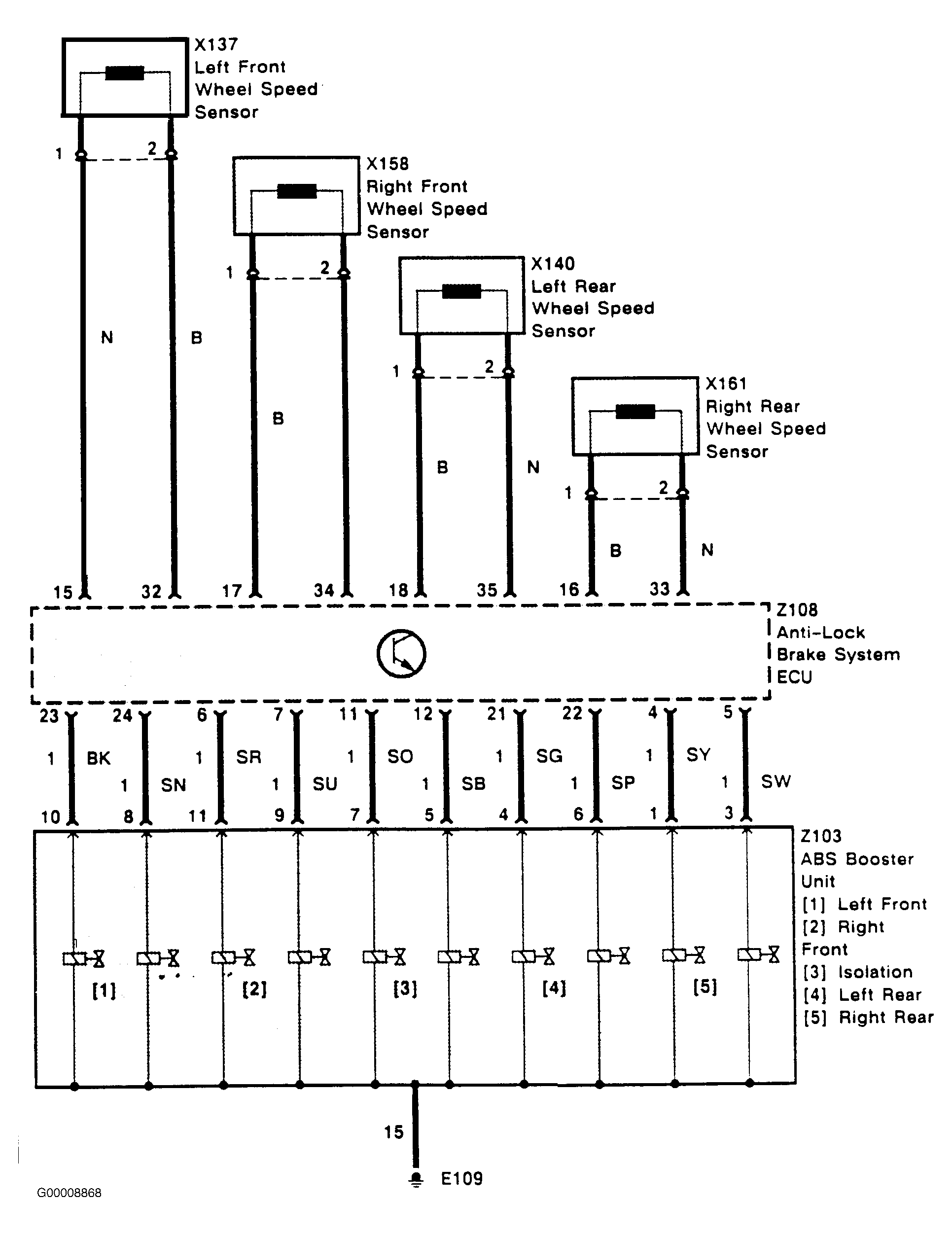

Fig 2: Anti-Lock Brake System Wiring Diagram (2 Of 4)

Courtesy of LAND ROVER NORTH AMERICA, INC.

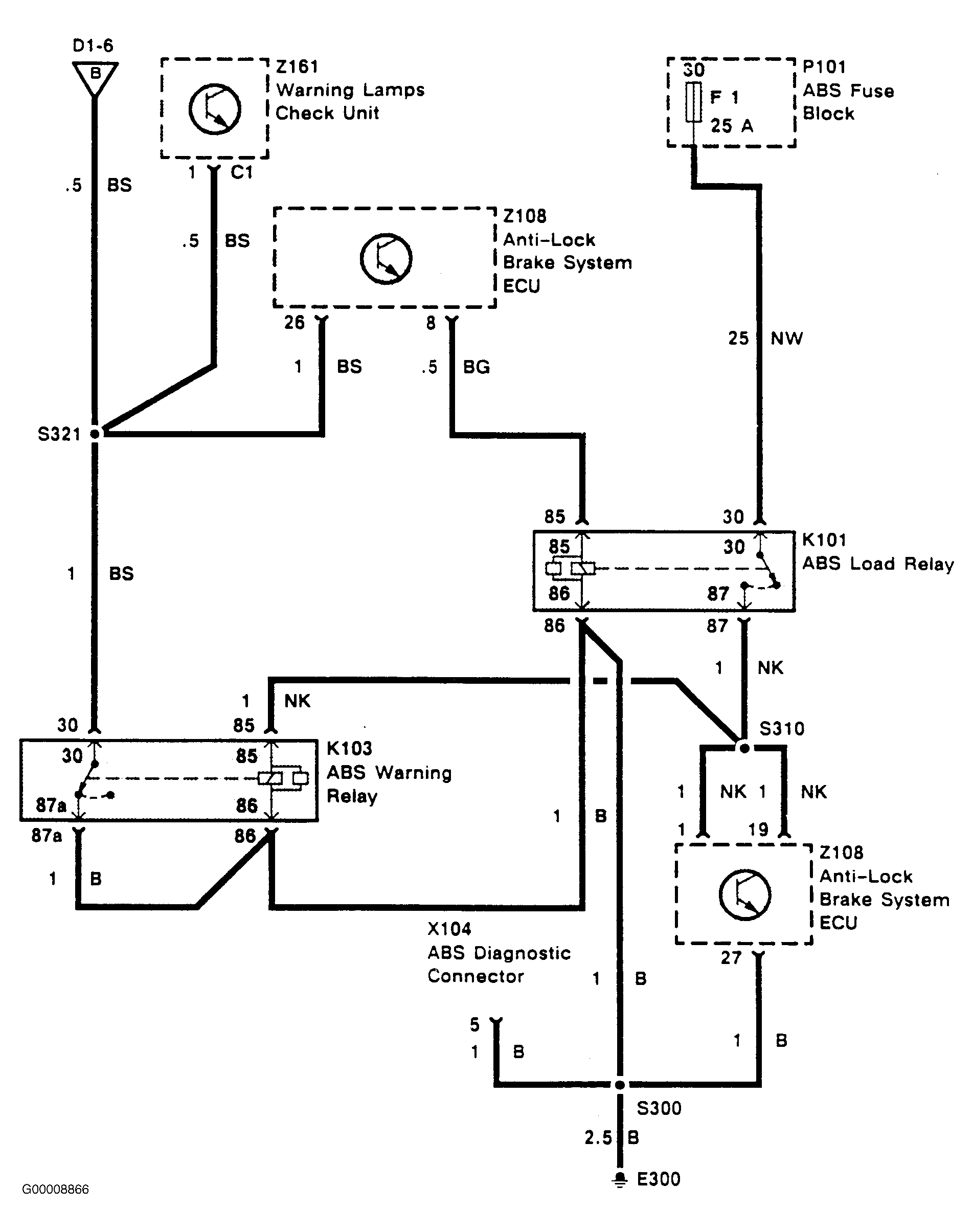

Fig 3: Anti-Lock Brake System Wiring Diagram (3 Of 4)

Courtesy of LAND ROVER NORTH AMERICA, INC.

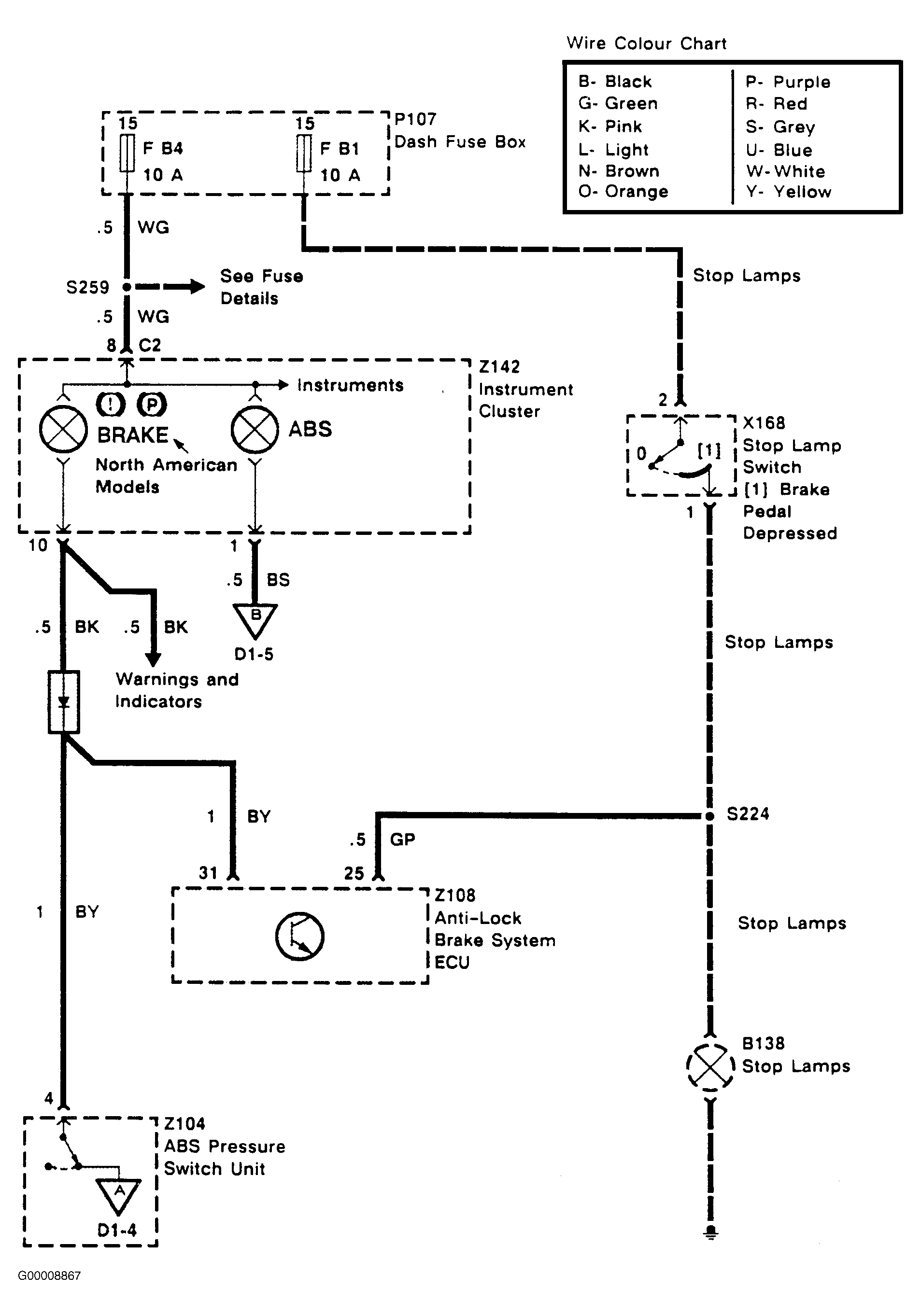

Fig 4: Anti-Lock Brake System Wiring Diagram (4 Of 4)

Courtesy of LAND ROVER NORTH AMERICA, INC.
