Throttle Cable

Ensure throttle lever is against stop in closed position. Rotate thumbwheel clockwise until all slack is removed (throttle lever should be about to lift from stop). See Fig 1 . Back off thumbwheel about 1/4 turn. Check cruise control cable adjustment. See CRUISE CONTROL CABLE.

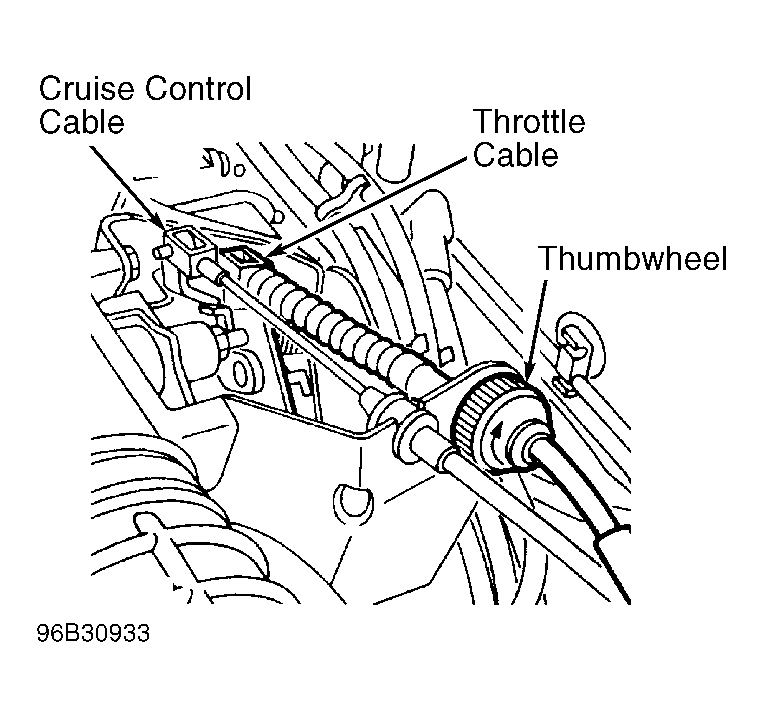

Fig 1: Adjusting Throttle Cable

Courtesy of LAND ROVER NORTH AMERICA, INC.
