Drop Arm: Installation

  1. Centralize steering box by rotating steering wheel to full inner right lock. Turn steering wheel back exactly 2 full turns.
  2. Install drop arm, align master splines.
  3. Install a new tab washer and drop arm fixing. Tighten to 130 ft. lbs. (176 N.m). Bend over tab.
  4. Install drag link, and tighten to 30 ft. lbs. (40 N.m).

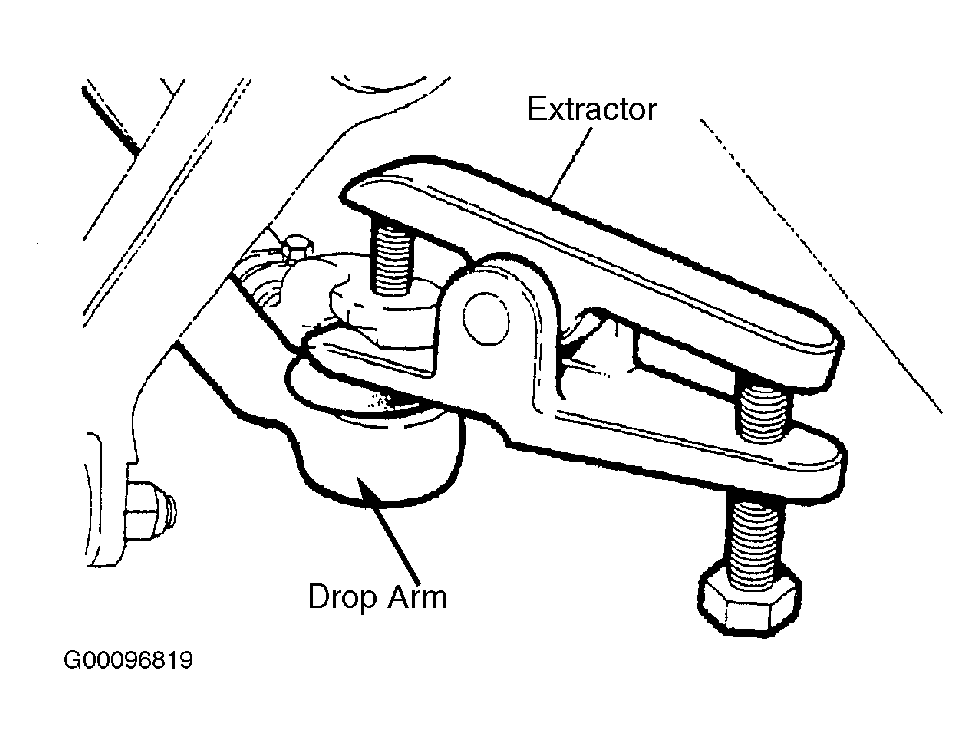

Fig 1: Removing Drop Arm Ball Joint
G00096819Courtesy of LAND ROVER NORTH AMERICA, INC.
Fig 2: Removing Drop Arm
G00096823Courtesy of LAND ROVER NORTH AMERICA, INC.
