Wiring Diagrams

Fig 1: Anti-Lock Brake Circuit (1990 - 1 Of 2)

G00072079

Courtesy of LAND ROVER NORTH AMERICA, INC.

Fig 2: Anti-Lock Brake Circuit (1990 - 2 Of 2)

G00072060

Courtesy of LAND ROVER NORTH AMERICA, INC.

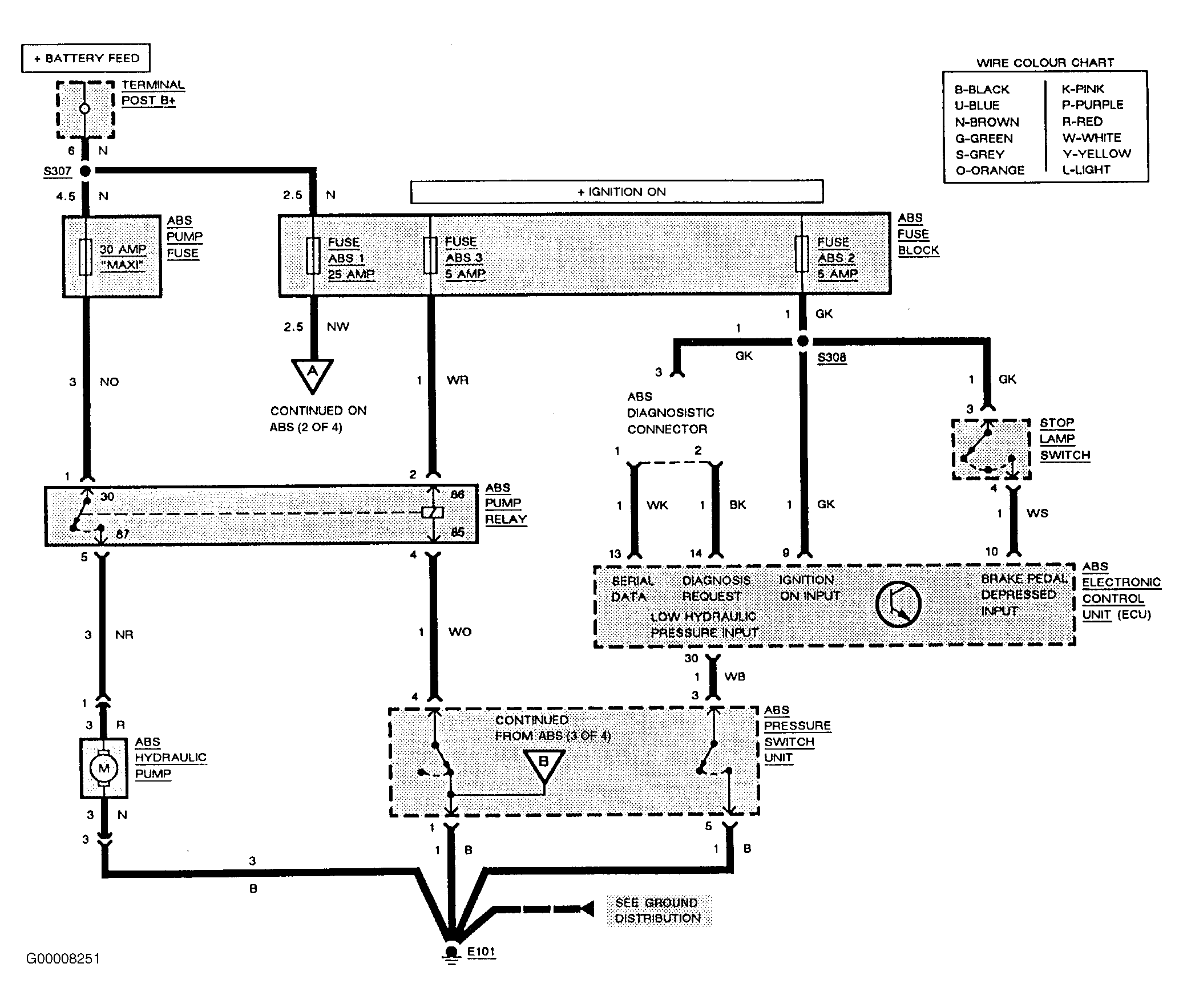

Fig 3: Anti-Lock Brake Circuit (1991 - 1 Of 4)

G00008251

Courtesy of LAND ROVER NORTH AMERICA, INC.

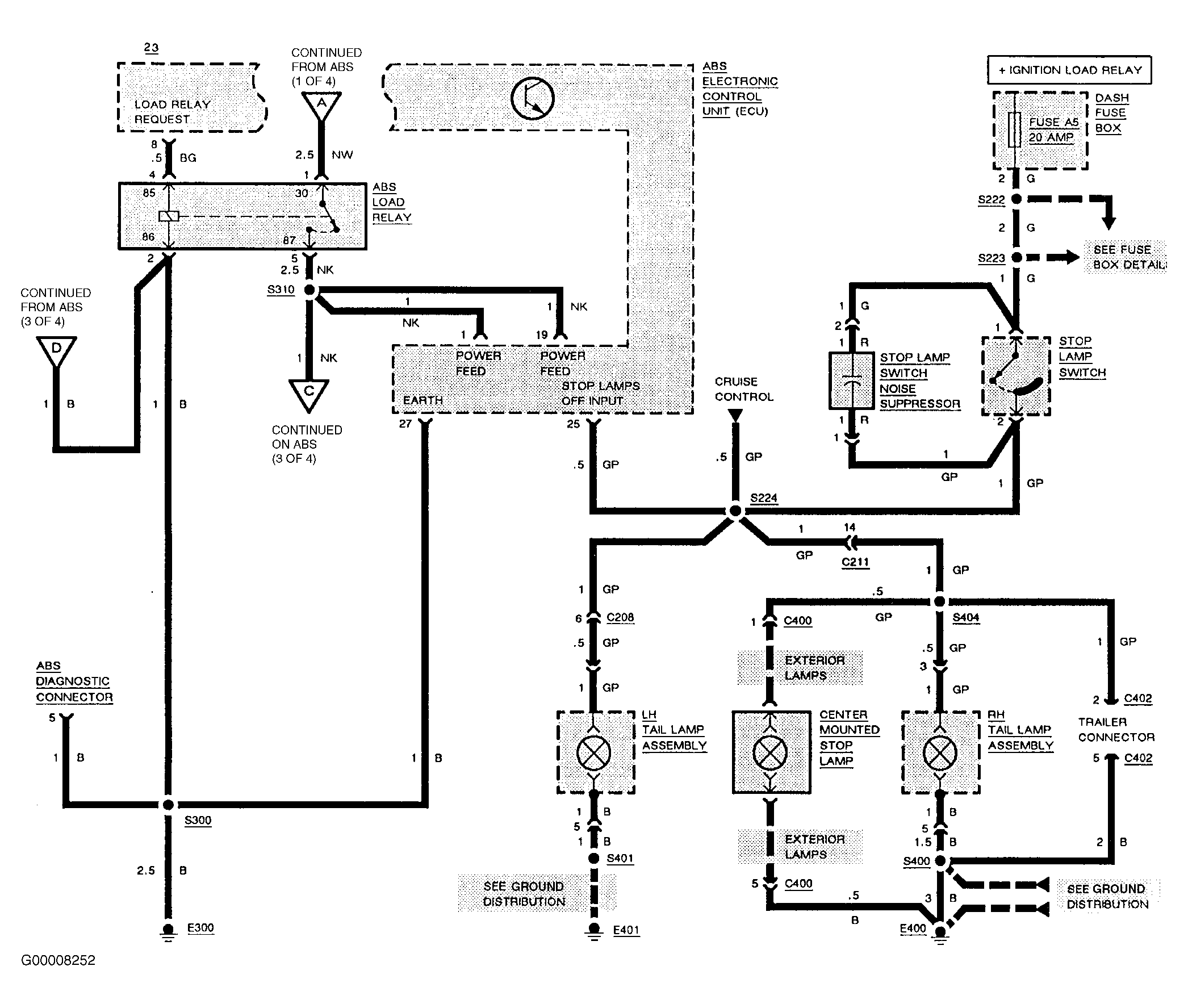

Fig 4: Anti-Lock Brake Circuit (1991 - 2 Of 4)

G00008252

Courtesy of LAND ROVER NORTH AMERICA, INC.

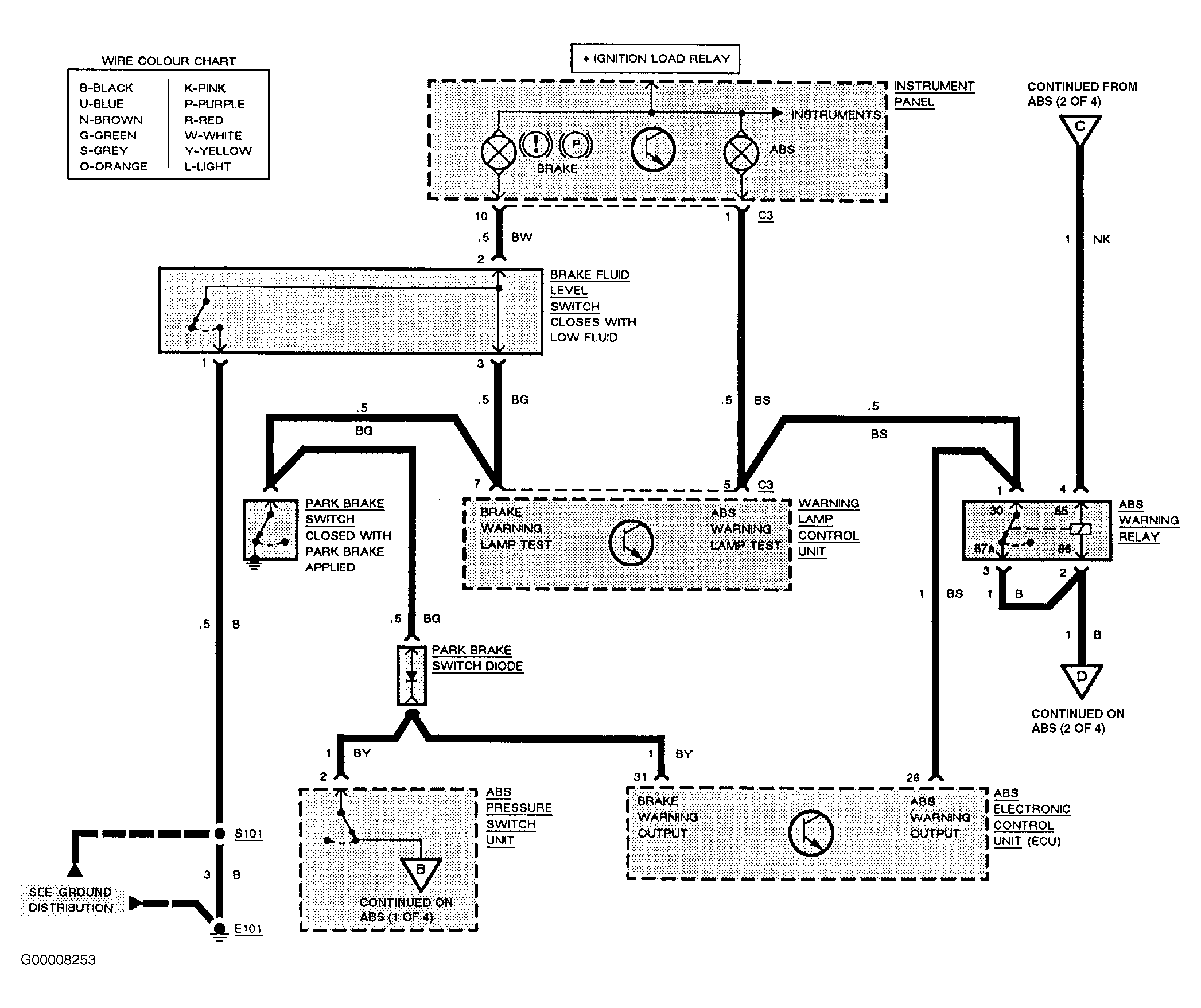

Fig 5: Anti-Lock Brake Circuit (1991 - 3 Of 4)

G00008253

Courtesy of LAND ROVER NORTH AMERICA, INC.

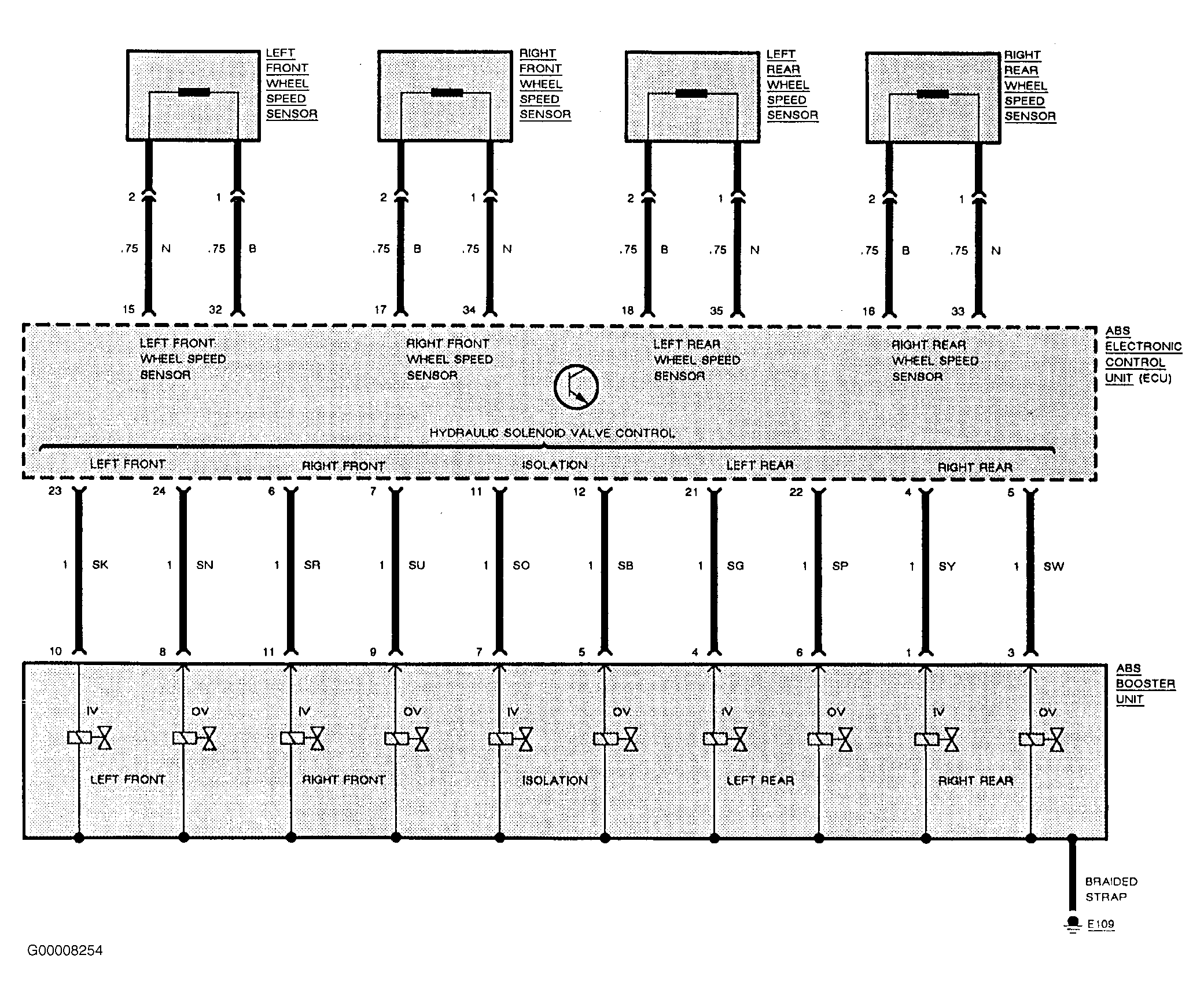

Fig 6: Anti-Lock Brake Circuit (1991 - 4 Of 4)

G00008254

Courtesy of LAND ROVER NORTH AMERICA, INC.
