Range Rover Base
>>
Repair and Diagnosis
>>
Body & Frame
>>
Power Mirrors
>>
Wiring Diagrams
Wiring Diagrams

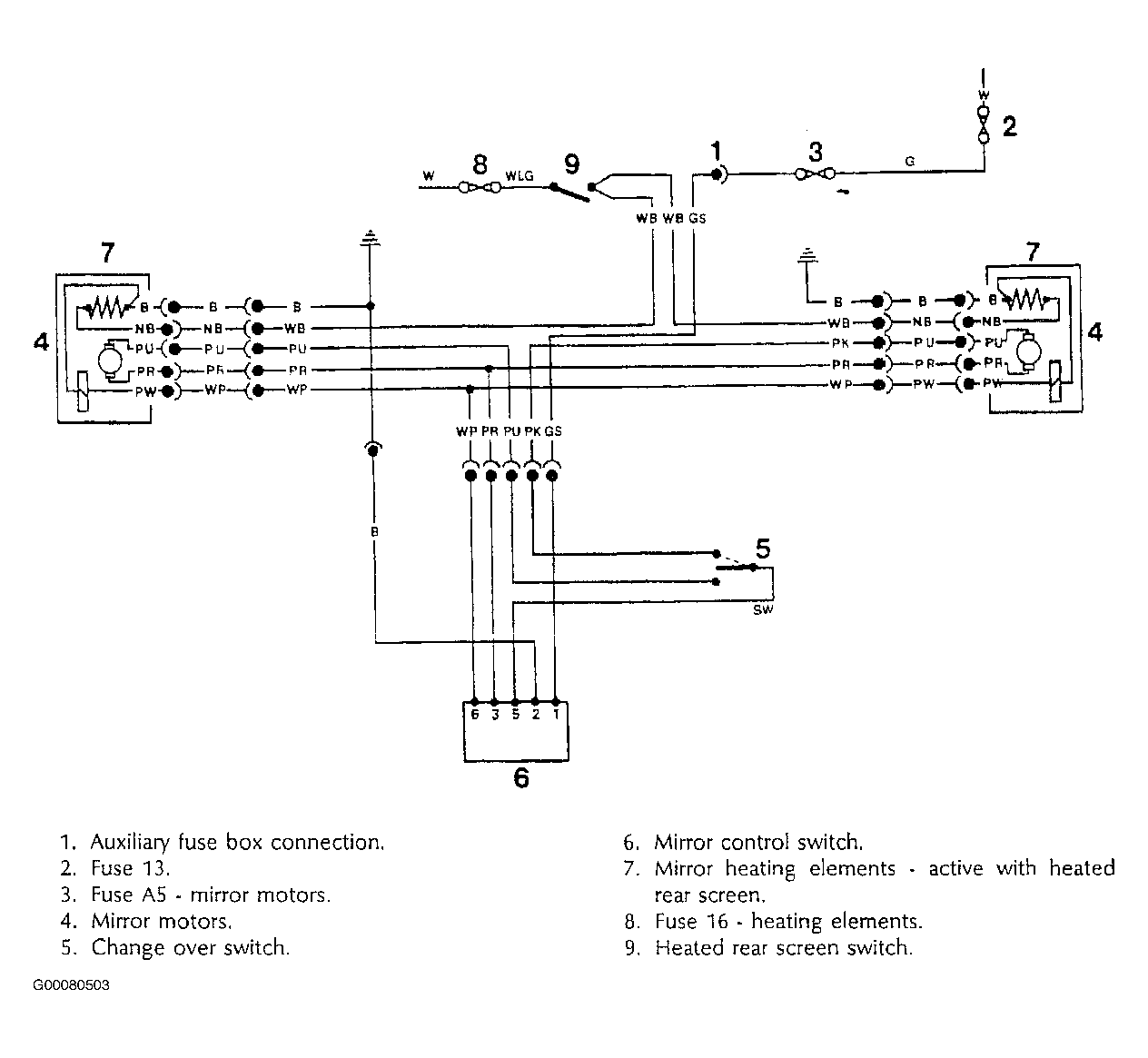

Fig 1: Power Mirrors Circuit Diagram (1987)
Courtesy of LAND ROVER NORTH AMERICA, INC.

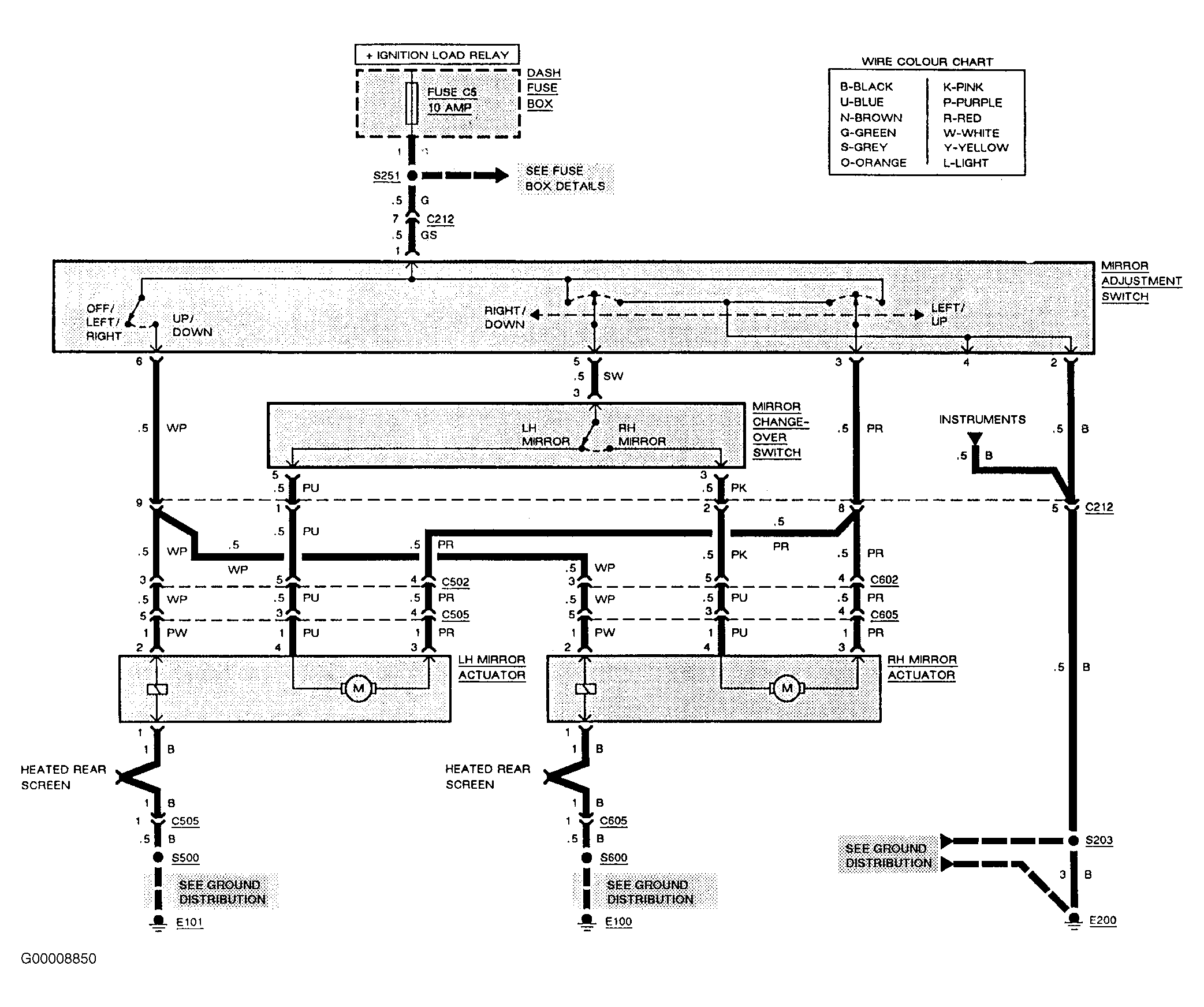

Fig 2: Power Mirrors Circuit Diagram (1988)
Courtesy of LAND ROVER NORTH AMERICA, INC.

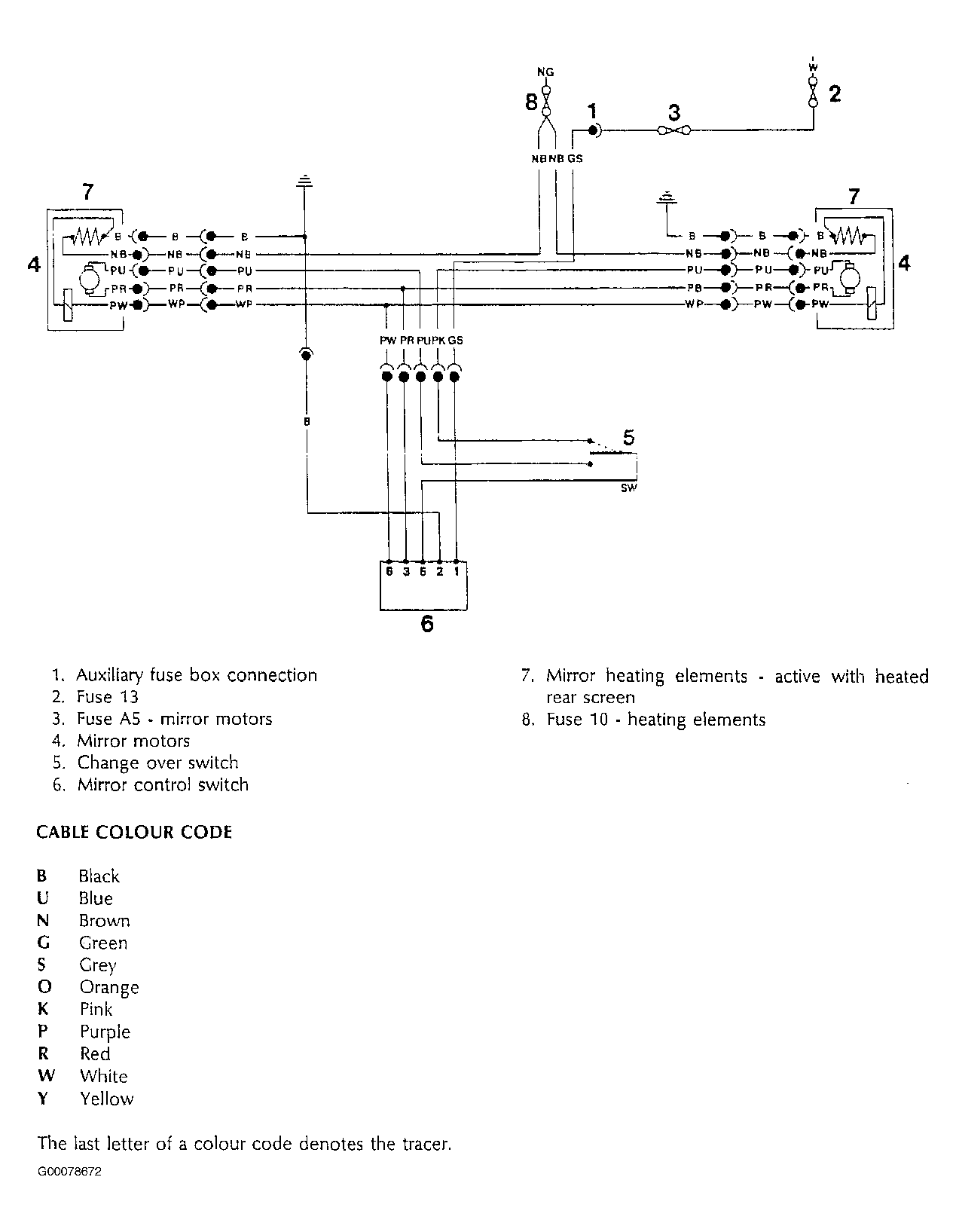

Fig 3: Power Mirrors Circuit Diagram (1989)
Courtesy of LAND ROVER NORTH AMERICA, INC.

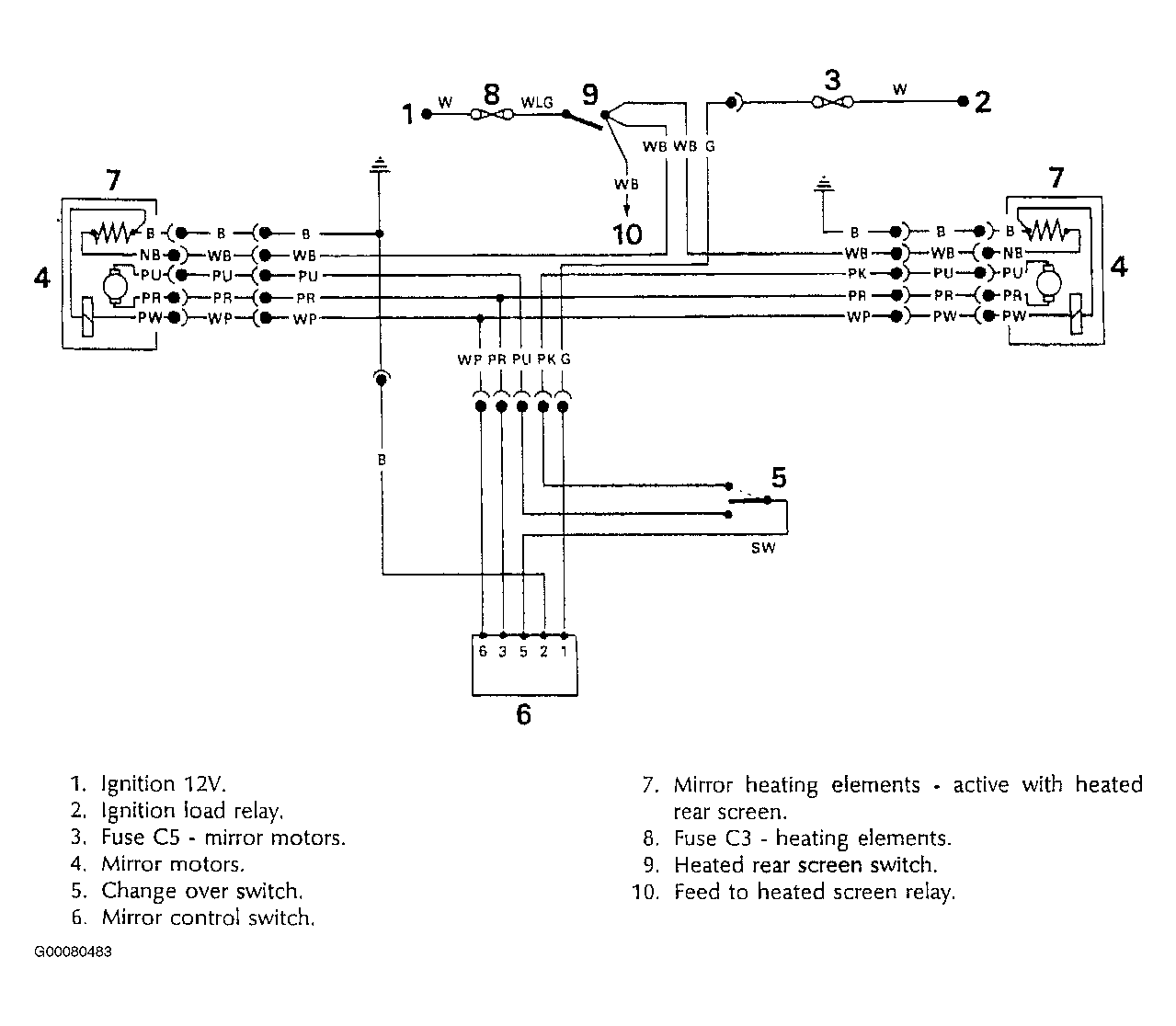

Fig 4: Power Mirrors Circuit Diagram (1990)
Courtesy of LAND ROVER NORTH AMERICA, INC.

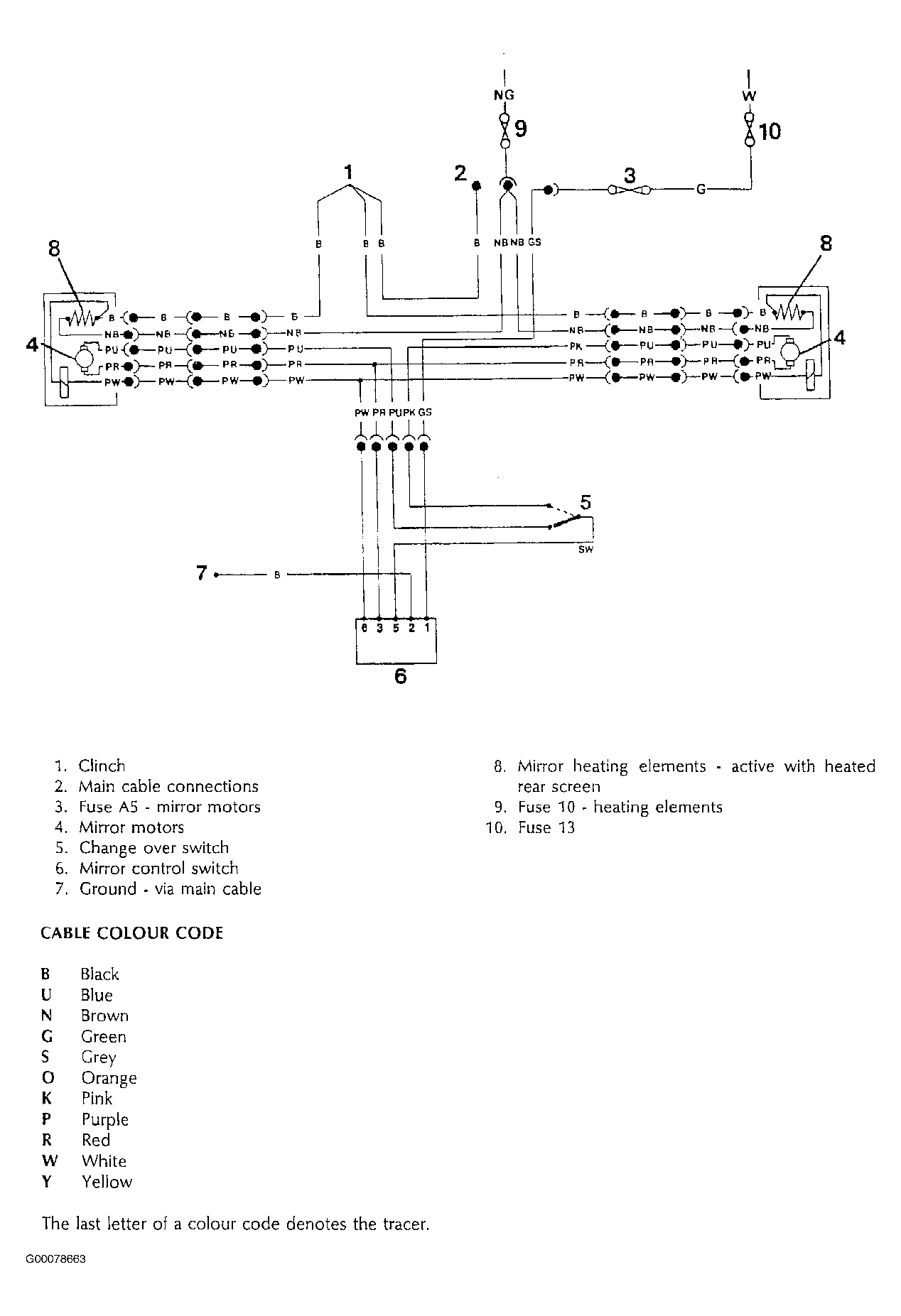

Fig 5: Power Mirrors Circuit Diagram (1991)
Courtesy of LAND ROVER NORTH AMERICA, INC.
