LEMON Manuals
: Even more car manuals for everyone
Home
>>
Land Rover
>>
1989
>>
Range Rover Base
>>
Repair and Diagnosis
>>
Engine Mechanical
>>
Mechanical
>>
3.9L V8
>>
Special Tools
Special Tools

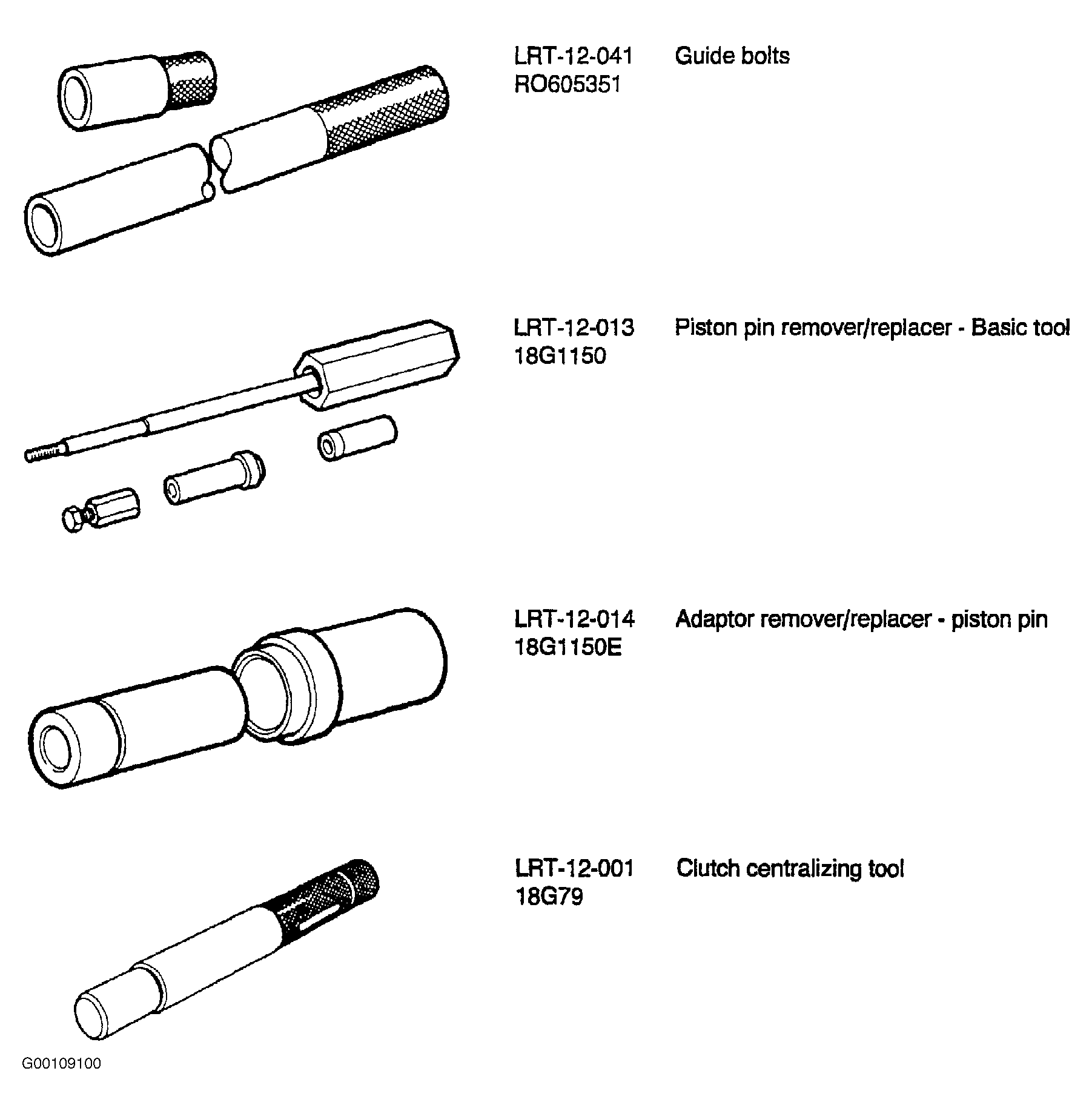

Fig 1: Special Tools (1 Of 3)
Courtesy of LAND ROVER NORTH AMERICA, INC.

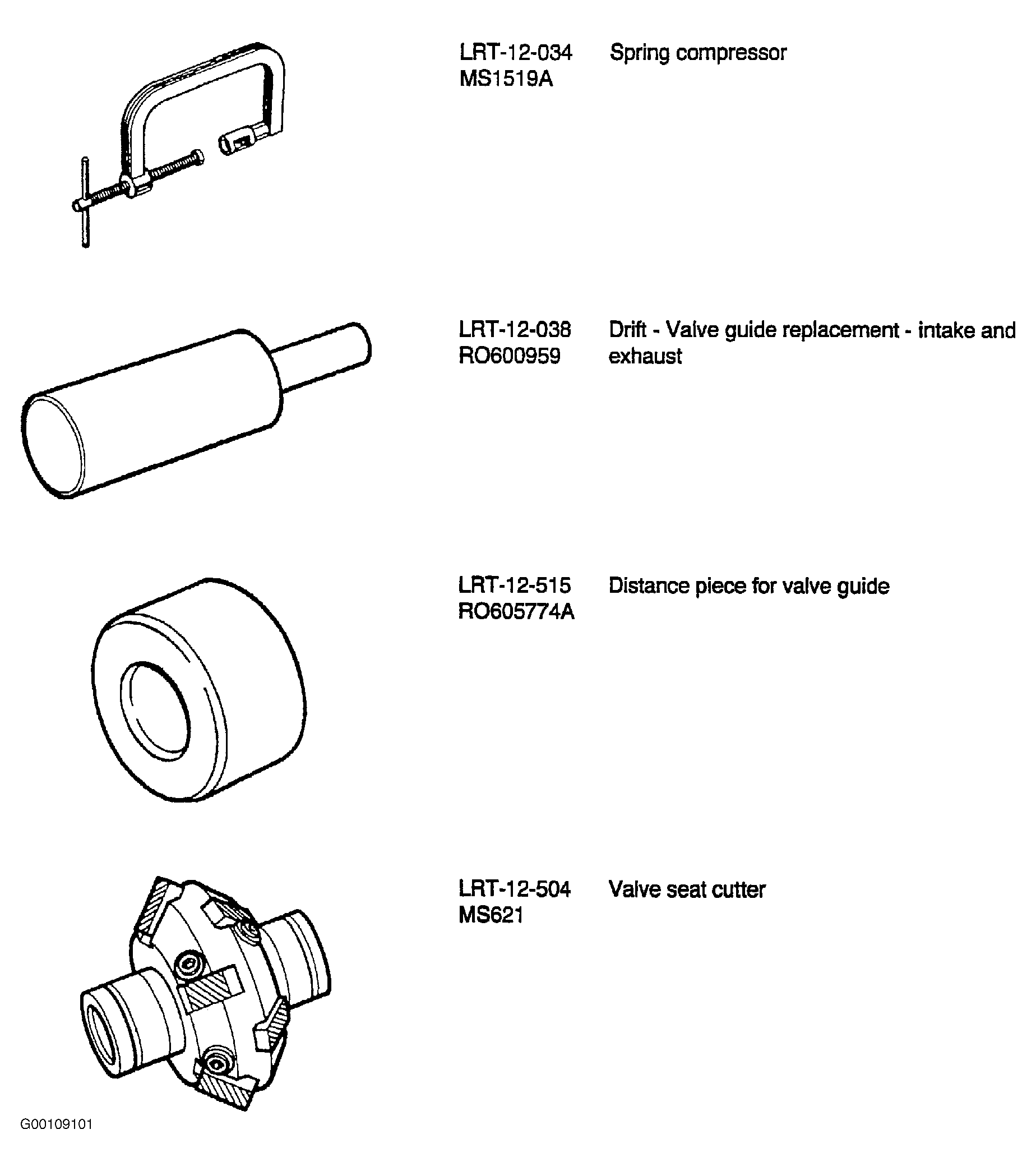

Fig 2: Special Tools (2 Of 3)
Courtesy of LAND ROVER NORTH AMERICA, INC.

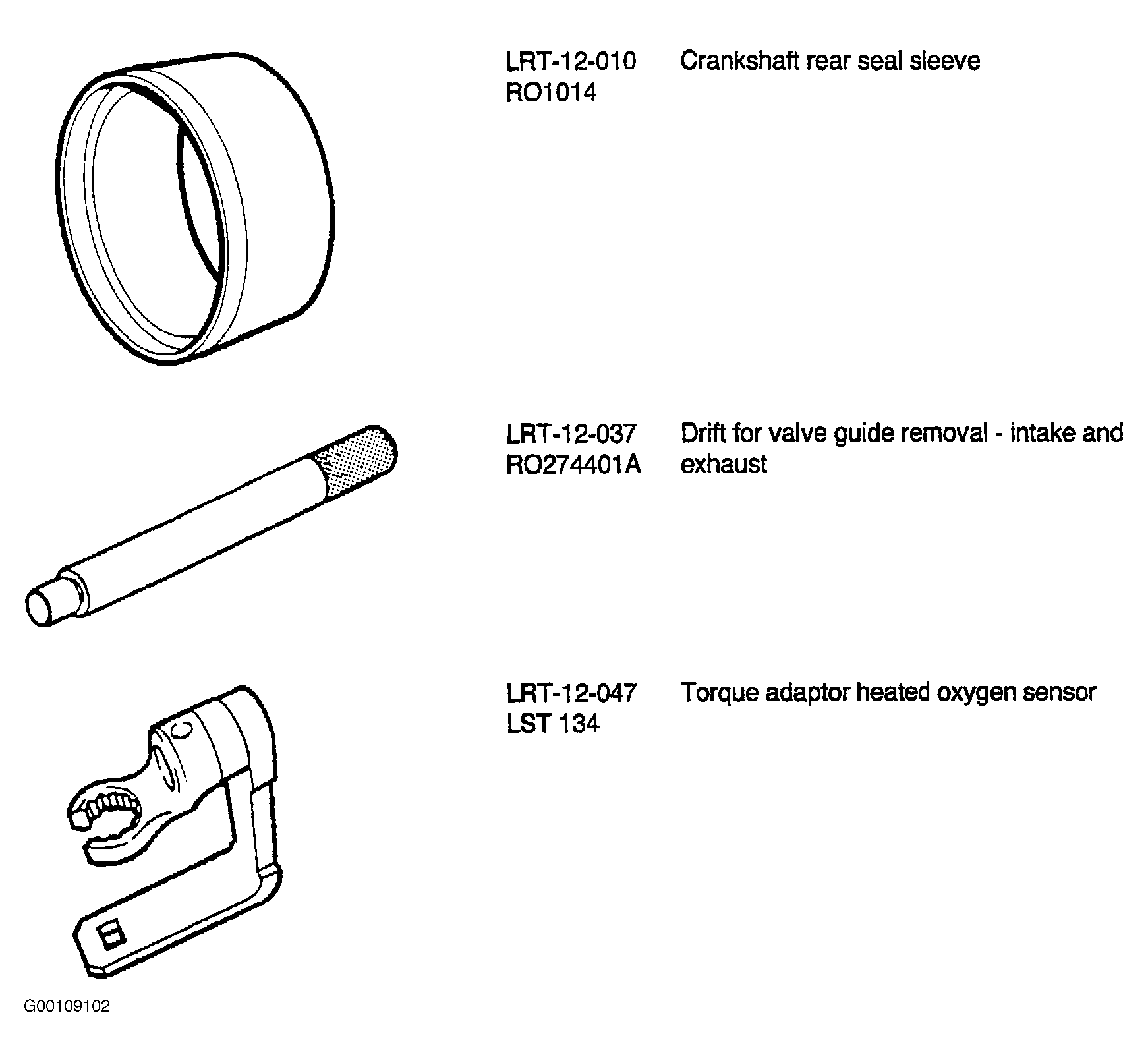

Fig 3: Special Tools (3 Of 3)
Courtesy of LAND ROVER NORTH AMERICA, INC.
Courtesy of LAND ROVER NORTH AMERICA, INC.
Courtesy of LAND ROVER NORTH AMERICA, INC.
Courtesy of LAND ROVER NORTH AMERICA, INC.
