Oil Pump: Disassembly

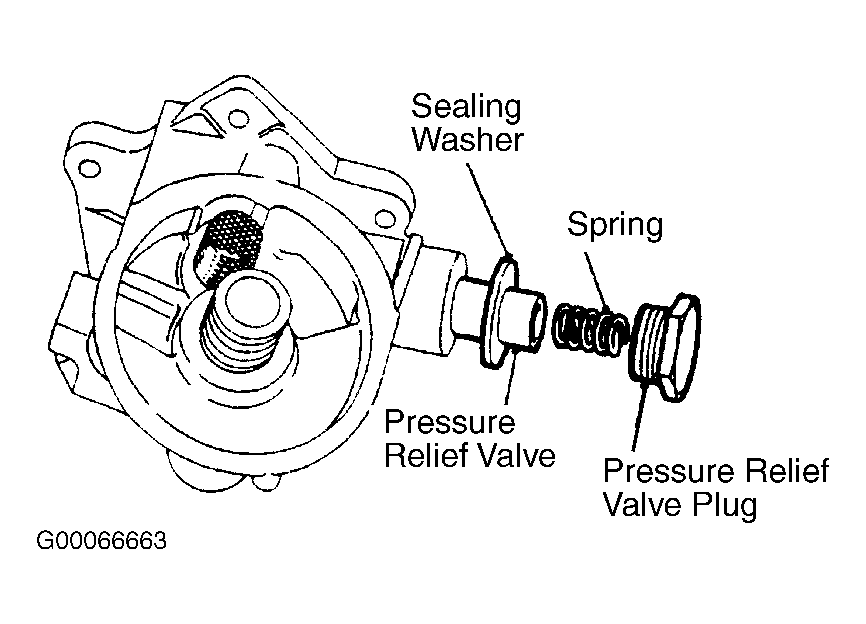

  1. Unscrew plug from pressure relief valve. See Figure.
  2. Lift sealing washer from plug.
  3. Withdraw spring from relief valve.
  4. Withdraw pressure relief valve.
