Engine Disassembly: Thermostat: Testing

  1. Note temperature stamped on thermostat at which it should be fully open should be 88°C (190°F). See Fig 1.
  2. Place thermostat and thermometer in container of water. See Fig 2.
  3. Heat water and observe temperature at which thermostat opens.
  4. If faulty, discard thermostat.

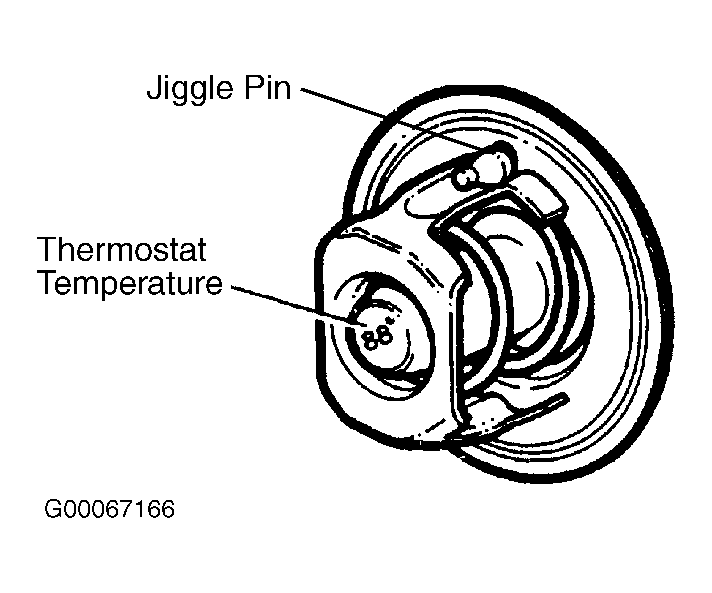

Fig 1: Locating Thermostat Temperature Rating & Jiggle Pin
G00067166Courtesy of LAND ROVER NORTH AMERICA, INC.

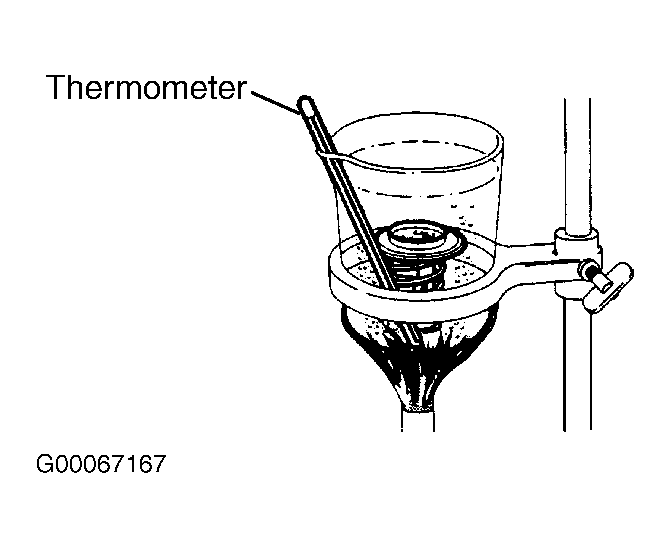

Fig 2: Testing Thermostat
G00067167Courtesy of LAND ROVER NORTH AMERICA, INC.
