Drop Arm

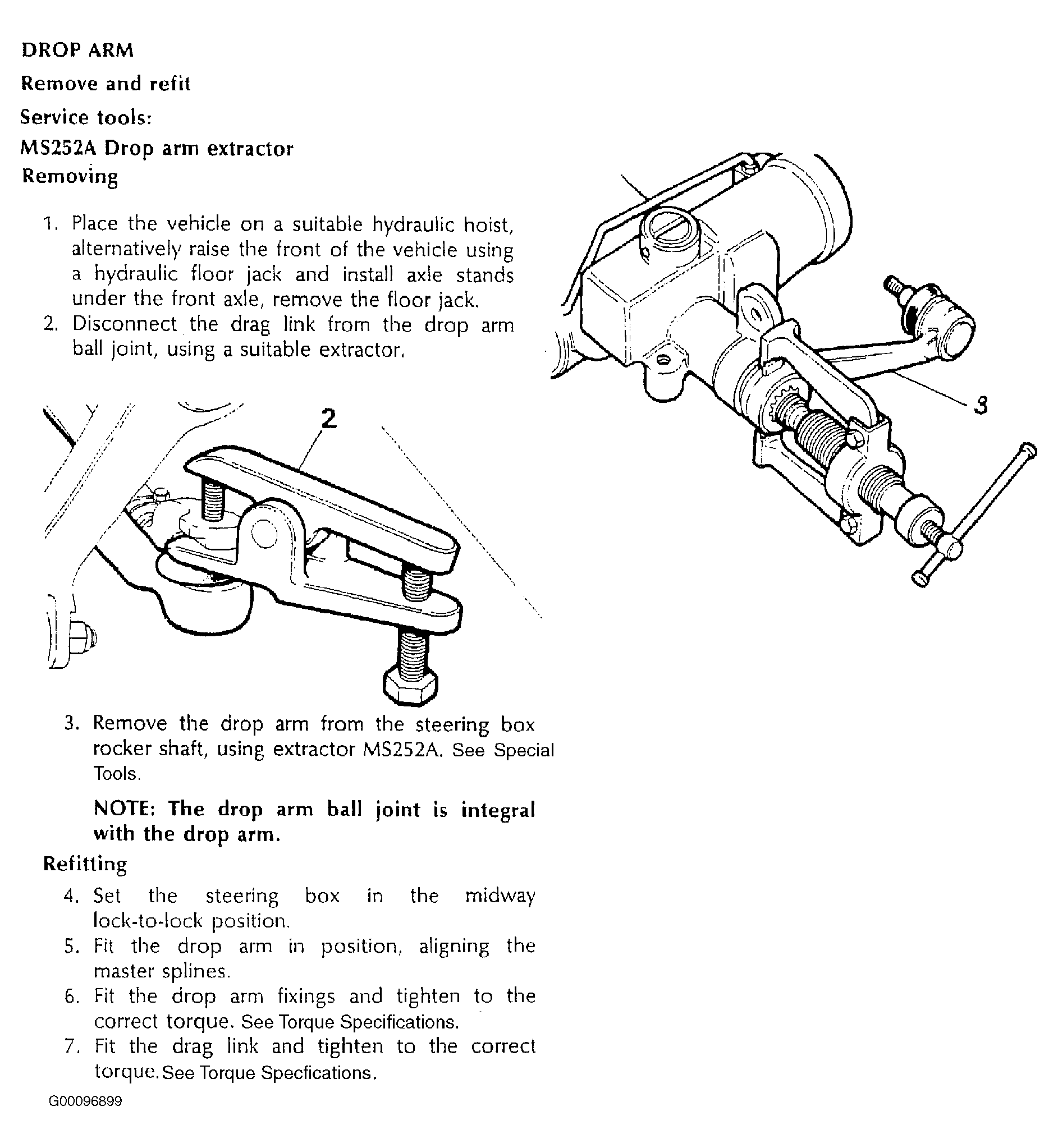

Fig 1: Removing & Installing Drop Arm

G00096899

Courtesy of LAND ROVER NORTH AMERICA, INC.
