Drop Arm Ball

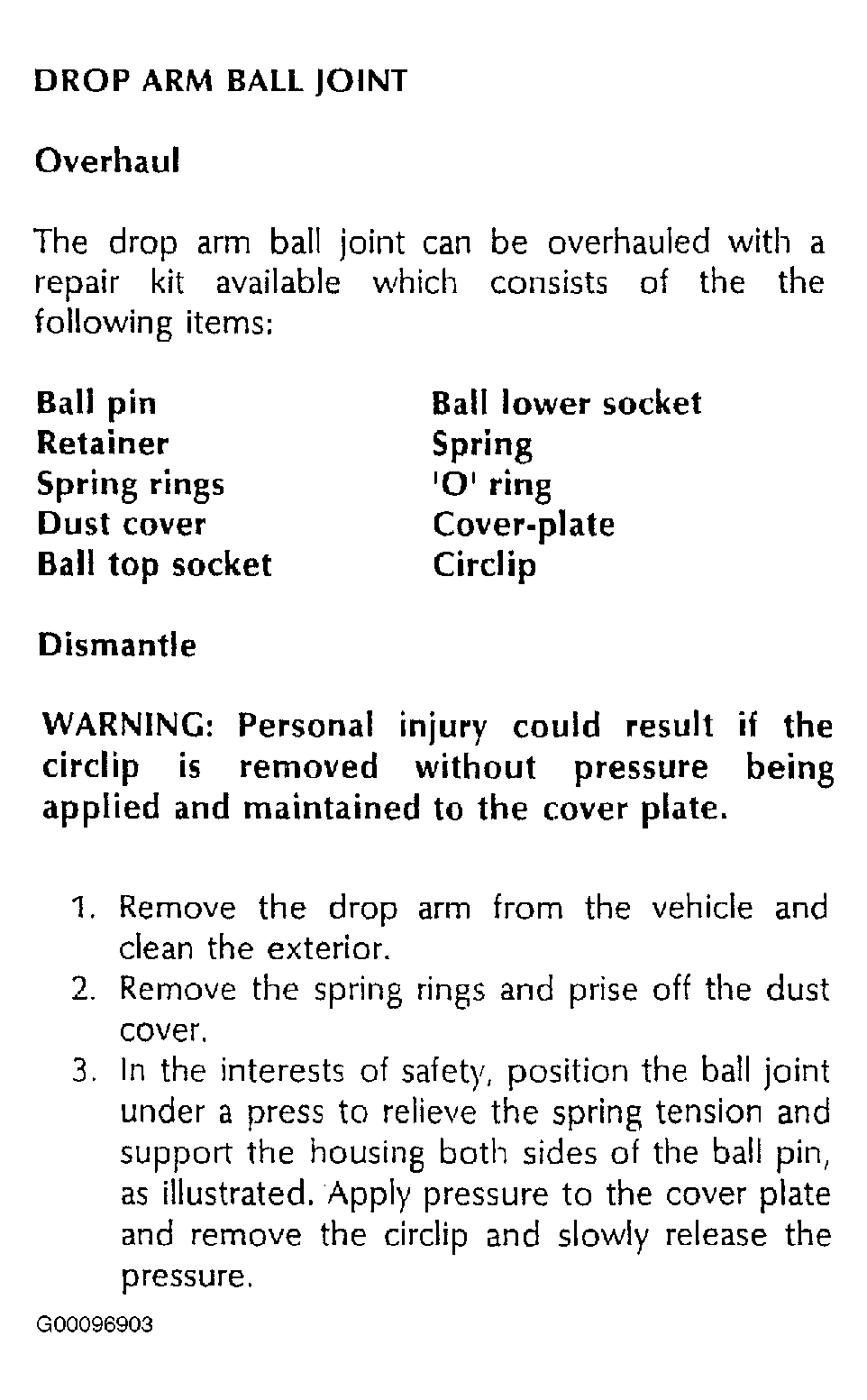

Fig 1: Overhaul Of Drop Arm Ball Joint (1 of 3)
G00096903Courtesy of LAND ROVER NORTH AMERICA, INC.

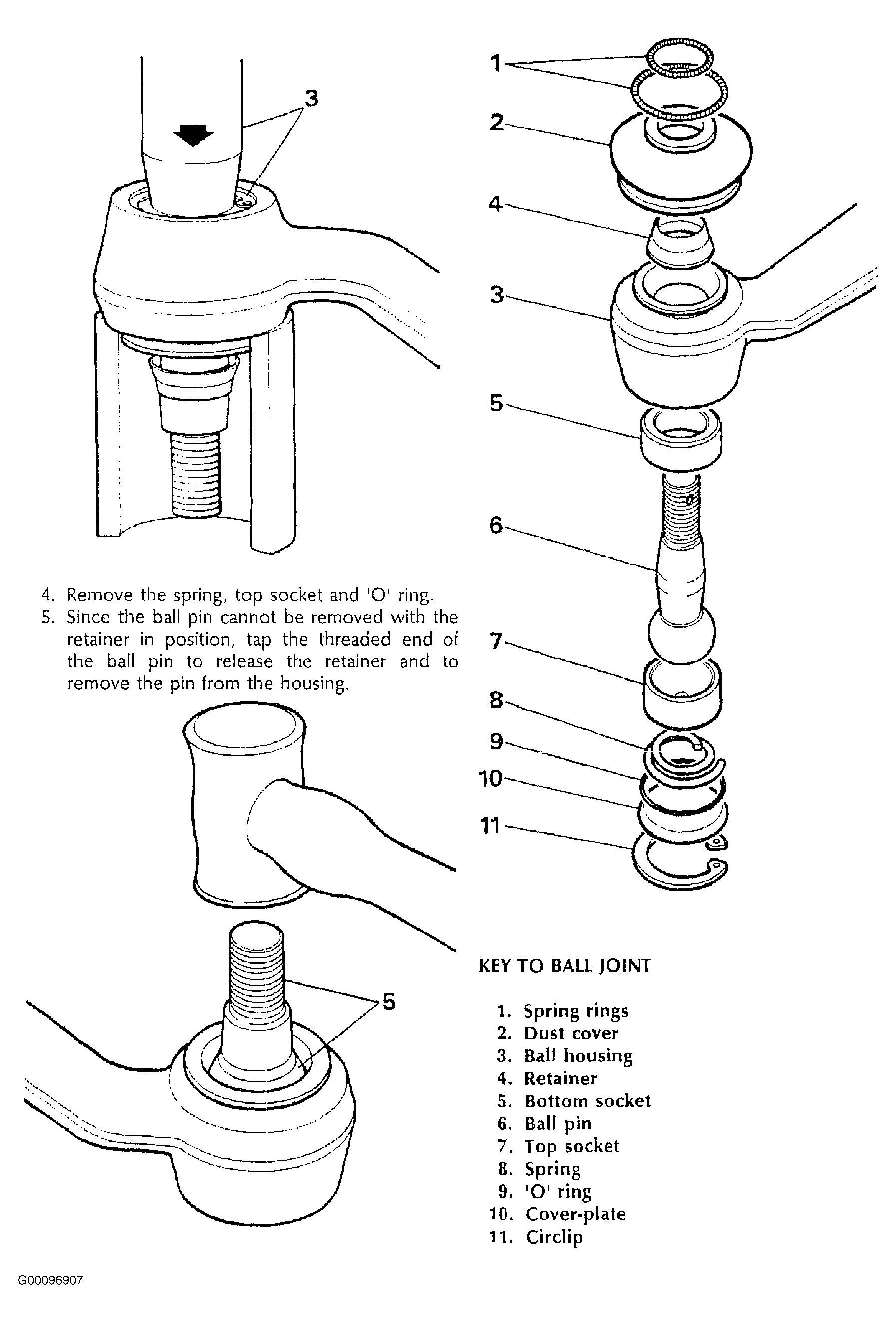

Fig 2: Overhaul Of Drop Arm Ball Joint (2 of 3)
G00096907Courtesy of LAND ROVER NORTH AMERICA, INC.

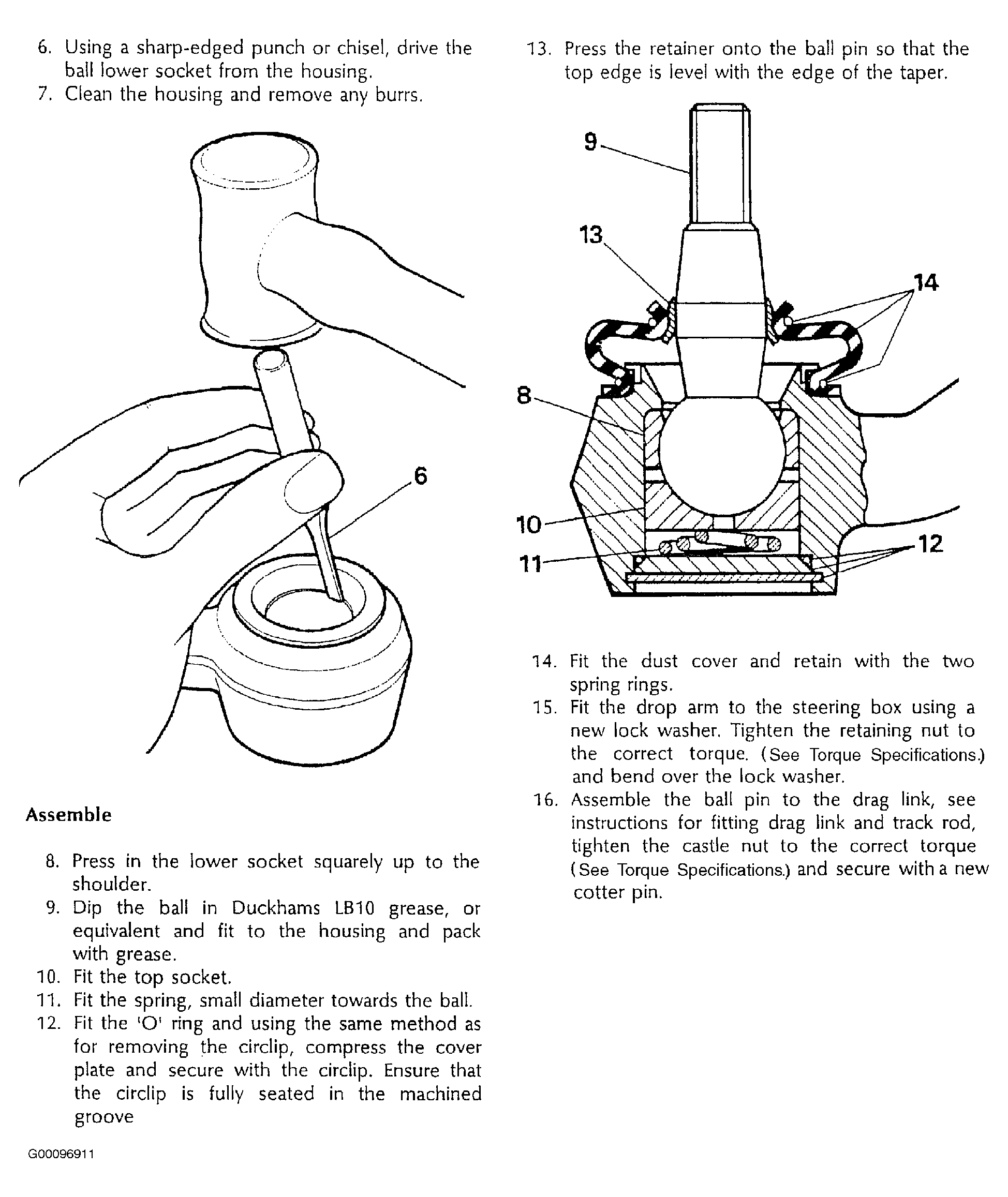

Fig 3: Overhaul Of Drop Arm Ball Joint (3 of 3)
G00096911Courtesy of LAND ROVER NORTH AMERICA, INC.
