Torque Peak Check

NOTE: Ensure rack adjuster is adjusted before checking torque peak. See RACK ADJUSTER .

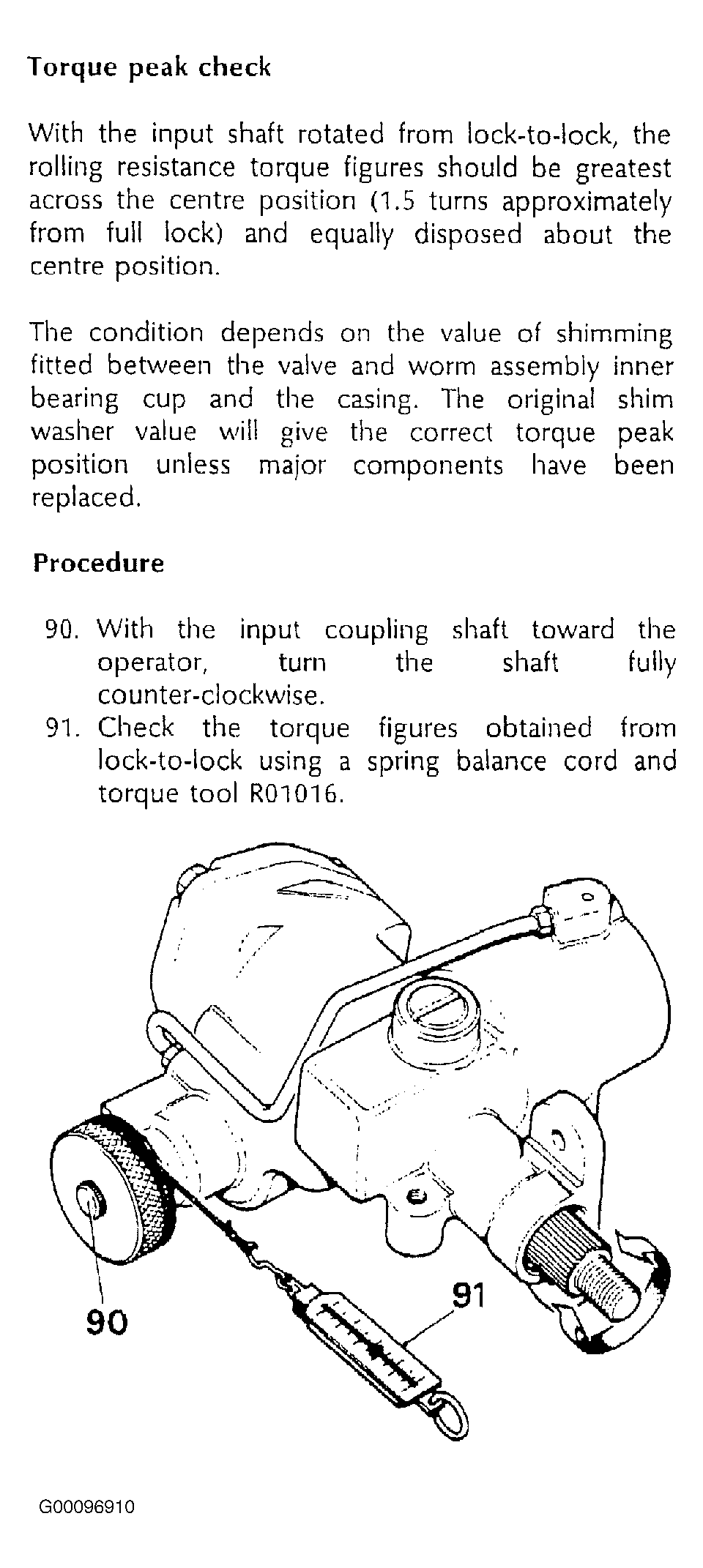

Fig 1: Checking Torque Peak (1 of 2)

Courtesy of LAND ROVER NORTH AMERICA, INC.

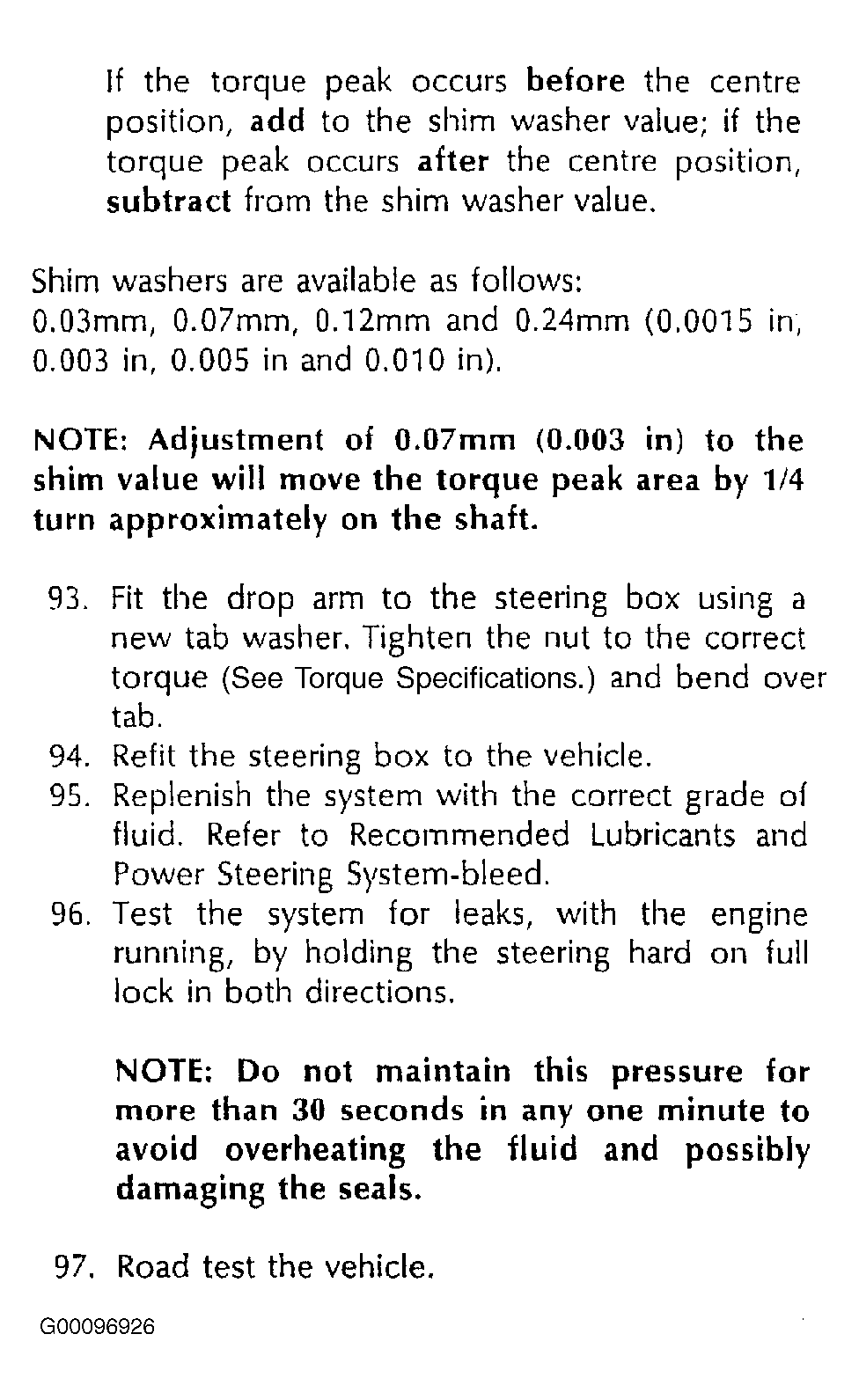

Fig 2: Checking Torque Peak (2 of 2)

Courtesy of LAND ROVER NORTH AMERICA, INC.
