Wiring Diagrams

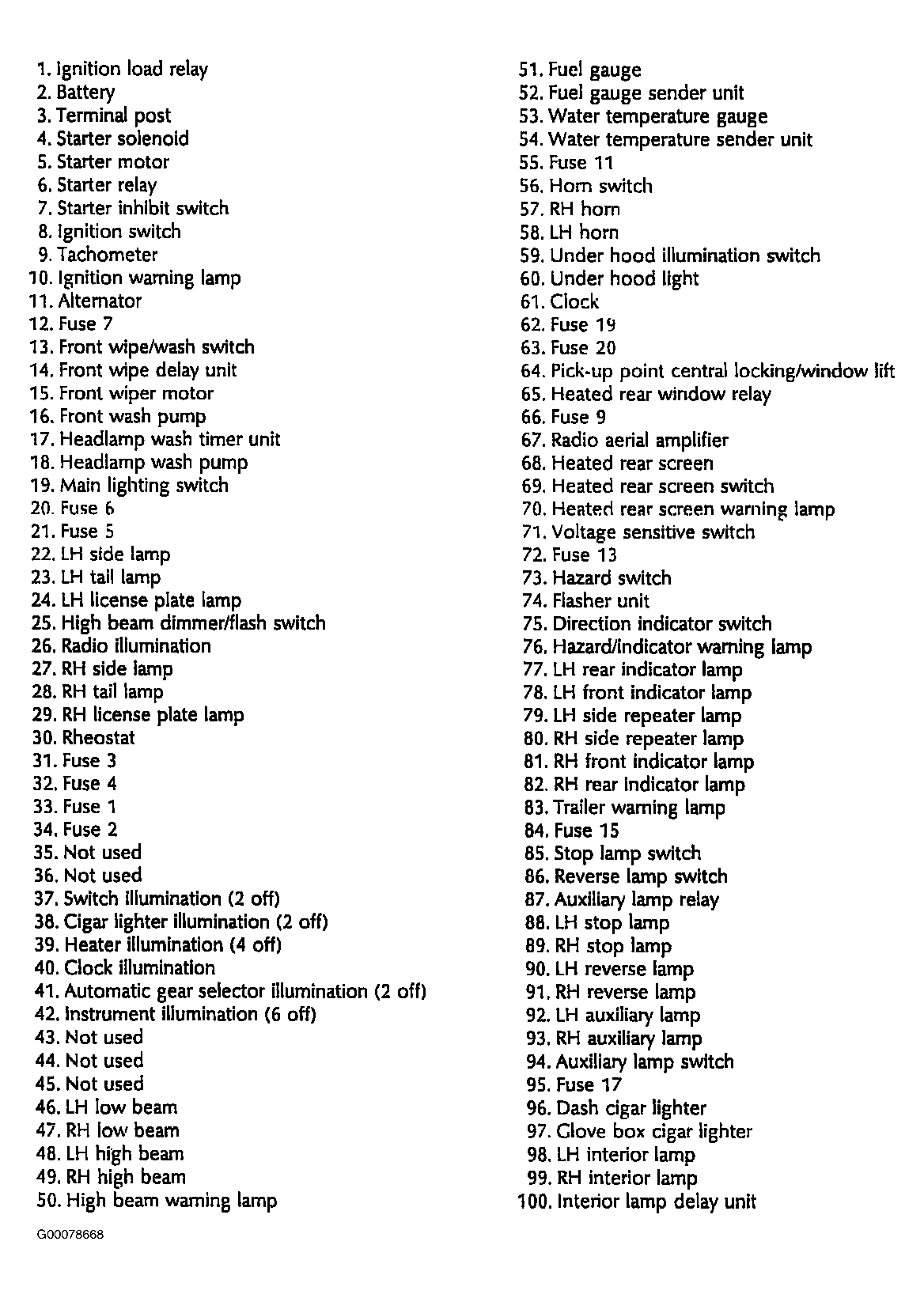

Fig 1: Main Circuit Diagram (1987 - 1 Of 4)

G00078668

Courtesy of LAND ROVER NORTH AMERICA, INC.

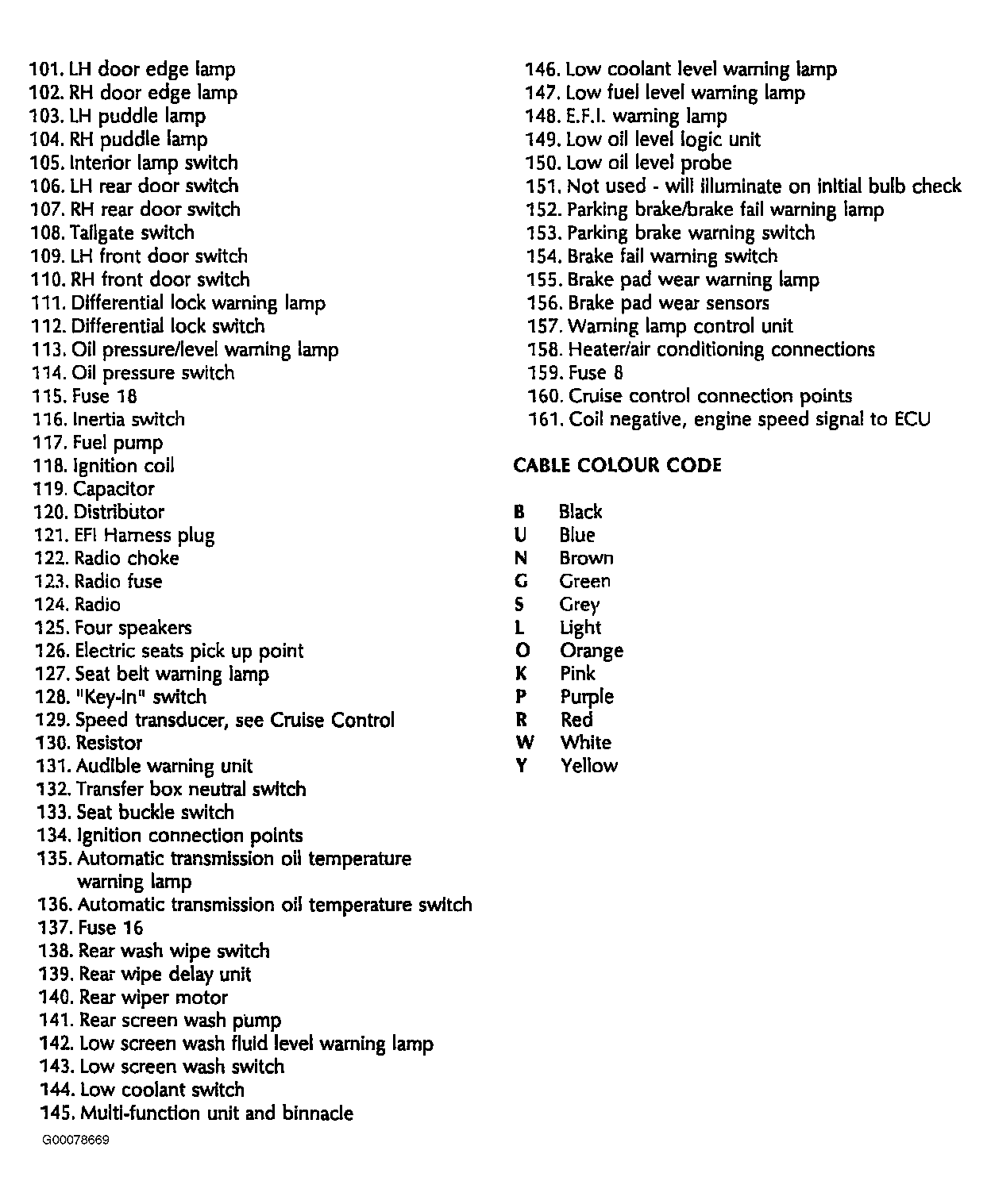

Fig 2: Main Circuit Diagram (1987 - 2 Of 4)

G00078669

Courtesy of LAND ROVER NORTH AMERICA, INC.

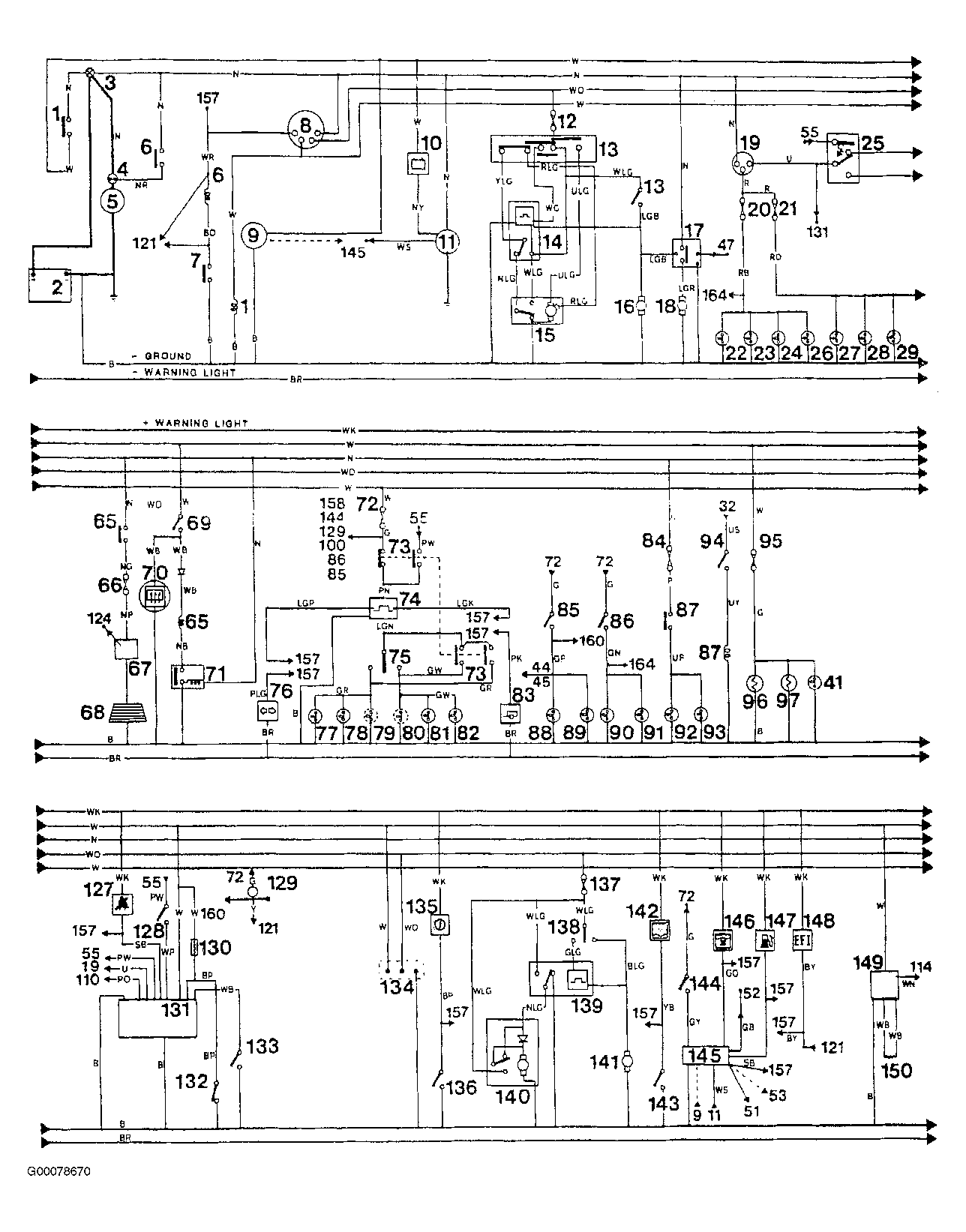

Fig 3: Main Circuit Diagram (1987 - 3 Of 4)

G00078670

Courtesy of LAND ROVER NORTH AMERICA, INC.

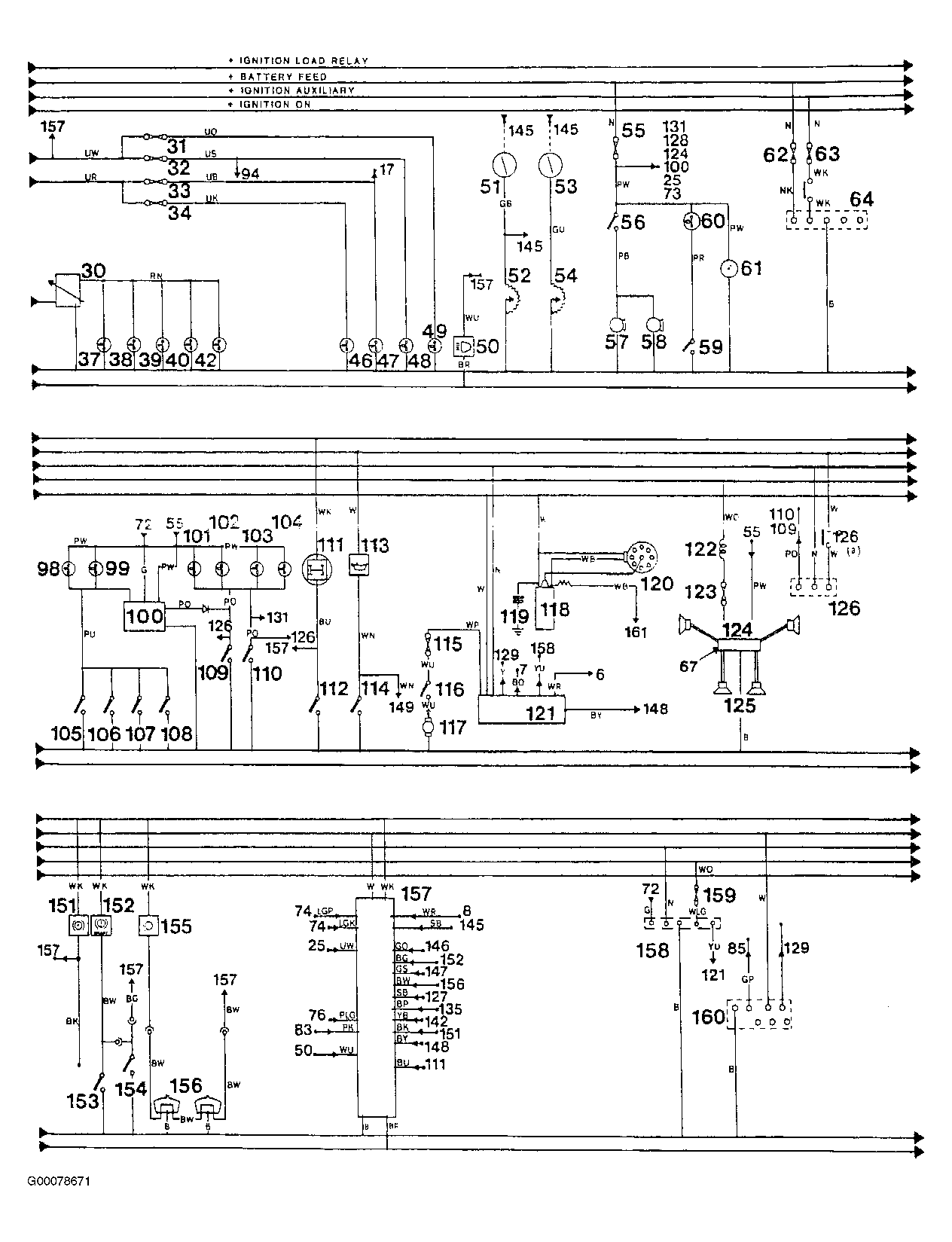

Fig 4: Main Circuit Diagram (1987 - 4 Of 4)

G00078671

Courtesy of LAND ROVER NORTH AMERICA, INC.

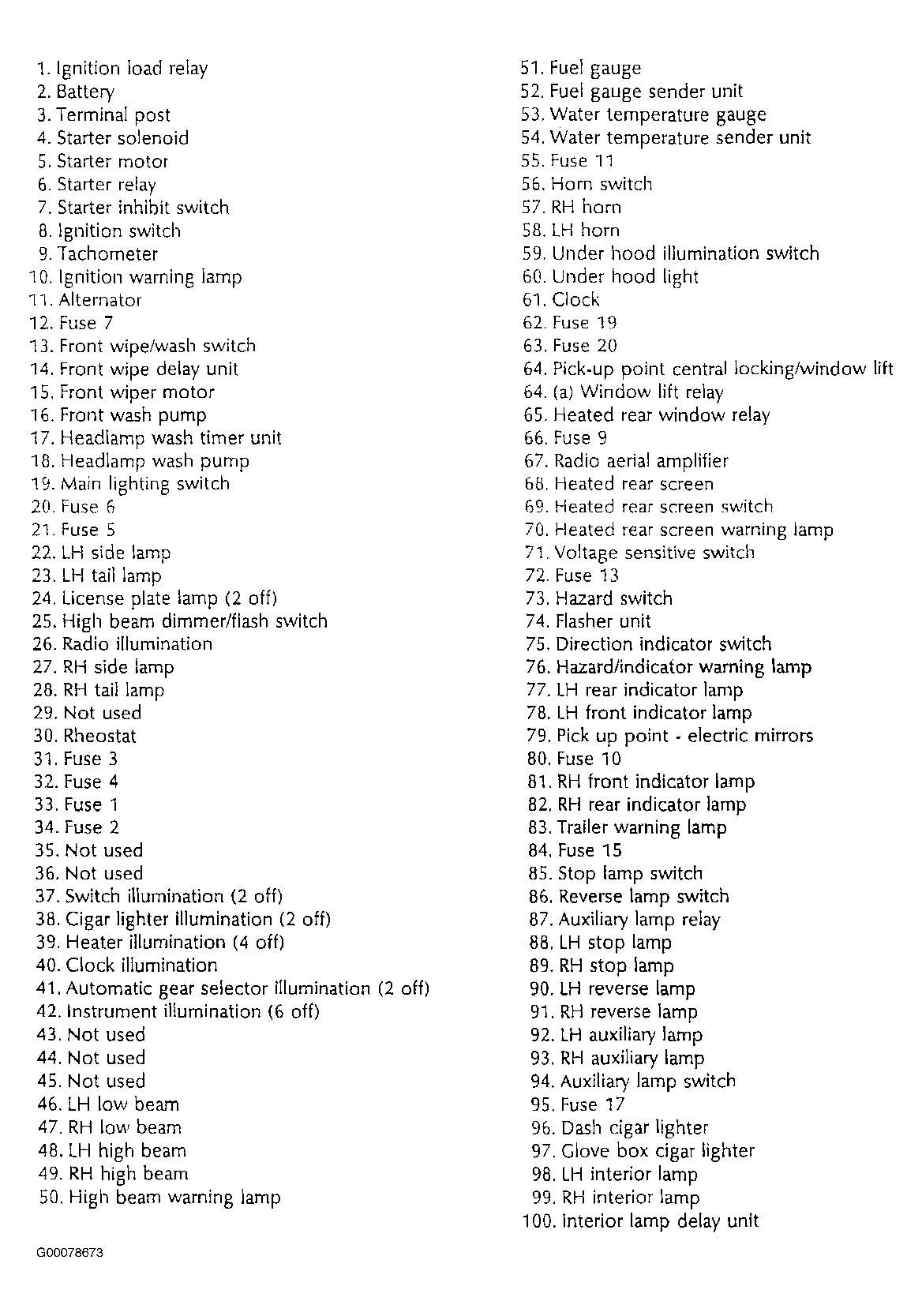

Fig 5: Main Circuit Diagram (1988 - 1 Of 6)

G00078673

Courtesy of LAND ROVER NORTH AMERICA, INC.

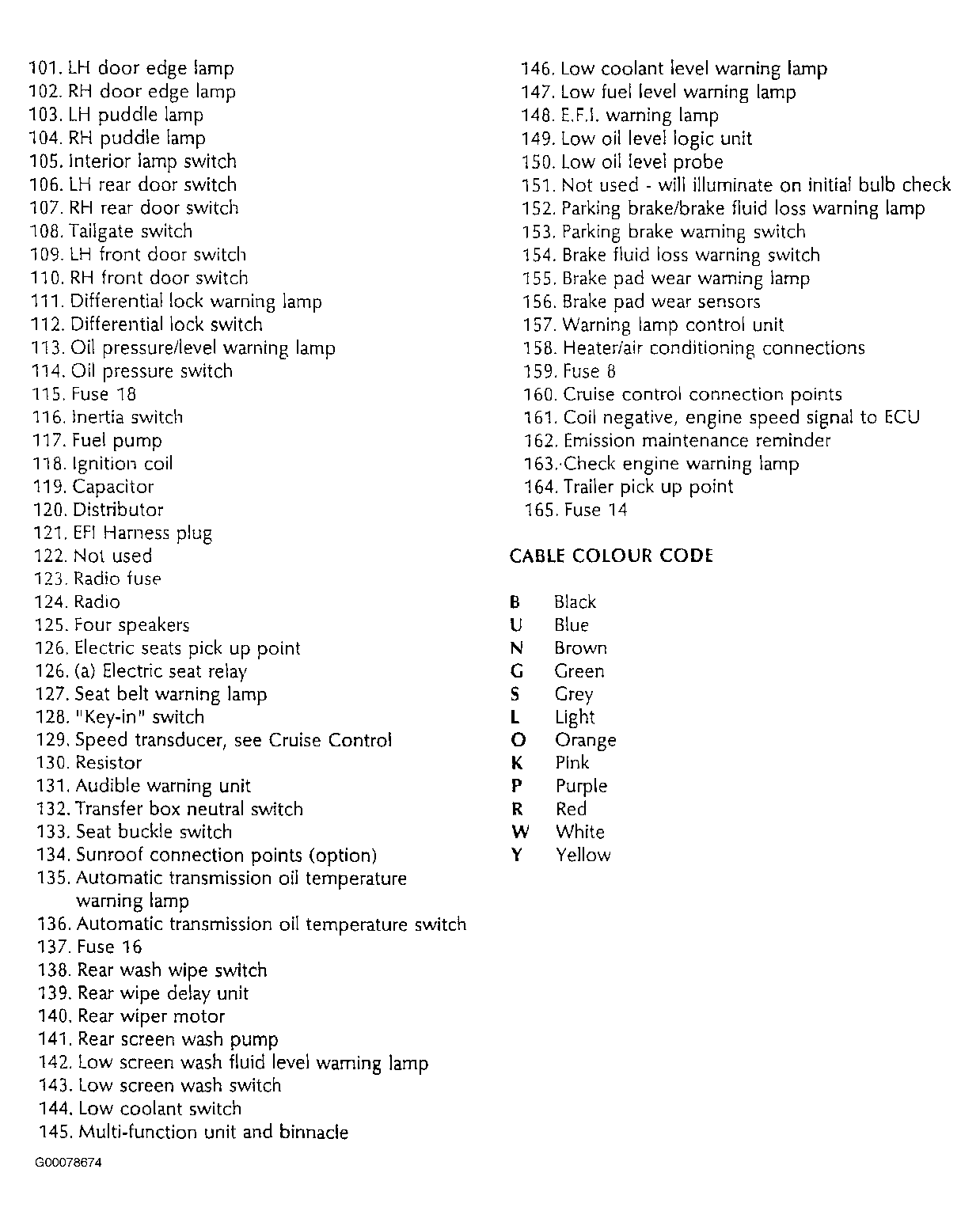

Fig 6: Main Circuit Diagram (1988 - 2 Of 6)

G00078674

Courtesy of LAND ROVER NORTH AMERICA, INC.

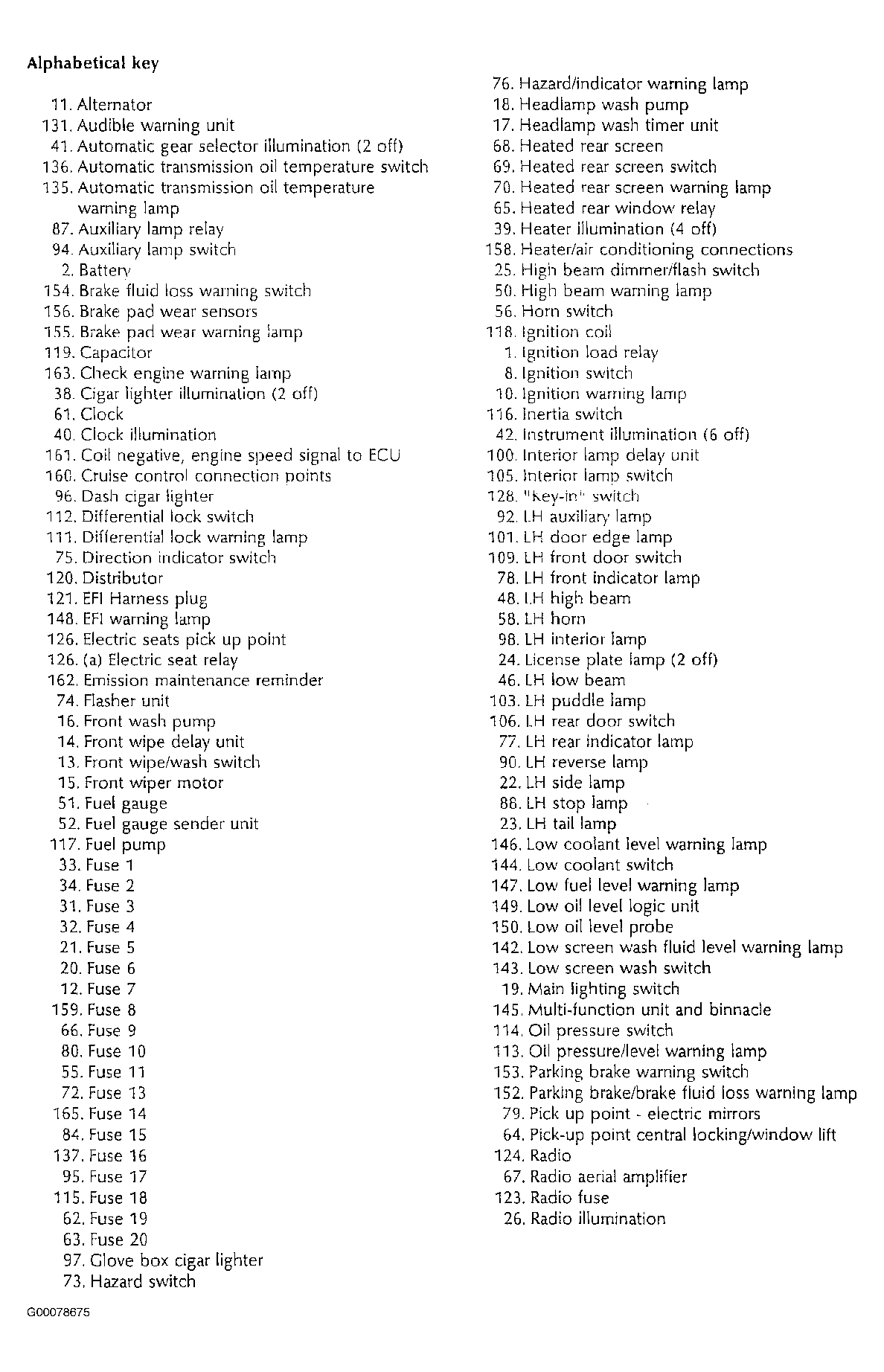

Fig 7: Main Circuit Diagram (1988 - 3 Of 6)

G00078675

Courtesy of LAND ROVER NORTH AMERICA, INC.

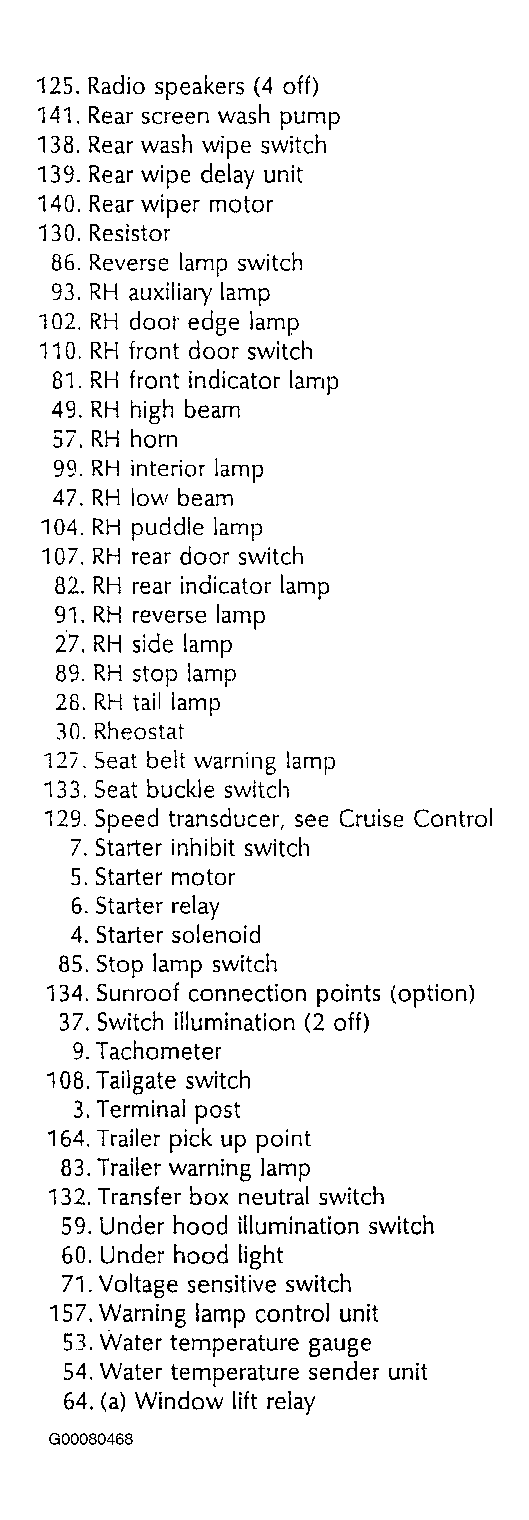

Fig 8: Main Circuit Diagram (1988 - 4 Of 6)

G00080468

Courtesy of LAND ROVER NORTH AMERICA, INC.

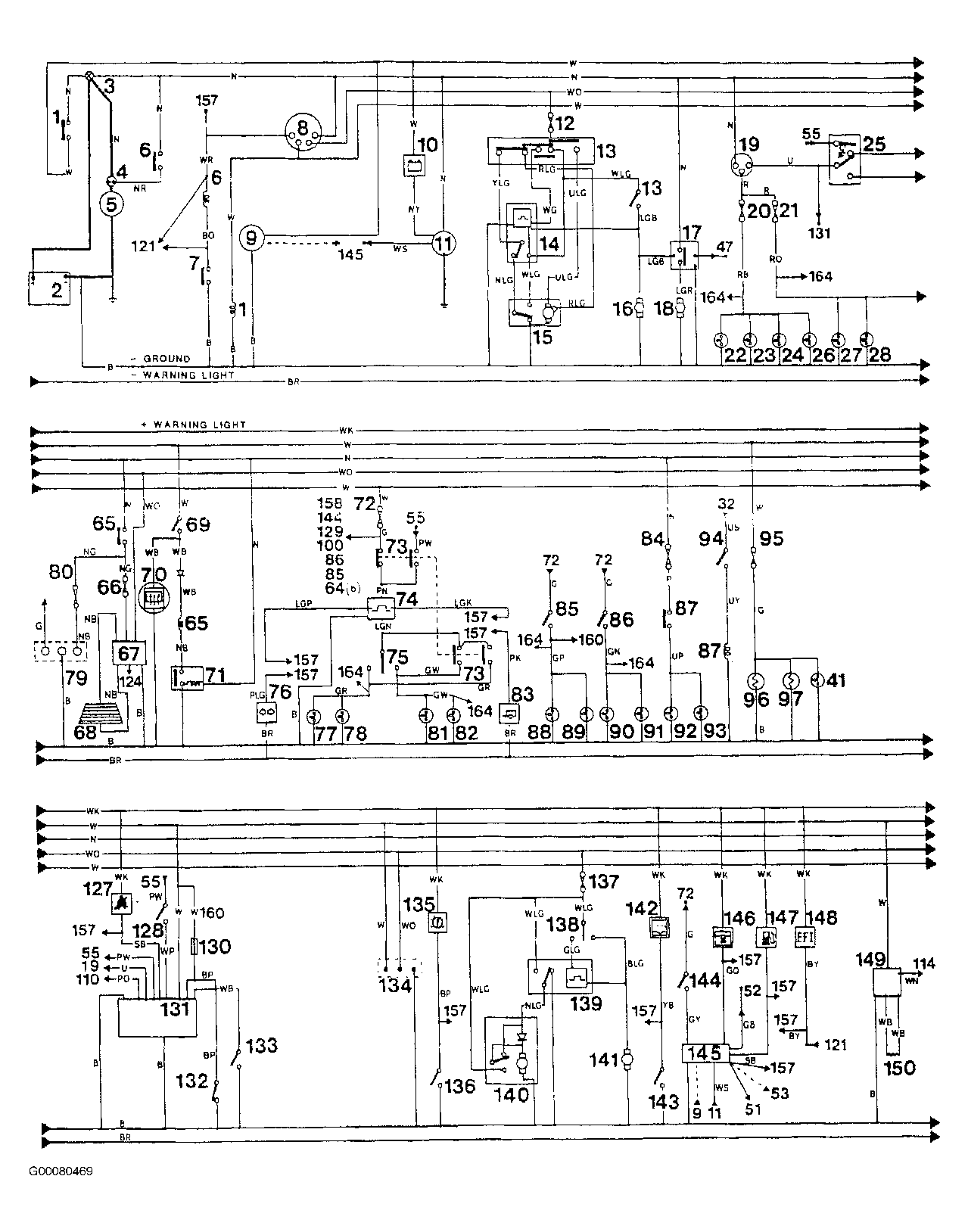

Fig 9: Main Circuit Diagram (1988 - 5 Of 6)

G00080469

Courtesy of LAND ROVER NORTH AMERICA, INC.

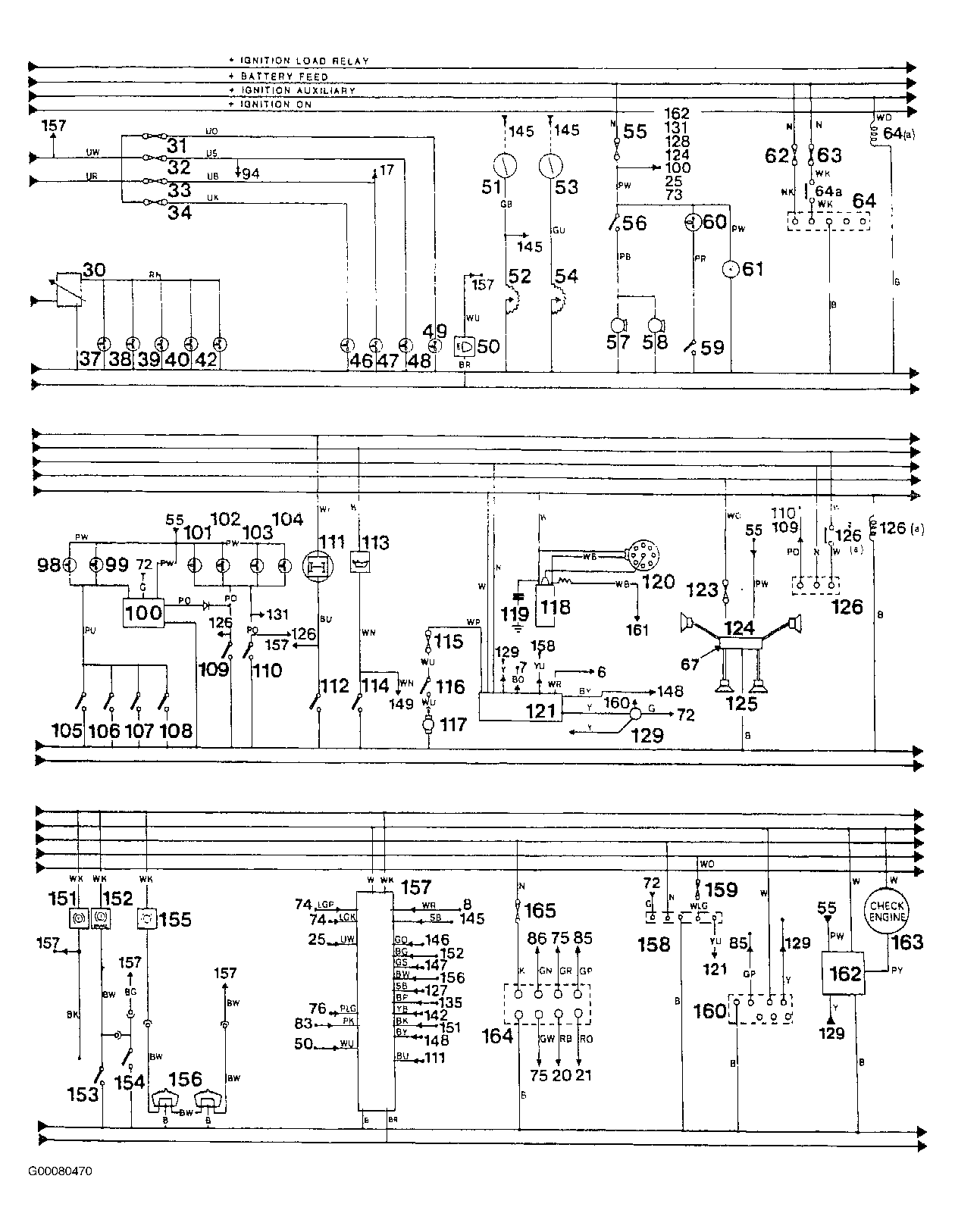

Fig 10: Main Circuit Diagram (1988 - 6 Of 6)

G00080470

Courtesy of LAND ROVER NORTH AMERICA, INC.

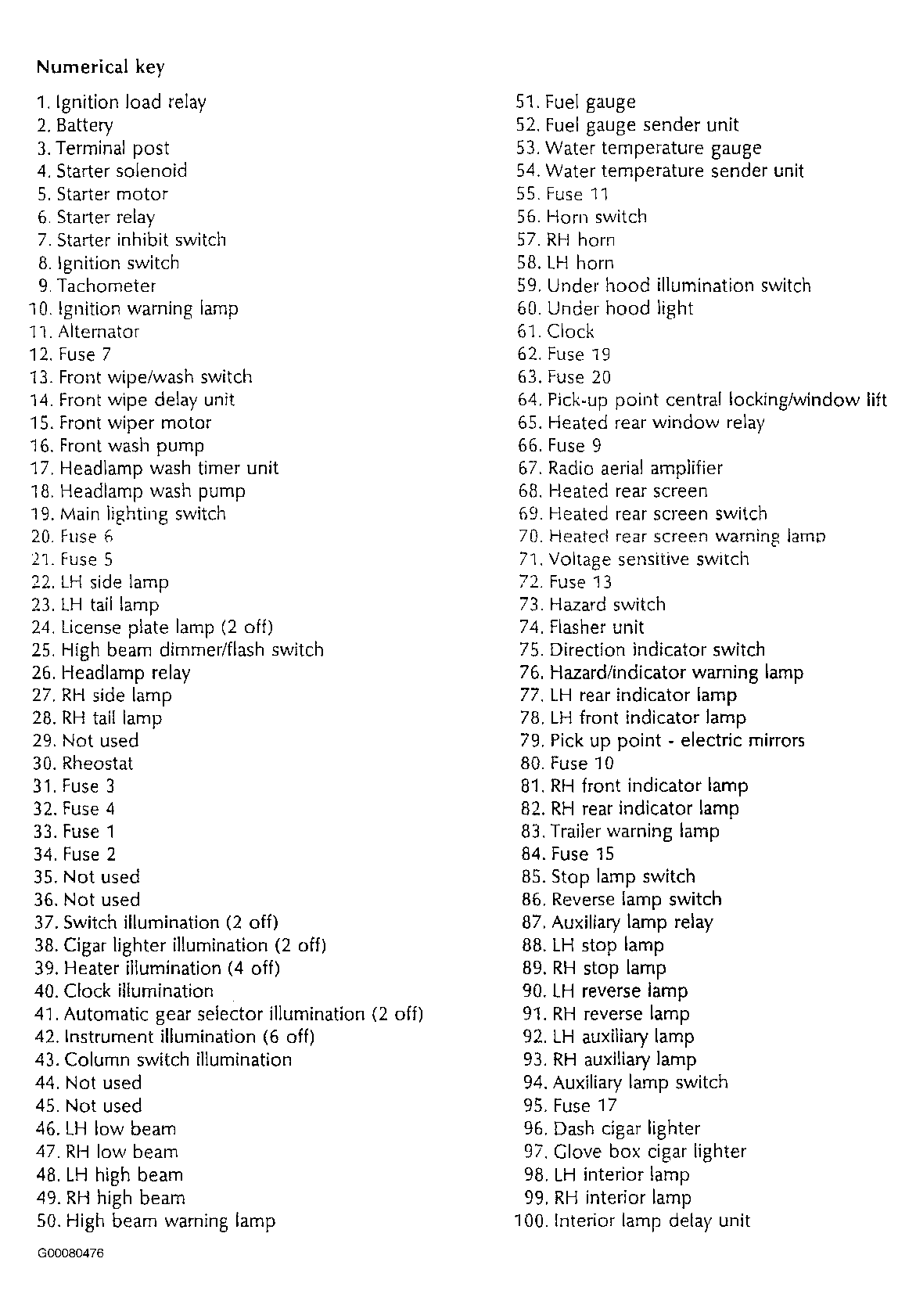

Fig 11: Main Circuit Diagram (1989 - 1 Of 6)

G00080476

Courtesy of LAND ROVER NORTH AMERICA, INC.

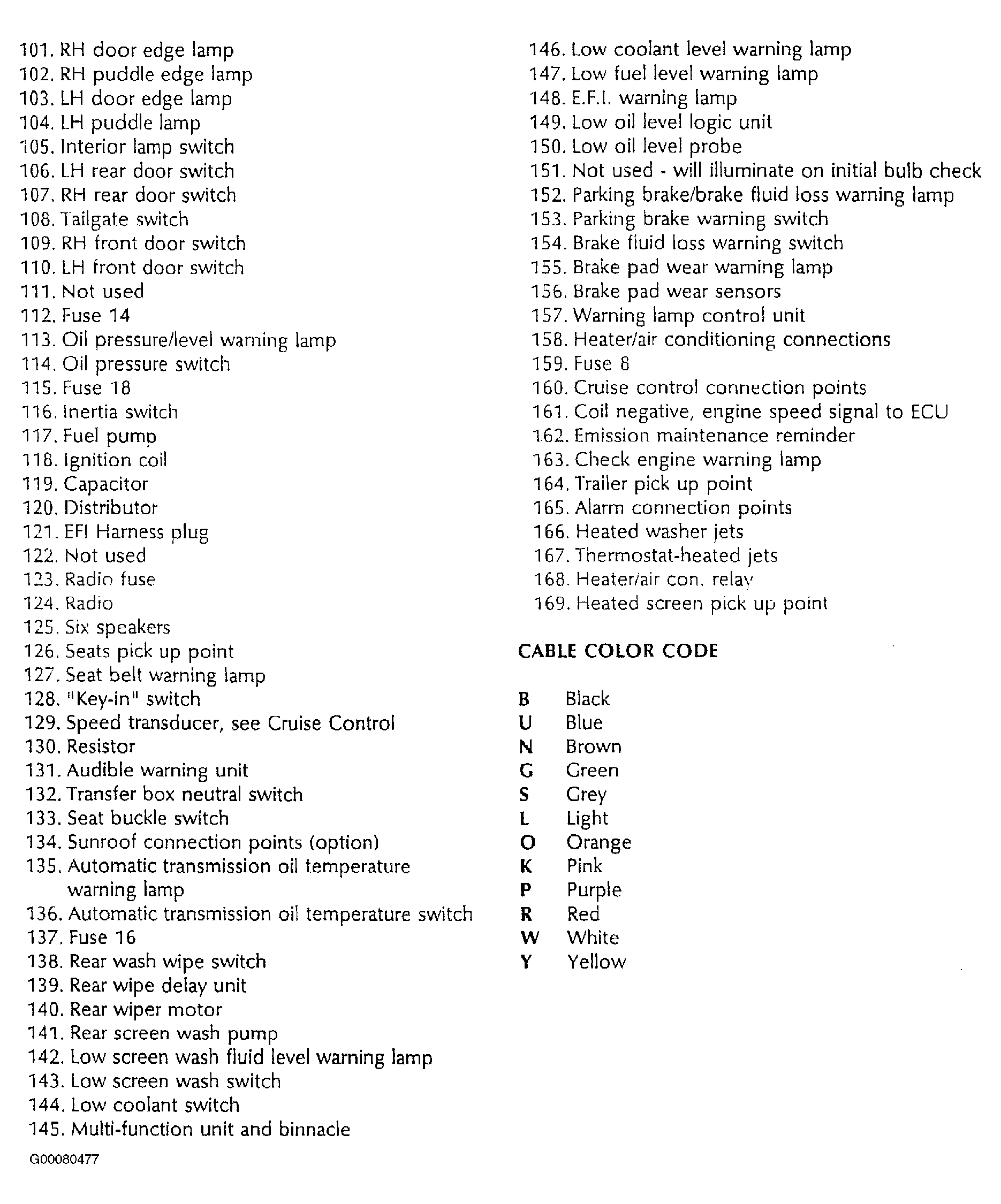

Fig 12: Main Circuit Diagram (1989 - 2 Of 6)

G00080477

Courtesy of LAND ROVER NORTH AMERICA, INC.

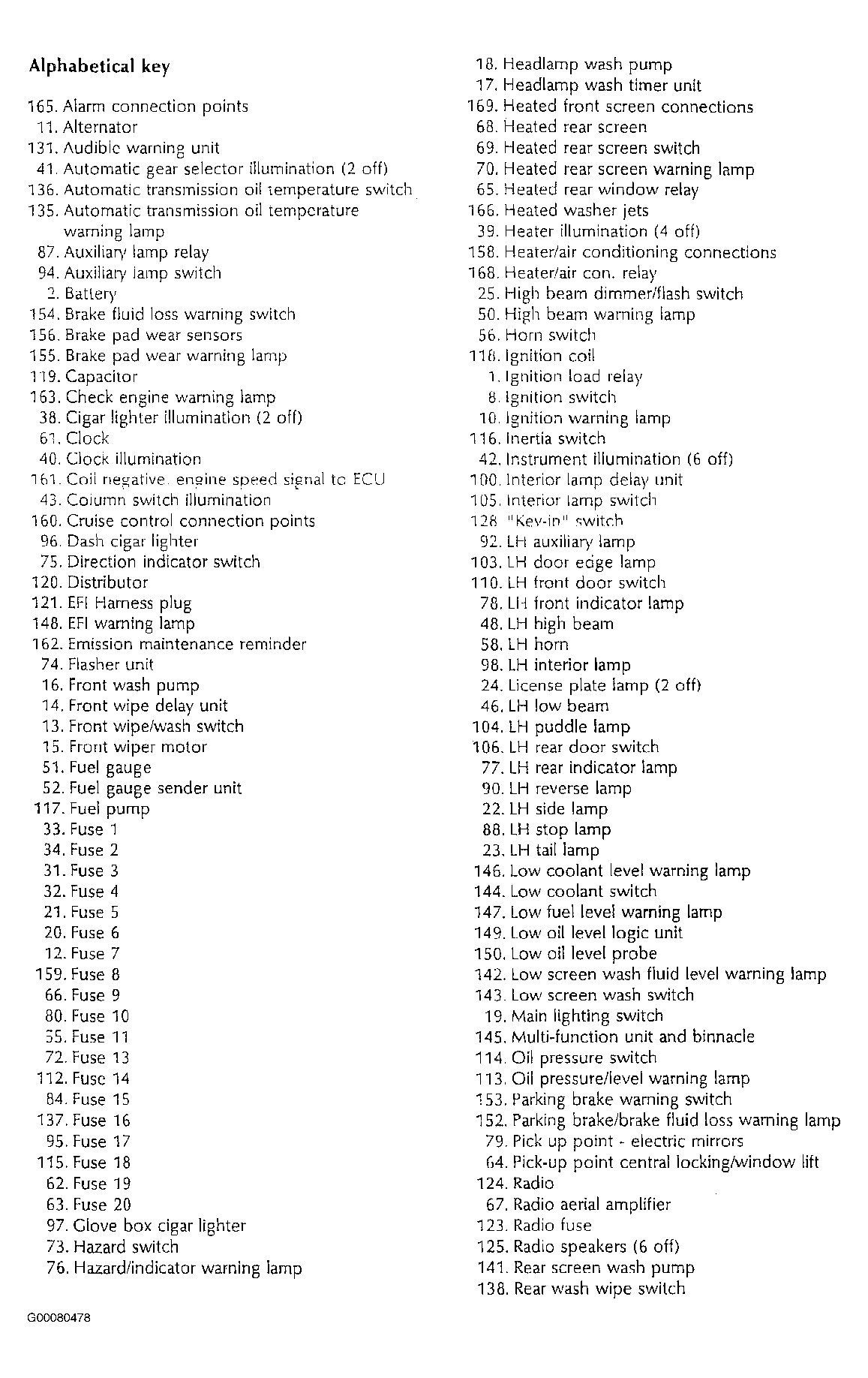

Fig 13: Main Circuit Diagram (1989 - 3 Of 6)

G00080478

Courtesy of LAND ROVER NORTH AMERICA, INC.

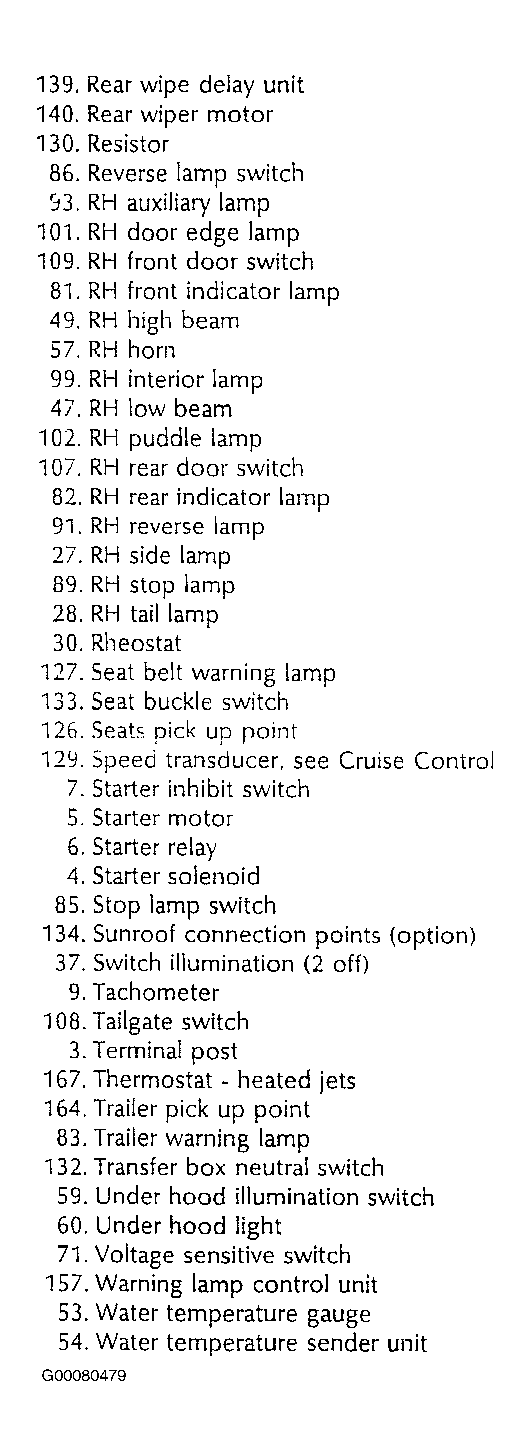

Fig 14: Main Circuit Diagram (1989 - 4 Of 6)

G00080479

Courtesy of LAND ROVER NORTH AMERICA, INC.

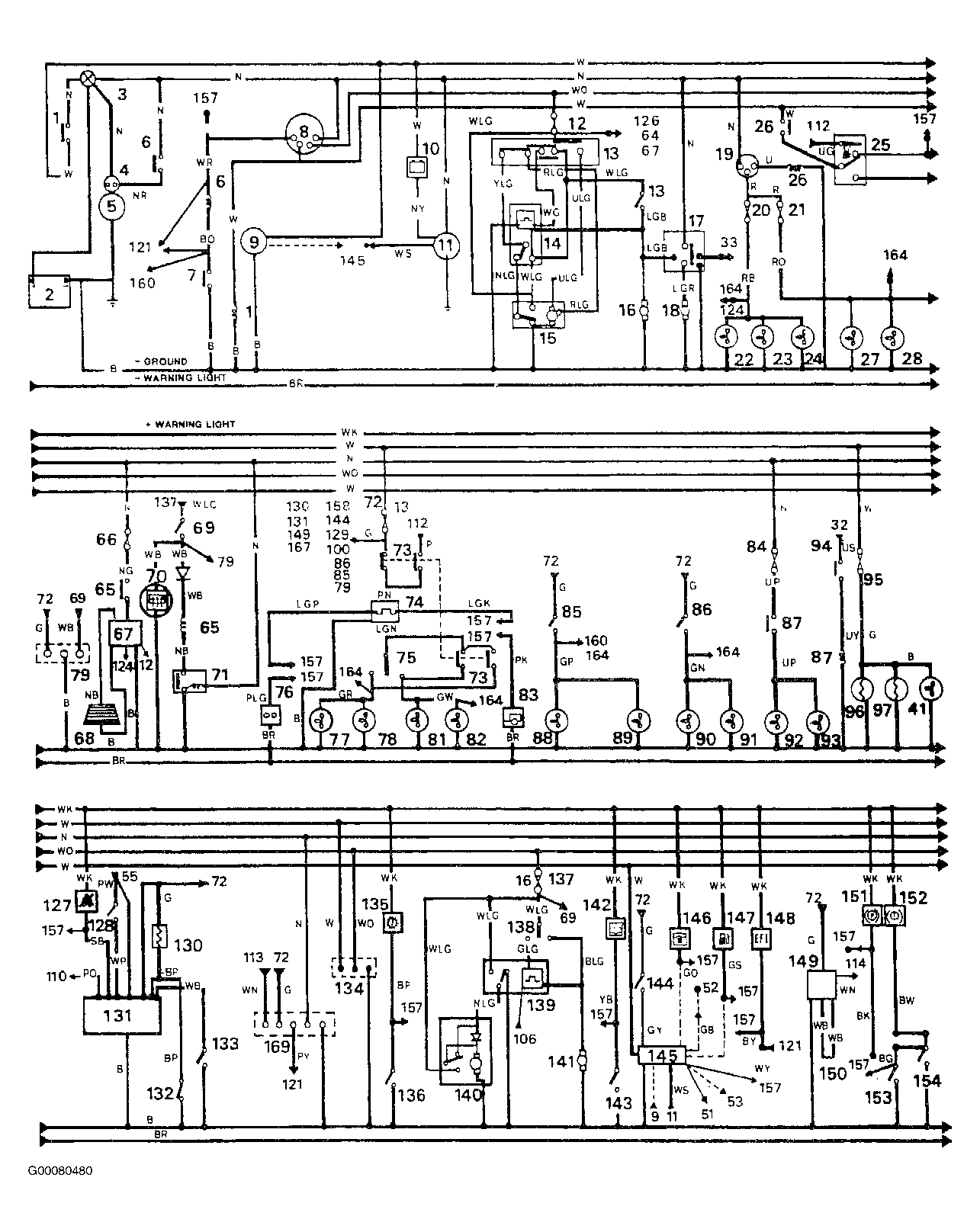

Fig 15: Main Circuit Diagram (1989 - 5 Of 6)

G00080480

Courtesy of LAND ROVER NORTH AMERICA, INC.

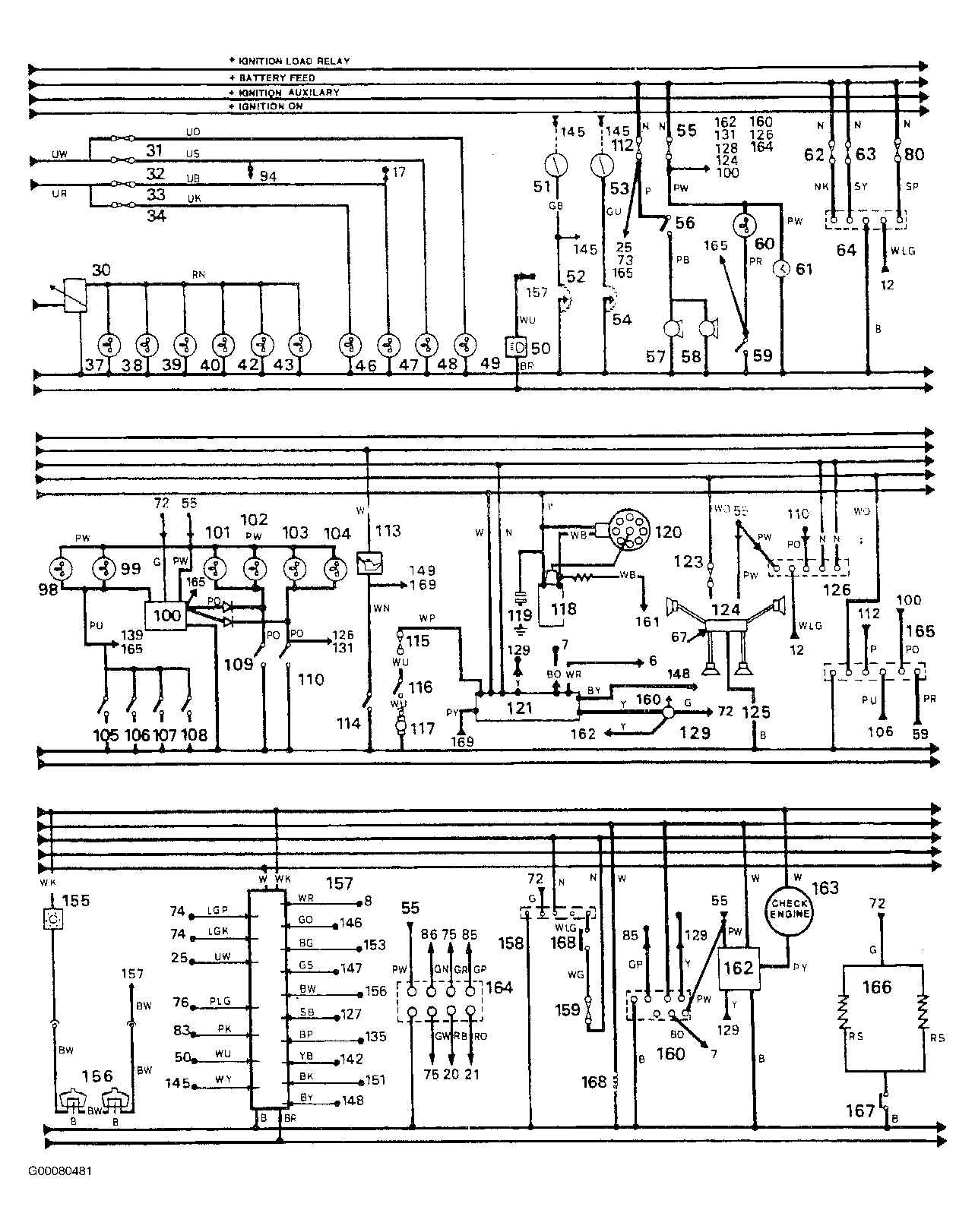

Fig 16: Main Circuit Diagram (1989 - 6 Of 6)

G00080481

Courtesy of LAND ROVER NORTH AMERICA, INC.
