Preliminary Inspection

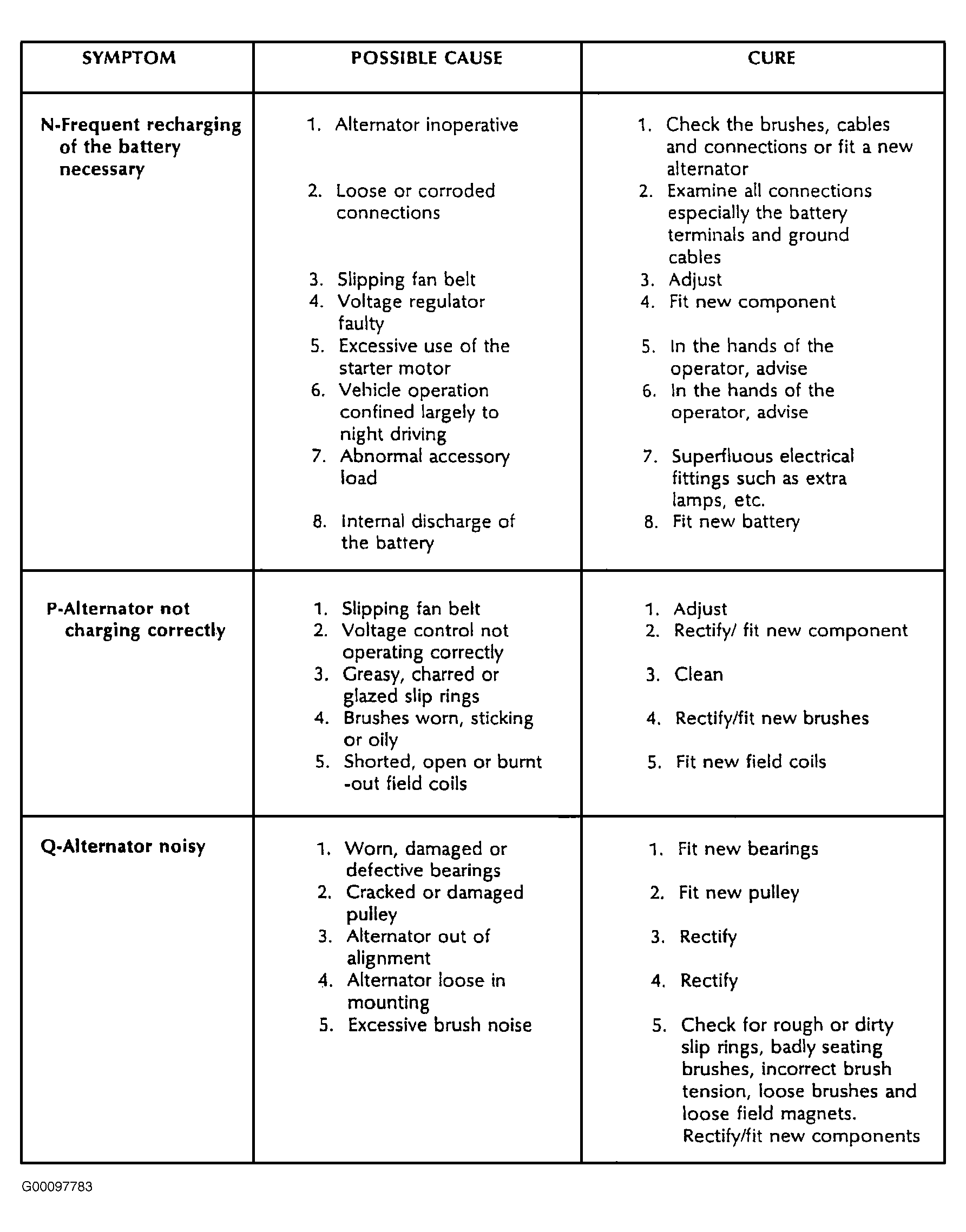

Verify customer complaint by operating system. Visually inspect for obvious signs of mechanical and electrical damage. Inspect for blown fuses and damaged relays. Inspect for loose or corroded connections, damaged wiring harnesses and/or switches. See Fig 1 . Check for a broken or partially broken wire inside insulation, which could cause system malfunction but prove good in a continuity/voltage check with system disconnected. Ensure any aftermarket electronic equipment is properly installed. If fault is found, repair as necessary. If no fault is found, perform charging system check. See CHARGING SYSTEM CHECK .
