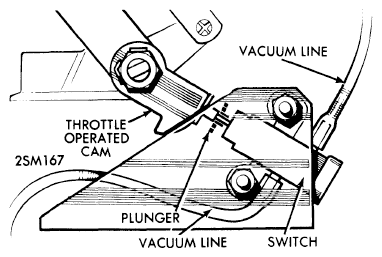

Throttle Controlled Vacuum Switch
Make sure that throttle linkage is in idle position and then push plunger fully into switch and hold in this position. Measure the clearance between plunger and cam on throttle linkage. Clearance must be 0.030". Adjust by loosening mounting bolts and moving switch and bracket in the required direction.
