Distributor Pump

NOTE: No adjustment or repair is permitted to distributor pump. If trouble is experienced, return pump to nearest CAV agent or dealer.

To time distributor pump use the following procedure:

Turn crankshaft in direction of rotation until flywheel timing marks are at 15° mark. Remove distributor pump.
Master spline on pump driving gear will be approximately 20° (4 o'clock position) from center line of engine viewed from front.
Insert timing gauge (No. 605863) into pump driving gear. Twist gauge in a clockwise direction to take up backlash and wear.

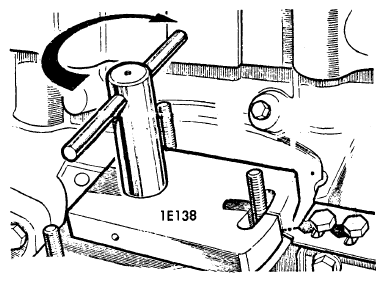

Fig 1: Timing Gauge
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
While maintaining this position, loosen timing pointer and align with notch on timing gauge. Tighten timing pointer bolts and remove gauge.

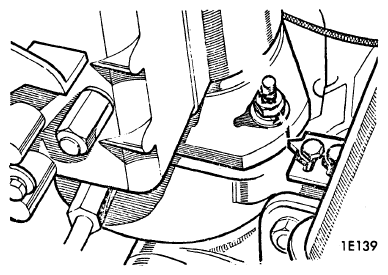

Fig 2: Distributor Pump Adjustment
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Match up master splines on pump driving gear and distributor pump gear. Install pump and align pump mark with timing pointer and tighten pump bolts.

NOTE: Should there be any fall-off of power during engine life, re-time distributor pump to compensate for drive gear wear.

Distributor Pump Specifications

CAV

DPA Type

Direction of Rotation

⁽¹⁾ Clockwise

Pump Timing

15° BTDC

Maximum Speed Setting (Sealed)

4200 eng. RPM

⁽¹⁾	Viewed from drive end.
