CAV Fuel Injection: Adjustments: Notes

NOTE: Absolute cleanliness must be maintained handling any part of fuel injection system.

NOTE: An engine stop control is used to cut off fuel when stopping engine. This control must be returned to running position before attempting to start engine.

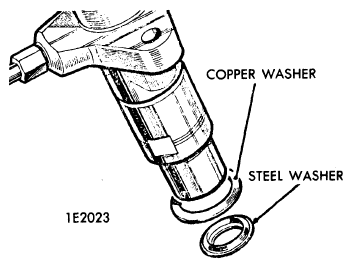

Fig 1: Fuel Injector

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
