Exhaust Emissions System - Fuel Evaporation: Maintenance

All components should be checked for leakage at 12, 500, 25, 000 37, 500 and 50, 000 miles. Replace parts if required. Replace carbon canister at 25, 000 and 50, 000 miles.

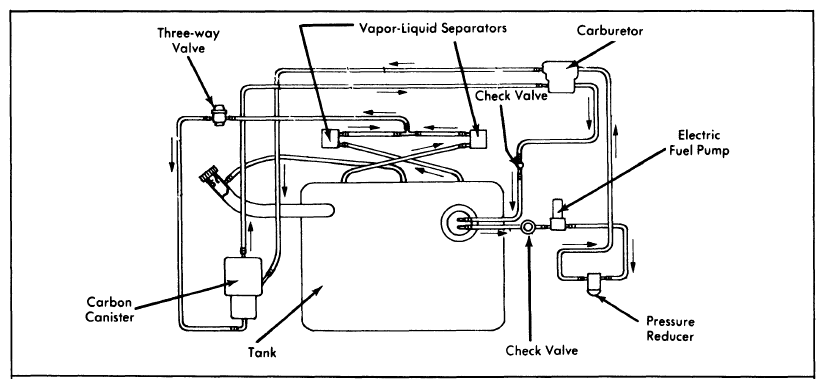

Fig 1: Fuel Evaporation Control System (Exc. Scorpion)

Courtesy of NOT AVAILABLE

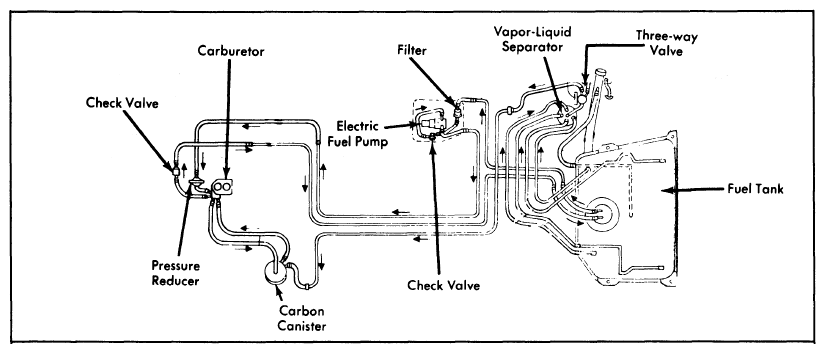

Fig 2: Fuel Evaporation Control System (Scorpion)

Courtesy of NOT AVAILABLE
