Description And Operation: Description
- The Alternator has built-in diodes, each rectifying AC current to DC current.
- Therefore, DC current appears at alternator "B" terminal.
- In addition, the charging voltage of this alternator is regulated by the battery voltage detection system.
- The alternator is regulated by the battery voltage detection system.

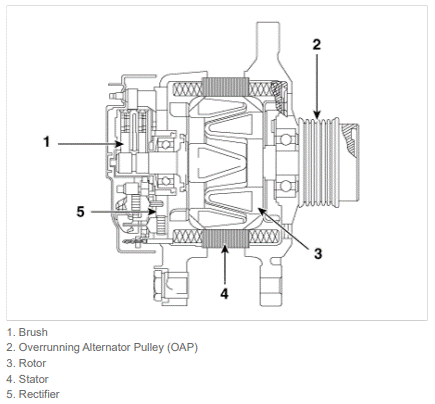

- The main components of the alternator are the rotor, stator, rectifier, capacitor brushes, bearings and V-ribbed belt pulley.
- The brush holder contains a built-in electronic voltage regulator.
