Description And Operation: Operation

A/T

How to use:

1. Engine Auto-Stop: D-range + brake pedal is pressed.

   Courtesy of KIA MOTORS AMERICA, INC.

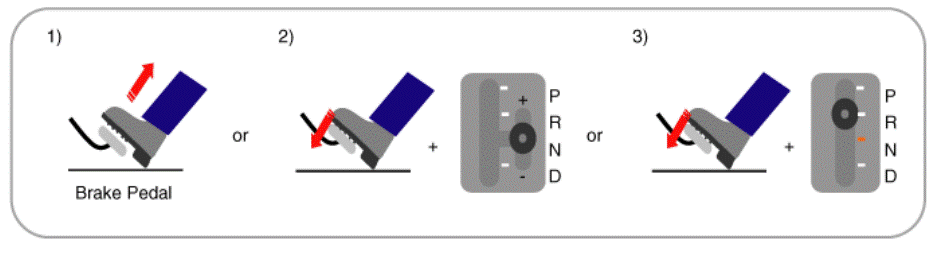

2. Engine Auto-Start
   1. Brake pedal is released.
   2. Brake pedal is pressed + Manual range (Sports mode)
   3. Brake pedal is pressed + R range

   Courtesy of KIA MOTORS AMERICA, INC.

   Courtesy of KIA MOTORS AMERICA, INC.

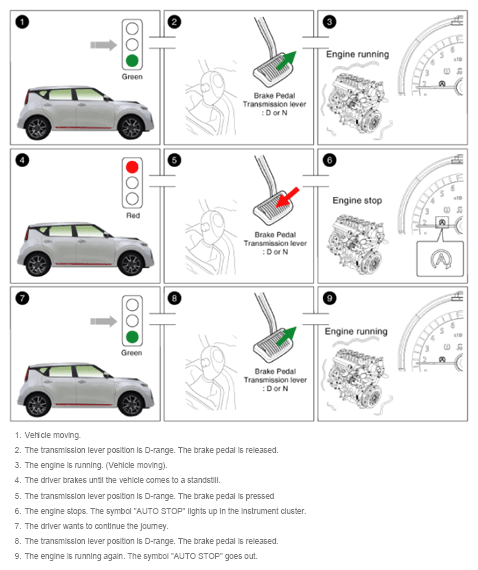

   1. Vehicle moving.
   2. The transmission lever position is D-range. The brake pedal is released.
   3. The engine is running. (Vehicle moving).
   4. The driver brakes until the vehicle comes to a standstill.
   5. The transmission lever position is D-range. The brake pedal is pressed
   6. The engine stops. The symbol "AUTO STOP" lights up in the instrument cluster.
   7. The driver wants to continue the journey.
   8. The transmission lever position is D-range. The brake pedal is released.
   9. The engine is running again. The symbol "AUTO STOP" goes out.

   M/T

   Courtesy of KIA MOTORS AMERICA, INC.

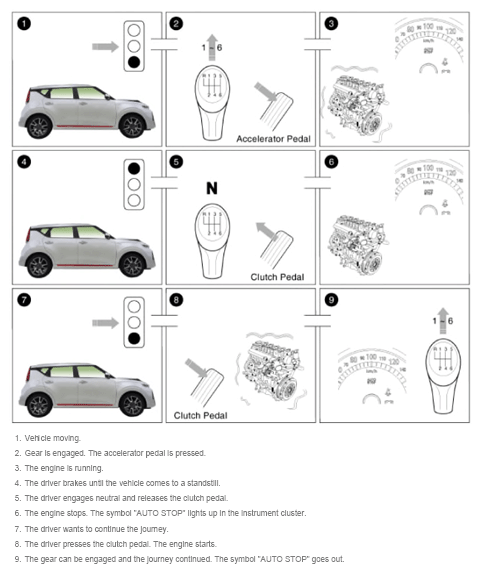

1. Vehicle moving.
2. Gear is engaged. The accelerator pedal is pressed.
3. The engine is running.
4. The driver brakes until the vehicle comes to a standstill.
5. The driver engages neutral and releases the clutch pedal. The driver brakes until the vehicle comes to a standstill.
6. The engine stops. The symbol "AUTO STOP" lights up in the instrument cluster.
7. The driver wants to continue the journey.
8. The driver presses the clutch pedal. The engine starts.
9. The gear can be engaged and the journey continued. The symbol "AUTO STOP" goes out.
