Repair Procedures: Removal

WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the battery negative (-) terminal.

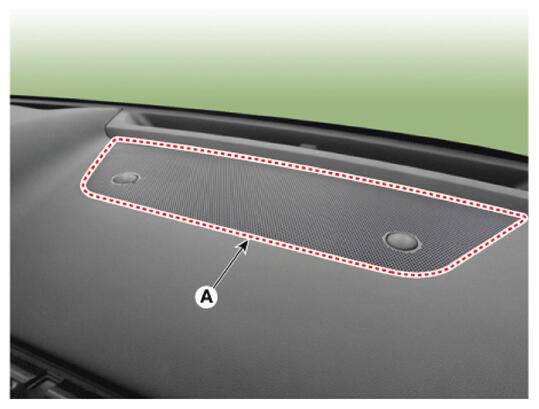

  2. Remove the crash pad center speaker grille (A).
    G16513103Courtesy of KIA MOTORS AMERICA, INC.

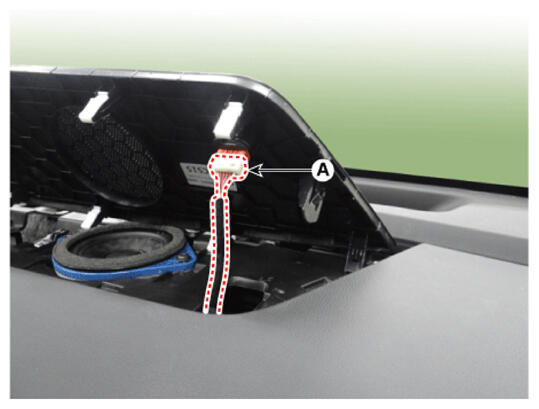

  3. Disconnect the auto light sensor connector (A).
    G16513104Courtesy of KIA MOTORS AMERICA, INC.

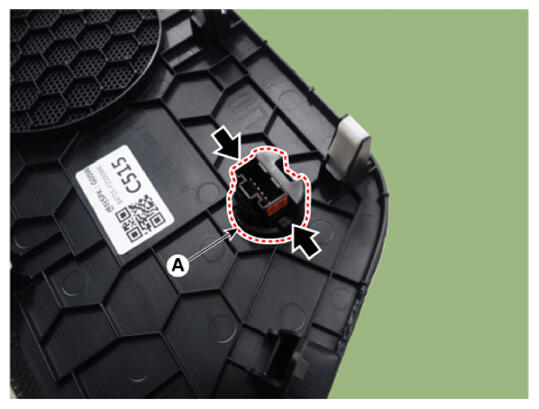

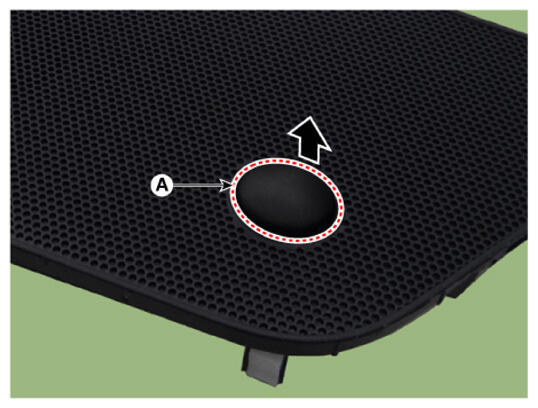

  4. Remove the auto light sensor (A).
    G16513105Courtesy of KIA MOTORS AMERICA, INC.
    G16513106Courtesy of KIA MOTORS AMERICA, INC.
