Removal And Installation: Removal

Disconnect the battery negative (-) terminal.
Remove the air cleaner.
(Refer to Engine Mechanical System - " AIR CLEANER REPAIR PROCEDURES ")

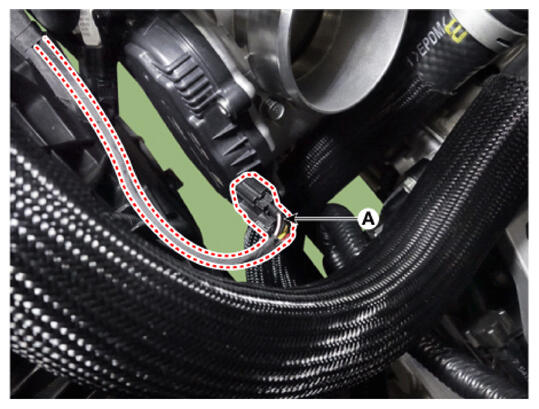

Disconnect the Electronic Throttle Control (ETC) module connector (A).

Courtesy of KIA MOTORS AMERICA, INC.

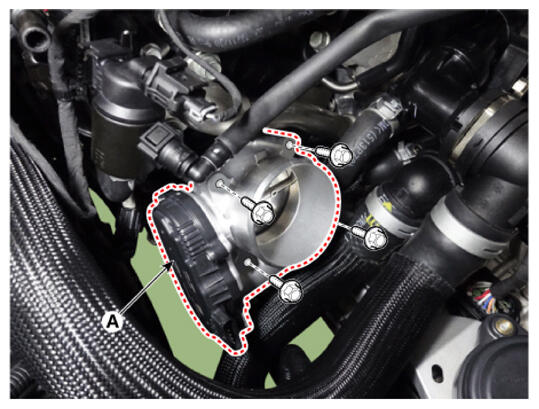

Remove the ETC module (A) after removing the mounting bolts.
Tightening torque:

9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.
