Components And Components Location: Component

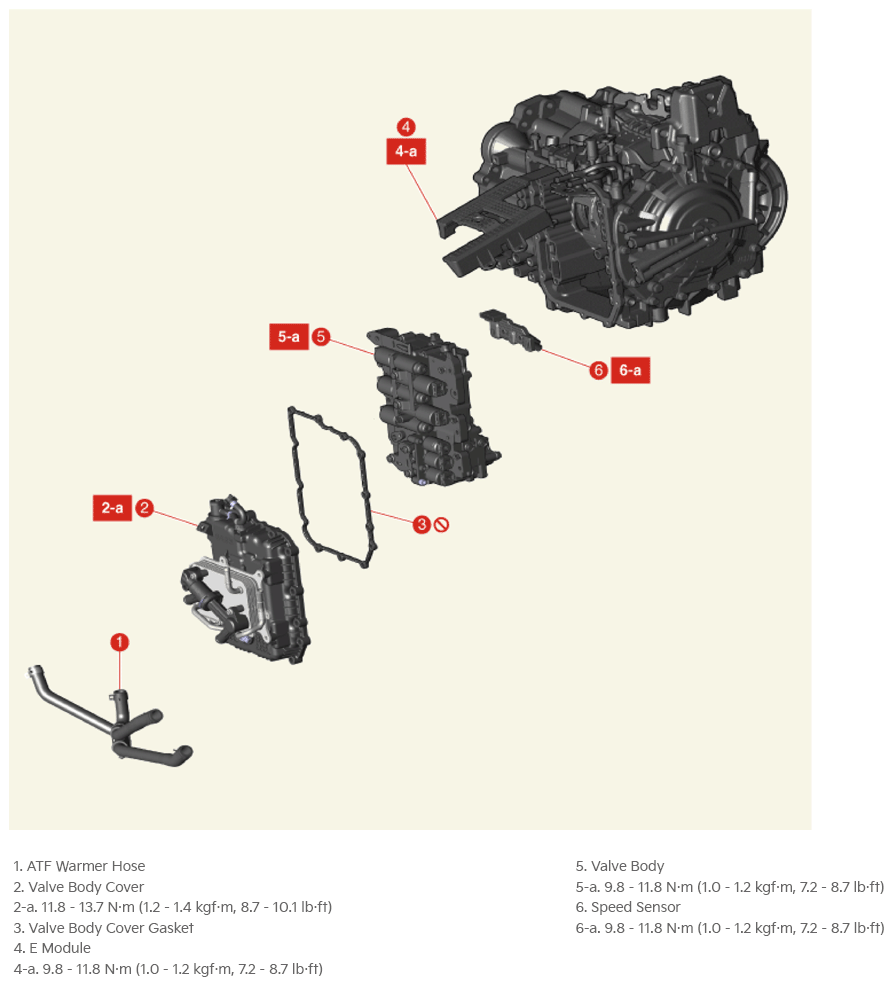

Fig 1: Speed Sensor Components Location With Torque Specification

G16477824

Courtesy of KIA MOTORS AMERICA, INC.
