Components And Components Location: Component

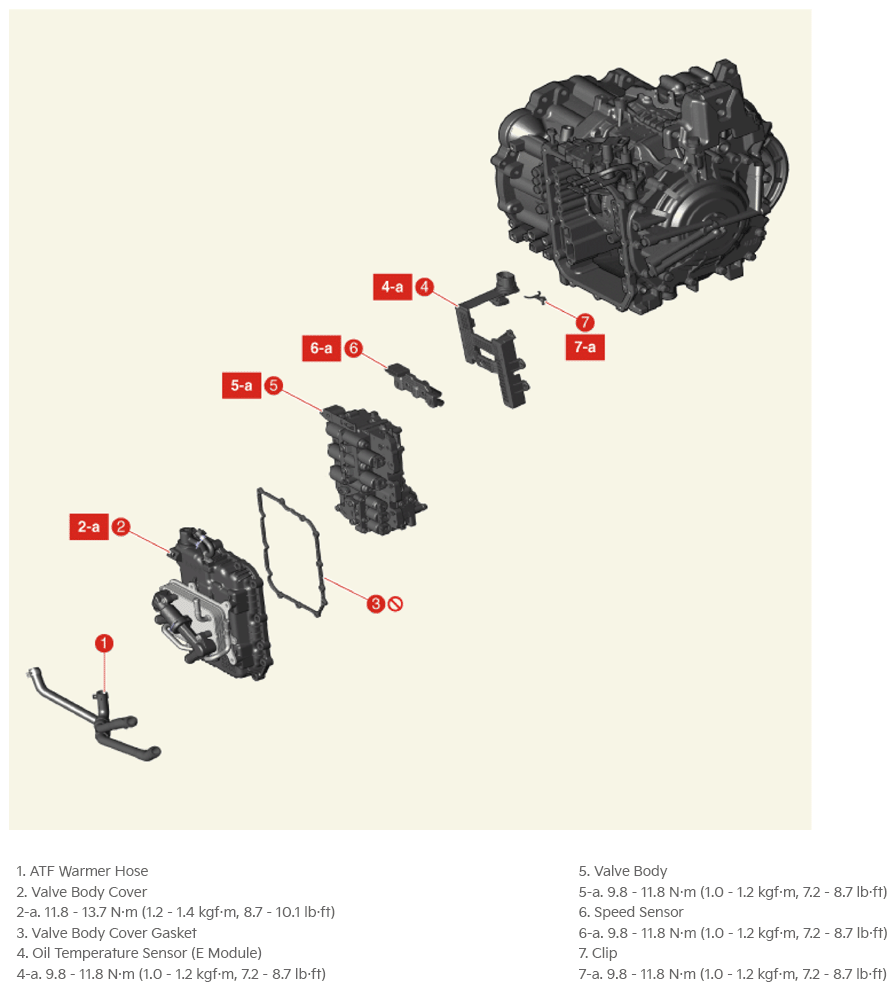

Fig 1: Oil Temperature Sensor (E-Module) Components Location With Torque Specification

G16477815

Courtesy of KIA MOTORS AMERICA, INC.
