Removal And Installation: Installation

  1. Install in reverse order of removal.
    NOTE:

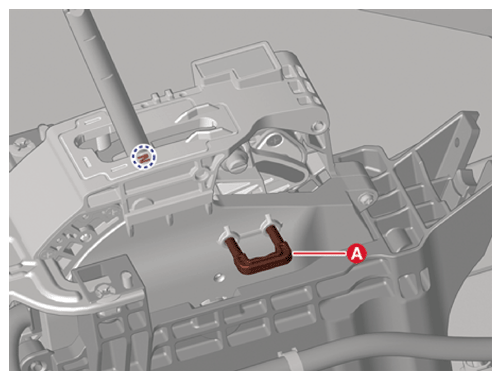

    • Insert "N" range fixing pin (A) after checking shift lever and the manual control lever are in the "N" range before installation.
      G16427354Courtesy of KIA MOTORS AMERICA, INC.

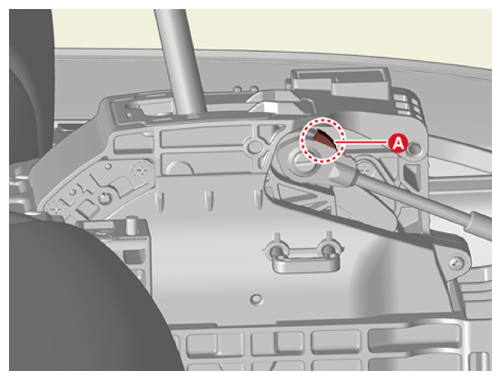

    • Install the shift cable after checking the direction of tab (A) to prevent incorrect assembly.
      G16427355Courtesy of KIA MOTORS AMERICA, INC.

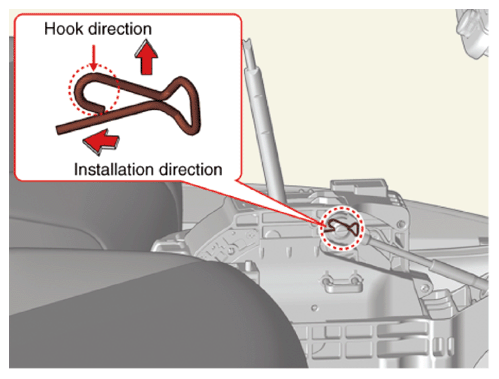

    • Mind the installation direction of snap pin and install the snap pin with the hook facing upward.
      G16427356Courtesy of KIA MOTORS AMERICA, INC.

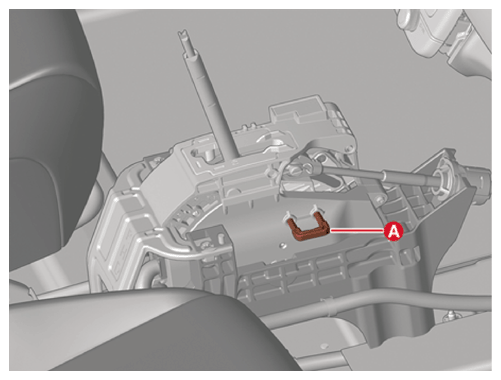

    • Make sure to get rid of "N" range fixing pin (A) after installing the shift lever assembly.
      G16427357Courtesy of KIA MOTORS AMERICA, INC.
