Removal And Installation: Installation

Install in the reverse order of removal.

NOTE:

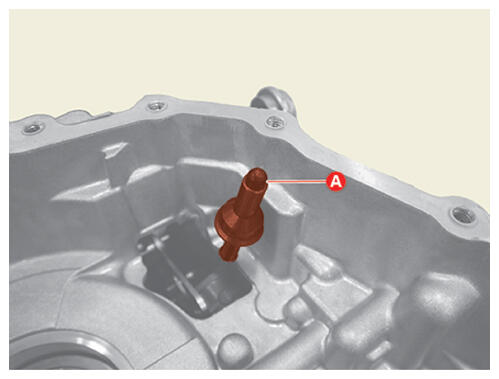

Before mounting, replace the parking rod cam if there are excessive flaws on the outside of the parking rod cam (A).

Courtesy of KIA MOTORS AMERICA, INC.

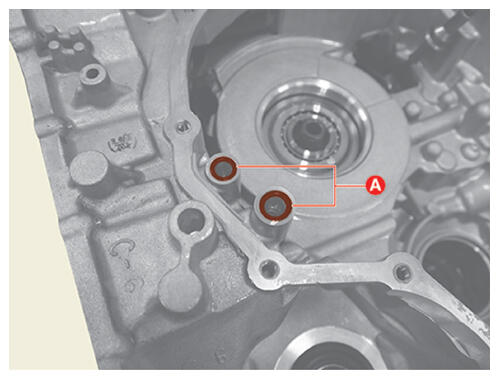

Make sure that there is an O-rings (A) on the side of the case.

Courtesy of KIA MOTORS AMERICA, INC.

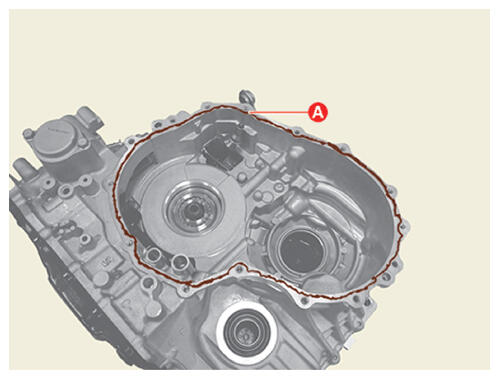

Standard sealant: LOCTITE FMD-5460/5480, THREE-BOND TB1281B/1216C

Bead diameter: 1.5 - 1.7 mm

Courtesy of KIA MOTORS AMERICA, INC.

Check the IVTF level after refilling the IVT with fluid.
(Refer to Transmission Gear Oil - " IVT 2.0L HYDRAULIC SYSTEM - LUBRICANT ")
