Removal And Installation: Removal

  1. Remove the air cleaner assembly.

    (Refer to Engine Mechanical System - " AIR CLEANER REMOVAL AND INSTALLATION  ")

  2. Remove the battery and battery tray.

    (Refer to Engine Electrical System - " BATTERY REMOVAL AND INSTALLATION  ")

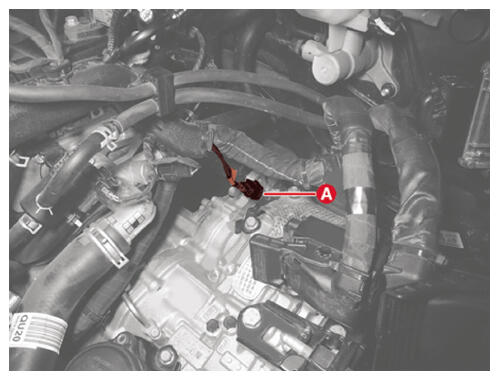

  3. Disconnect the driven pulley speed sensor connector (A).
    G16427304Courtesy of KIA MOTORS AMERICA, INC.

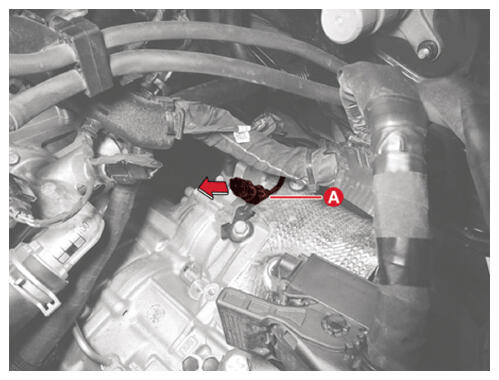

  4. Remove the driven pulley speed sensor connector (A) from the bracket.
    G16427305Courtesy of KIA MOTORS AMERICA, INC.

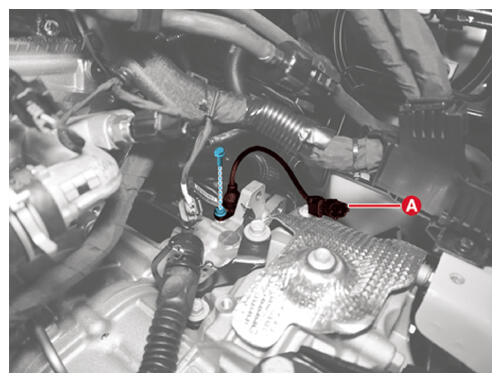

  5. Remove the driven pulley speed sensor (A) after removing the bolt.

    Tightening torque:

    9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb.ft)

G16427306Courtesy of KIA MOTORS AMERICA, INC.
