Removal And Installation: Removal

Align the steering wheel straight.
Disconnect the negative (-) terminal of the battery.
Remove the driver airbag (DAB) module and clock spring.
(Refer to Restraint - "DRIVER AIRBAG (DAB) MODULE AND CLOCK SPRING ")

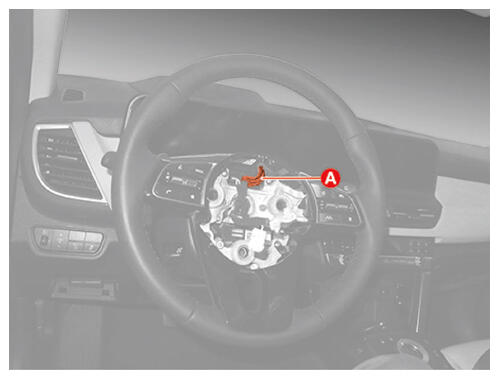

Disconnect the steering wheel connector (A).

Courtesy of KIA MOTORS AMERICA, INC.

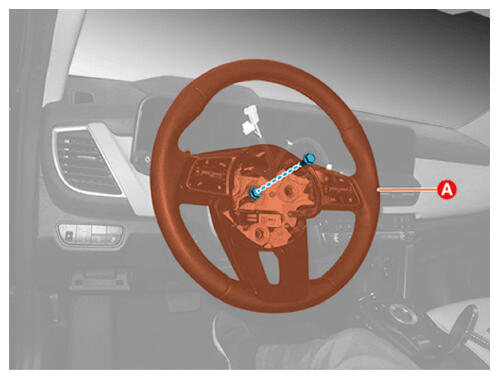

Remove the steering wheel (A) after removing the bolt.

Tightening torque:

44.1 - 49.0 N.m (4.5 - 5.0 kgf.m, 32.5 - 36.2 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

NOTE:

Do not use a hammer when removing steering wheel, the steering column may be damaged if using a hammer.
Do not reuse the steering wheel bolt.

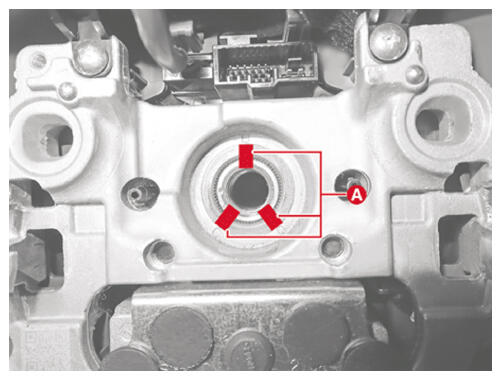

Mark the 3 points (A) at the steering wheel and column shaft installation point.

Courtesy of KIA MOTORS AMERICA, INC.
