Disassembly And Reassembly: Disassembly

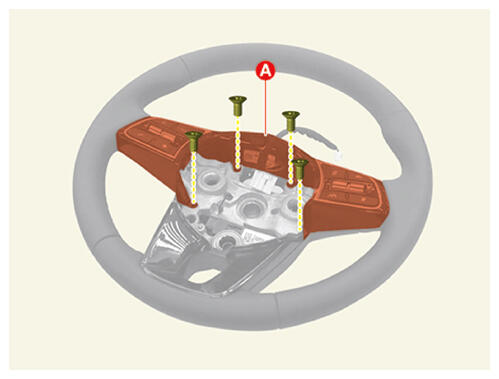

  1. Remove the Steering Wheel Remote Control (SWRC) switch and bezel (A).
    G16424827Courtesy of KIA MOTORS AMERICA, INC.

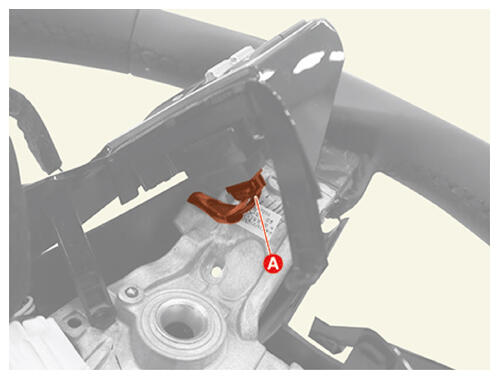

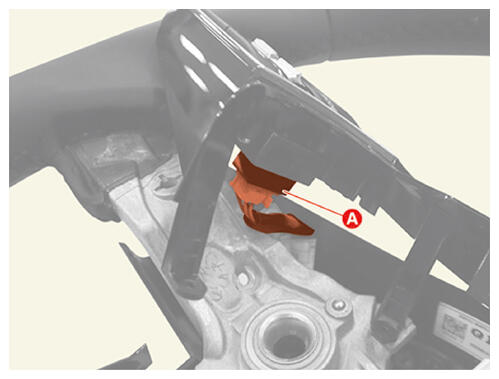

  2. Disconnect the SWRC switch connectors (A).
    G16424828Courtesy of KIA MOTORS AMERICA, INC.
    G16424829Courtesy of KIA MOTORS AMERICA, INC.

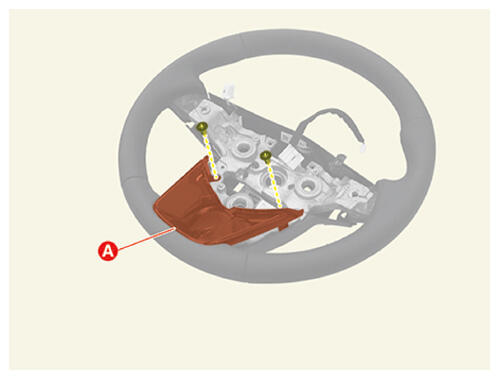

  3. Remove the steering wheel lower bezel (A) after removing the screws.
    G16424830Courtesy of KIA MOTORS AMERICA, INC.

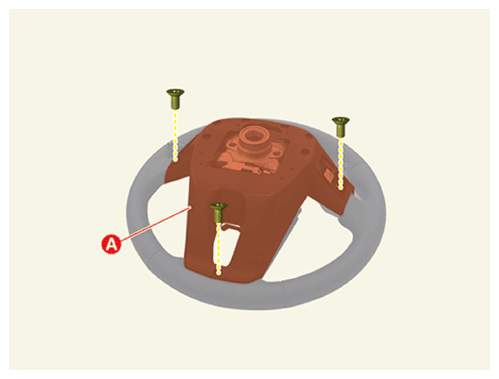

  4. Remove the steering wheel lower cover (A) after removing the screws.
    G16424831Courtesy of KIA MOTORS AMERICA, INC.

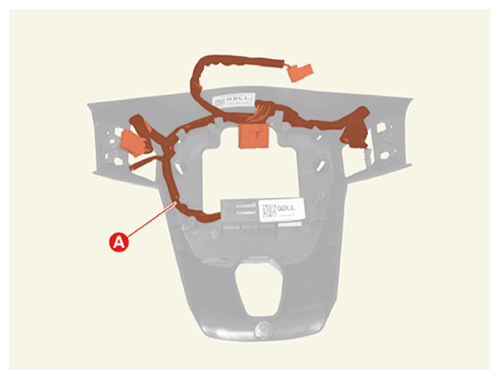

  5. Remove the extension wire (A) from the steering wheel lower cover.
    G16424832Courtesy of KIA MOTORS AMERICA, INC.

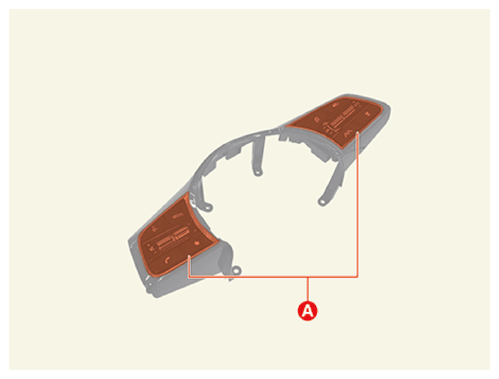

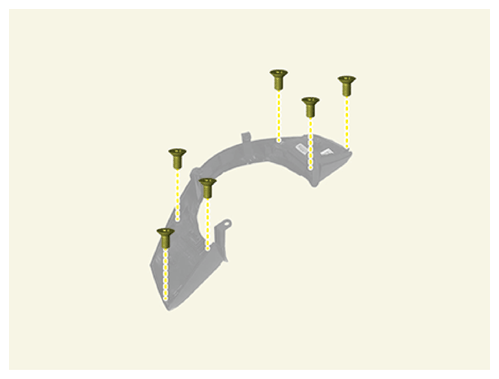

  6. Remove the SWRC (A) after removing the screws.
    G16424833Courtesy of KIA MOTORS AMERICA, INC.
    G16424834Courtesy of KIA MOTORS AMERICA, INC.
