Removal And Installation: Removal

Disconnect the battery negative (-) terminal.
Remove the engine cover.
(Refer to Engine Mechanical System - " ENGINE COVER ")

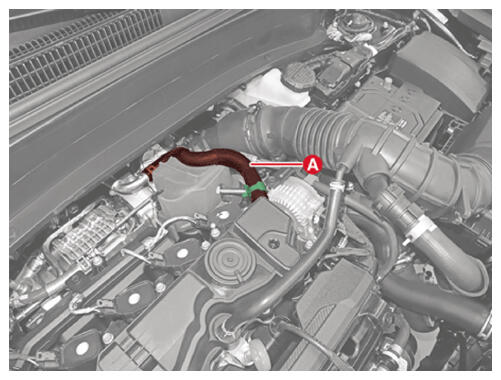

Remove the hose (A).

Courtesy of KIA MOTORS AMERICA, INC.

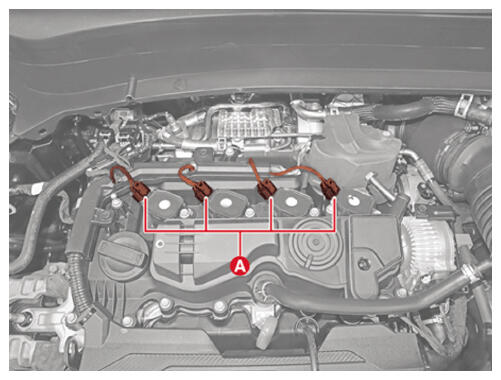

Disconnect the ignition coil connectors (A).

Courtesy of KIA MOTORS AMERICA, INC.

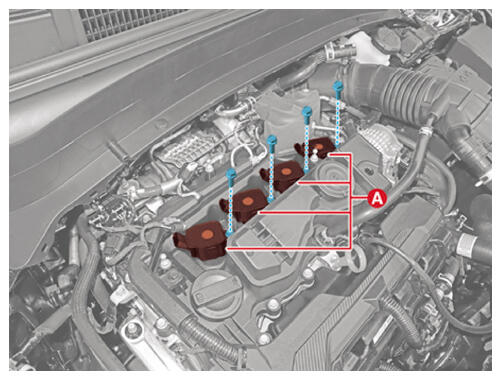

Remove the ignition coils (A) after removing the bolts.
Tightening torque:

9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.
