Electronic Throttle Control (ETC) Motor

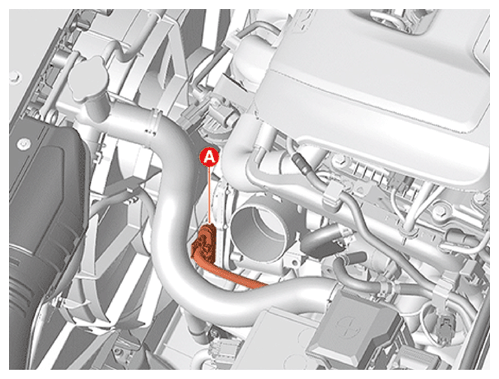

  1. Disconnect the Electronic Throttle Control (ETC) connector (A).
    G16427096Courtesy of KIA MOTORS AMERICA, INC.

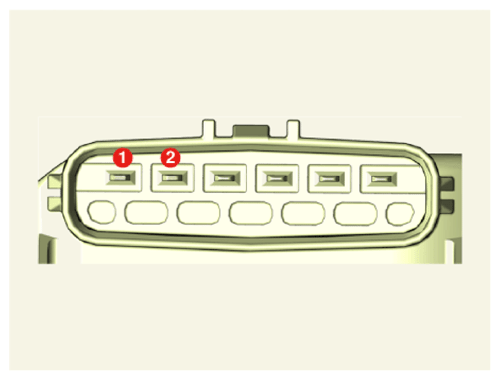

  2. Measure resistance between the ETC module terminals 1 and 2 after disconnecting the connector.

    Coil resistance (Ω):  0.3 - 100 [20°C (68°F)]

    G16427097Courtesy of KIA MOTORS AMERICA, INC.
    Terminal Function
    1 Motor (-)
    2 Motor (+)
