Removal And Installation: Installation

  1. Install in reverse order of removal.
    NOTE:
    • Install the Variable Force Solenoid (VFS) to the specified torque.
    • If the VFS is dropped, it may cause internal damage. (Do not reuse)

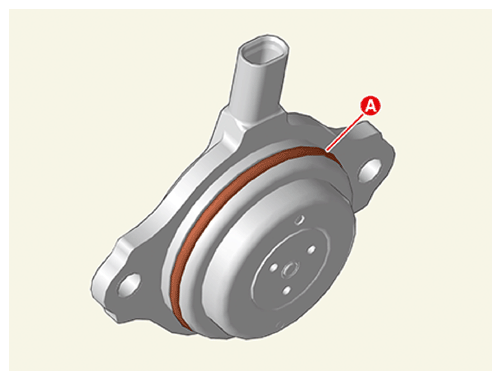

    • When installing the VFS, apply the engine oil to the O-ring (A).
    G16423678Courtesy of KIA MOTORS AMERICA, INC.
