Removal And Installation: Removal

Remove the crash pad center garnish.
(Refer to Body - " CRASH PAD GARNISH ")
Remove the steering column shroud panel.
(Refer to Body - " STEERING COLUMN SHROUD PANEL ")

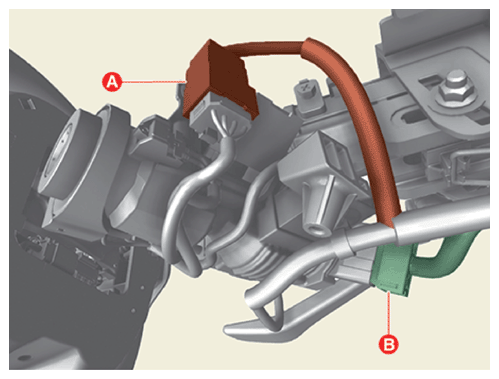

Disconnect the key warning switch connector (A) and ignition switch connector (B).

Courtesy of KIA MOTORS AMERICA, INC.

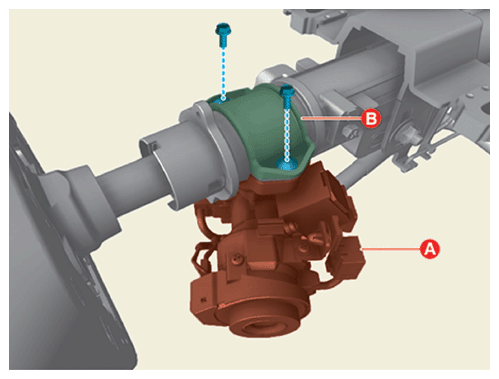

Remove the ignition switch (A) by removing the clamp (B) after removing the bolts.
Tightening torque:

6.9 - 12.7 N.m (0.7 - 1.3 kgf.m, 5.1 - 9.4 lb.ft.)

Courtesy of KIA MOTORS AMERICA, INC.
