Vehicle S/W Management

Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS to "Data Link Connector (DLC)".
  2. Perform "Vehicle S/W Management" of concerned component with KDS.

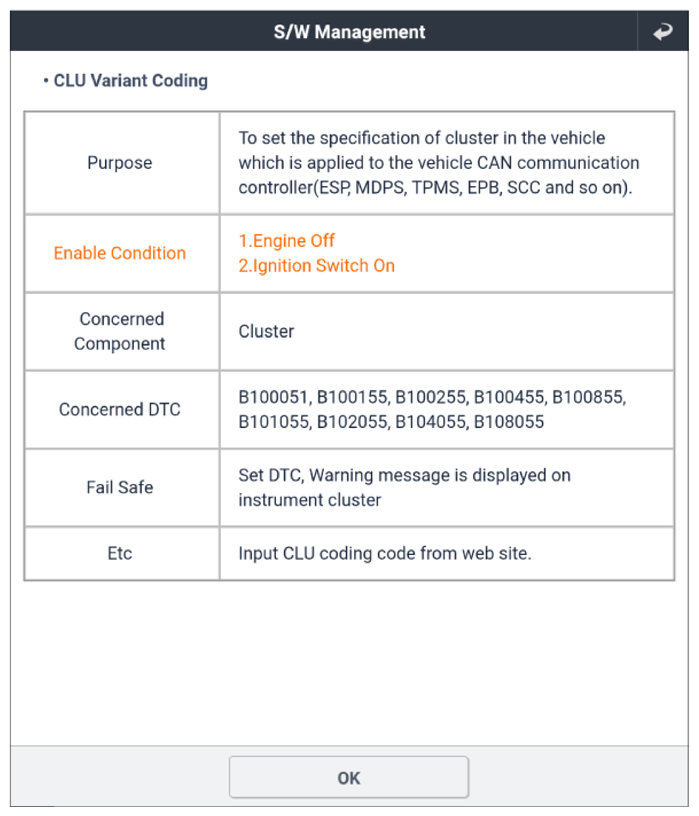

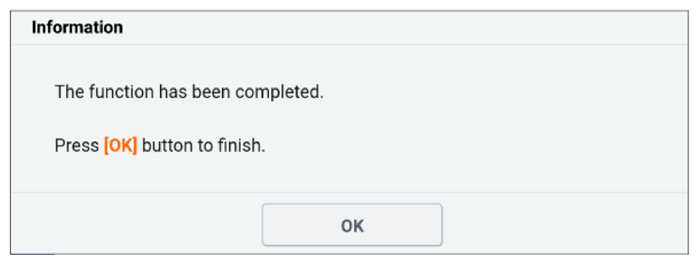

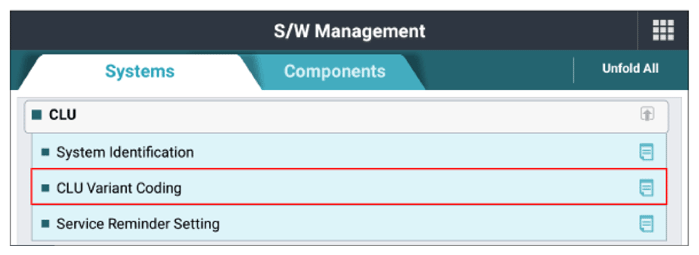

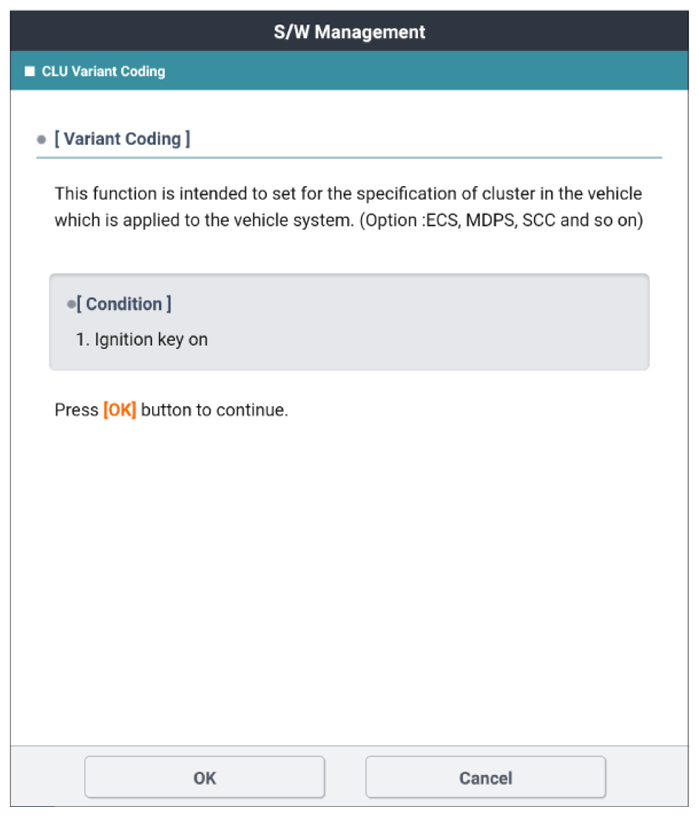

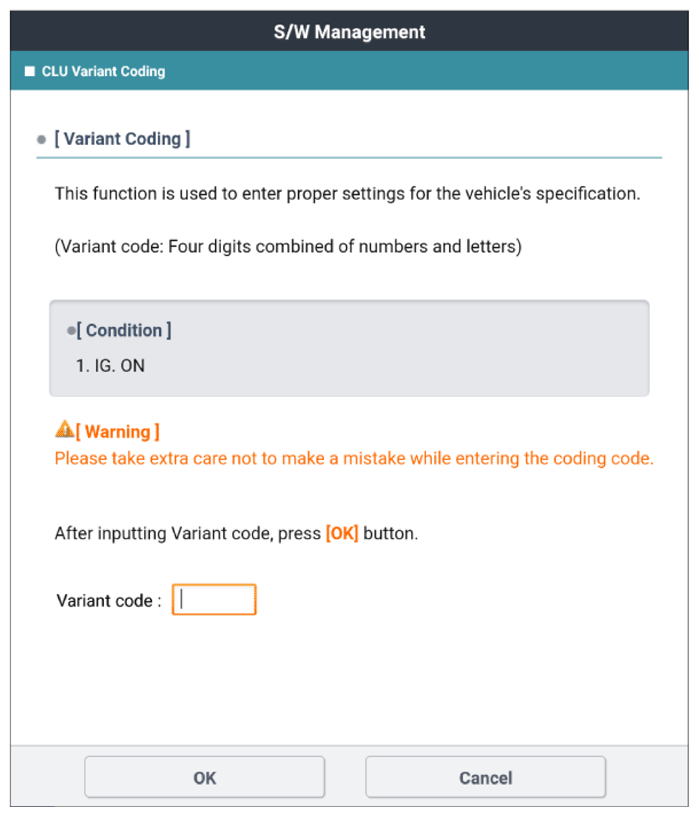

 Fig.1 to 5
G16429663Courtesy of KIA MOTORS AMERICA, INC.
G16429664Courtesy of KIA MOTORS AMERICA, INC.
G16429665Courtesy of KIA MOTORS AMERICA, INC.
G16429666Courtesy of KIA MOTORS AMERICA, INC.
G16429667Courtesy of KIA MOTORS AMERICA, INC.
