Vehicle S/W Management

Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS to "Data Link Connector (DLC)".
  2. Perform "Vehicle S/W Management" of concerned component with KDS.
 Fig.1 to 5

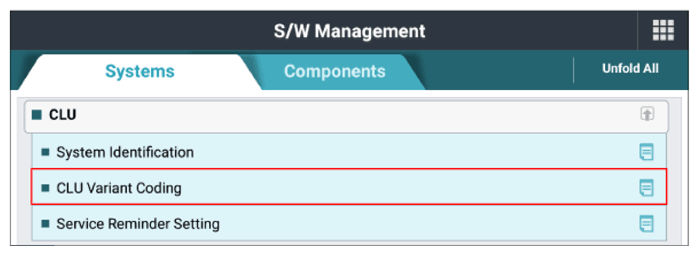

G16429583Courtesy of KIA MOTORS AMERICA, INC.

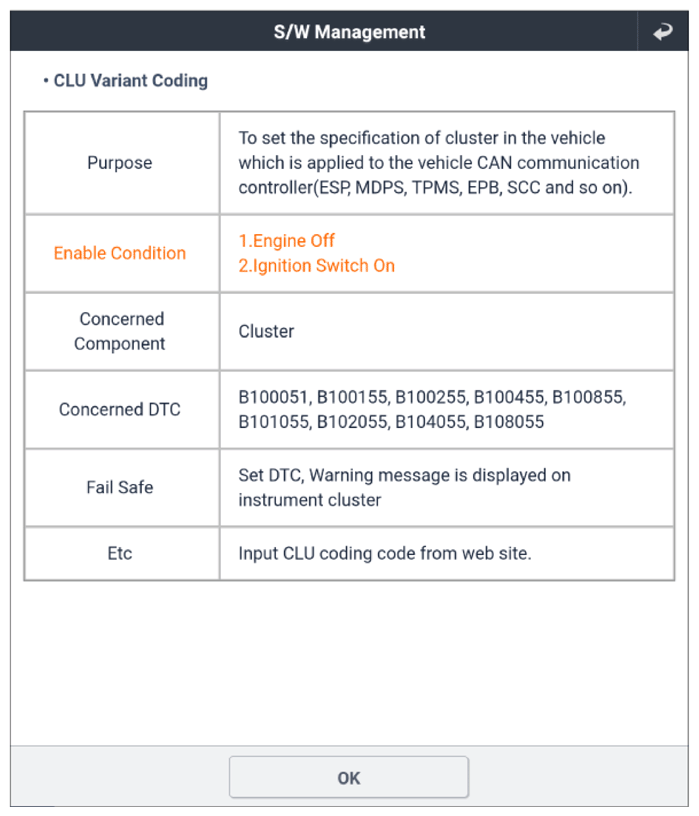

G16429584Courtesy of KIA MOTORS AMERICA, INC.

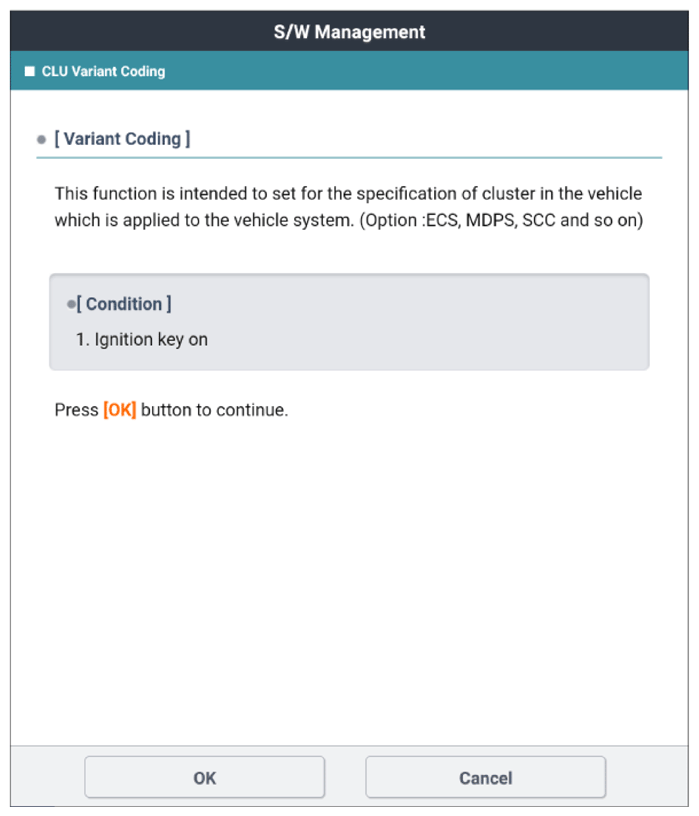

G16429585Courtesy of KIA MOTORS AMERICA, INC.

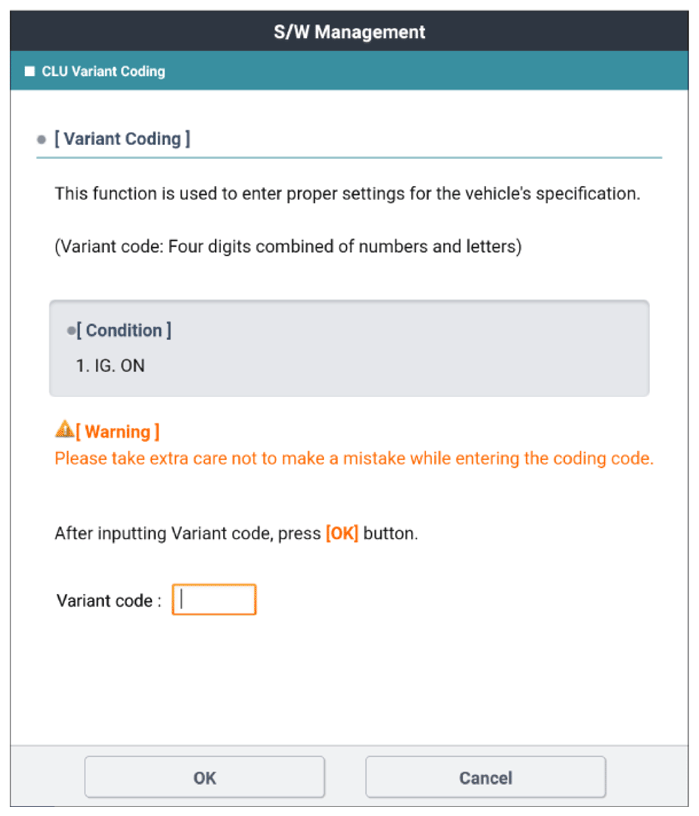

G16429586Courtesy of KIA MOTORS AMERICA, INC.

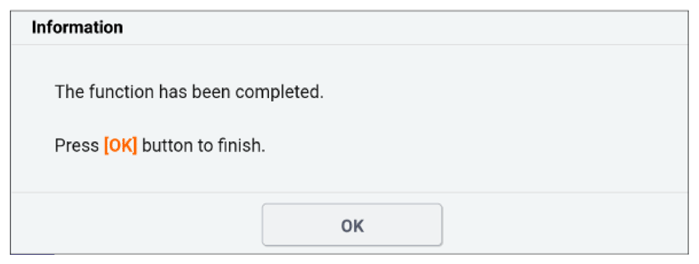

G16429587Courtesy of KIA MOTORS AMERICA, INC.
