Components And Components Location: Component

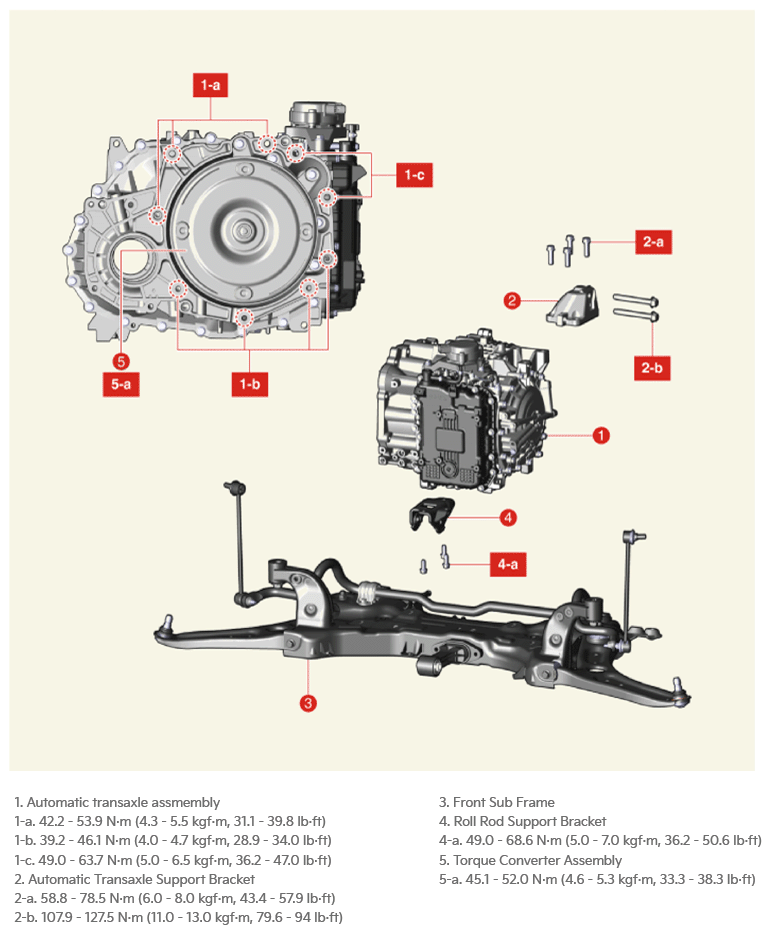

Fig 1: Automatic Transaxle Assembly Components Location With Torque Specifications

G16423851

Courtesy of KIA MOTORS AMERICA, INC.
