Connector Connection Condition Test

  1. Disconnect the battery negative (-) terminal.
  2. Remove the engine cover.

    (Refer to Engine Mechanical System - " ENGINE COVER  ")

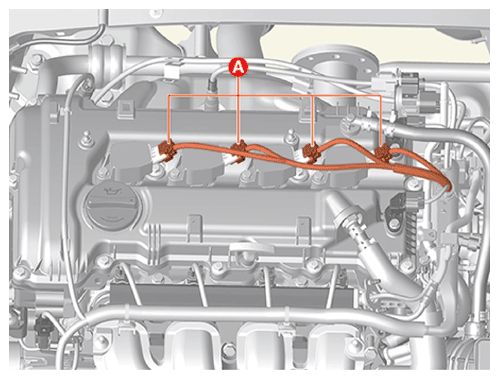

  3. Re-connect the ignition coil connector (A) after disconnecting the ignition coil connector.
    G16426942Courtesy of KIA MOTORS AMERICA, INC.
  4. Install the engine cover.

    (Refer to Engine Mechanical System - " ENGINE COVER  ")

  5. Connect the battery negative (-) terminal.
  6. Perform the driving test after deleting the DTC code.

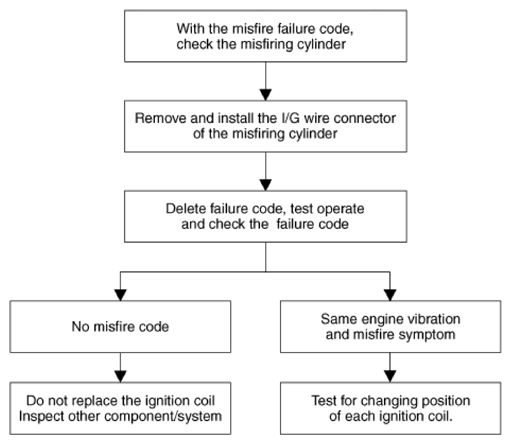

    G16426943Courtesy of KIA MOTORS AMERICA, INC.
