Fuel Delivery System - 1.6L
>>
Injector
>>
Components And Components Location
>>
Component Location

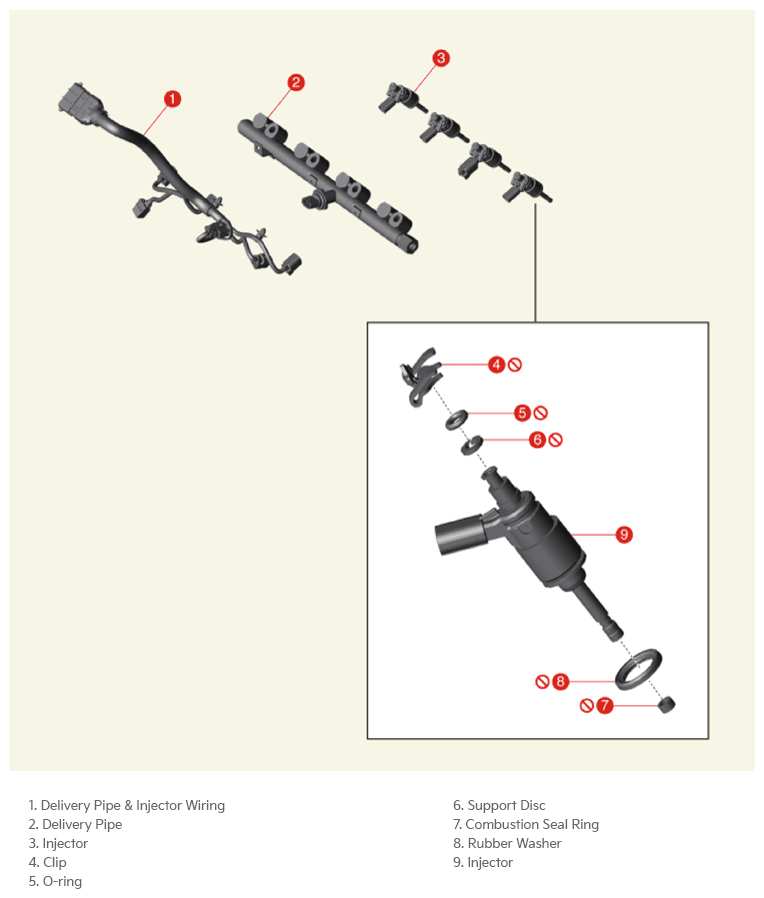

Component Location

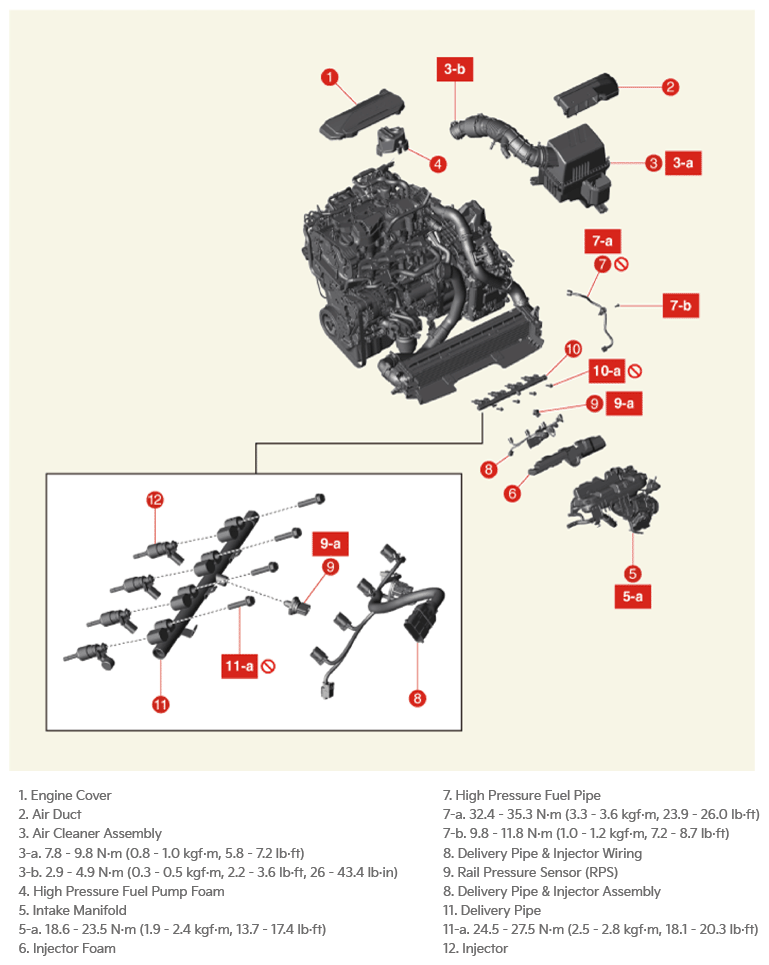

Fig 1: Injector Components Location With Torque Specifications
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
